Remove Paper from the TTF

About this task

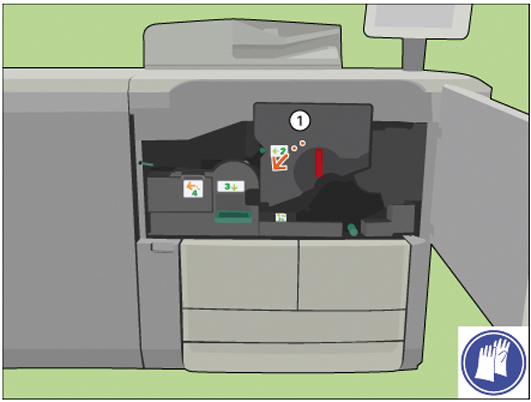

The control panel will indicate when paper must be removed from the TTF.

When the control panel displays the message [Touch Next to unlock the door.], touch [Next].

Wait until the printer is turned off.
Put on the heat-resistant gloves.

Heat-resistant gloves

Socket wrench

New spiral cleaner

CAUTION

You must wear heat-resistant gloves.

Required tools

CAUTION

You must wear the heat-resistant gloves when you remove paper from the TTF.

Table 1. Remove paper from the TTF
Step	Action	Illustration
1	[Open the front door.]
2	[Use the socket wrench to loosen the 2 fixation pens.]
3	[Turn the red handle counter-clockwise.]
4	[Slide out the TTF unit from its frame.]
5	[Pinch both fixation springs.]
6	[Slide the fixation caps from the cleaner ends.]
7	[Remove the spiral cleaner from the TTF.] [Place the spiral cleaner on the packaging of the new cleaner.] NOTE [When the spiral cleaner has cooled down, discard the cleaner into a common dustbin.] Or return the cleaner to your service organization.
8	[Remove paper underneath the spiral cleaner.]
9	[Use handle 2 to open the flap and check for paper.]
10	[Remove sheets underneath the TTF.]
11	[Place the new spiral cleaner in the TTF.]
12	[Slide both fixation caps over the cleaner ends until the caps click in place.]
13	Check if the spiral cleaner can rotate freely.
14	[Align the TTF with the rail.]
15	[Slide the TTF unit back.]
16	[Turn the red handle clockwise.]
17	[Use the socket wrench to tighten the 2 fixation pens.]

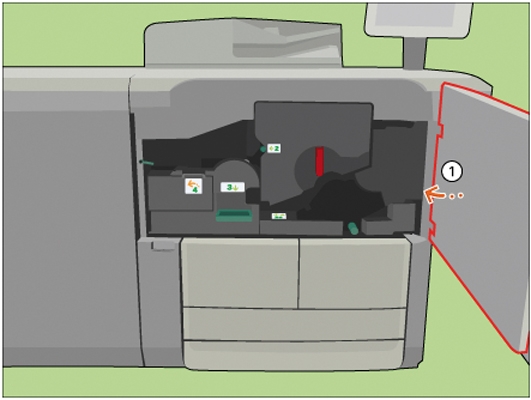

18	[Close the front door.]
19	Answer the question [Which spiral cleaner did you put back?] with [New] to confirm that you installed a new spiral cleaner. When you did not replace the spiral cleaner, touch [Existing].
