There are two professional stacker/stapler configurations: the stacker/stapler with booklet maker (Booklet Finisher-W1) and without booklet maker (Staple Finisher-W1). The booklet maker folds and staples booklets. Both finisher configurations can enable the optional punch unit to punch two, three or four holes in the printed output.
The dashboard of the control panel displays the status of the staple cartridges. When the color of the staple icon is orange or red, the staple cartridge needs replacement.

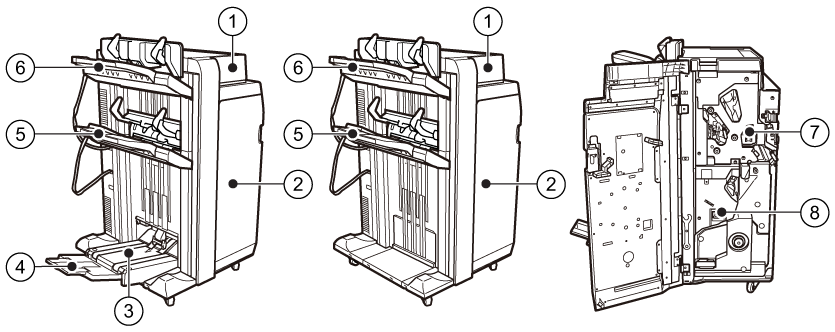

Professional stacker/stapler with booklet maker (Booklet Finisher-W1) and without booklet maker (Staple Finisher-W1)|
Description stacker/stapler |
|
|---|---|
|
1 |
Cover, to access the paper path when a paper jam occurs. |
|
2 |
Cover, to access the area where you replace staple cartridges, clear a paper jam, or clear a staple jam. |
|
3 |
Booklet tray, to collect booklets. |
|
4 |
Auxiliary booklet tray, to collect large booklets. |
|
5 |
Lower tray, to collect finished output. The guides enable correct placement of the printed output. |
|
6 |
Upper tray, to collect finished output. The guides enable correct placement of the printed output. Extension guides for long sheets are attached to this tray. |
|
7 |
Punch waste tray, to collect the punch waste. |
|
8 |
Staple waste tray, to collect the staple waste. |

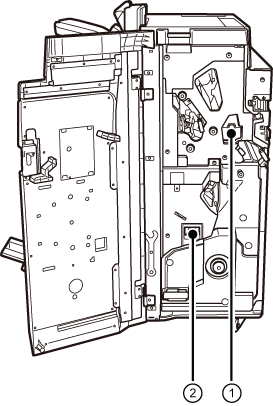

Internal view of the stacker/stapler and saddle-stitch unit (Booklet Finisher-W1 )|
Description internal parts of stacker/stapler |
|
|---|---|
|
1 |
Punch waste tray, to collect the punch waste. |
|
2 |
Staple waste tray, to collect the staple waste. |
