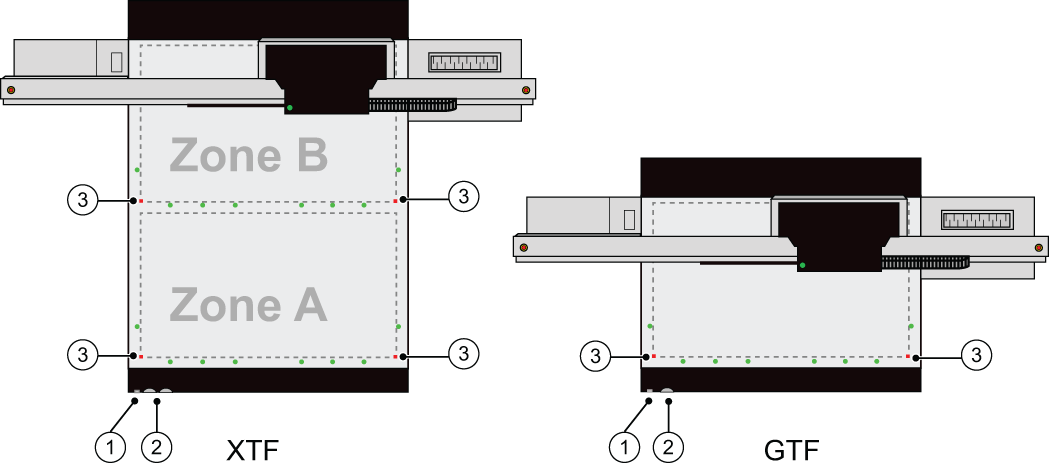

Label |
Hardware Description |
|---|---|
|
1 |
Print Start Button |
|
2 |
Vacuum Gauges |
|
3 |
Print Origin There is a left origin and a right origin for every zone. The GTF has one zone, the XTF has two zones. |
|
The registration pins are marked in green. The origins are marked in red. See Media Registration how to manage the registration pins |
|
