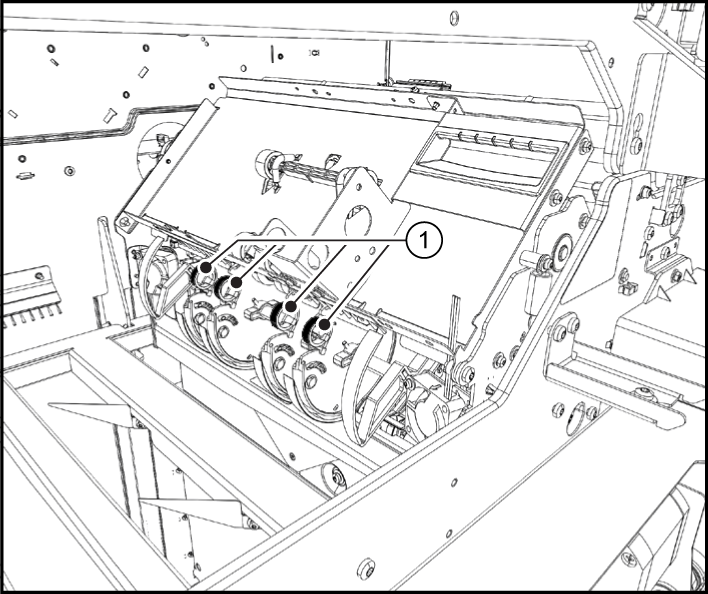

Replace the four flip rings (indicated by (1) in the illustration below) when the stacking quality is not OK or when the flip rings are worn significantly. The flip rings are located behind the front cover.

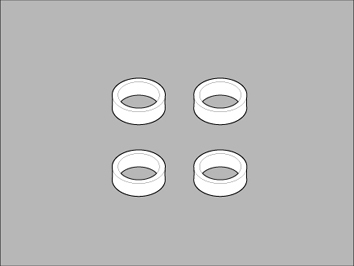

Four new flip rings
CAUTION
Only trained personnel is allowed to carry out this action, if supported by your service organization.
The location of the flip rings|
Step |
Action |
Illustration |
|---|---|---|
|
1 |

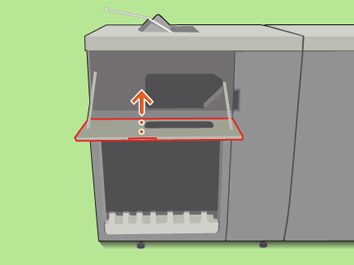

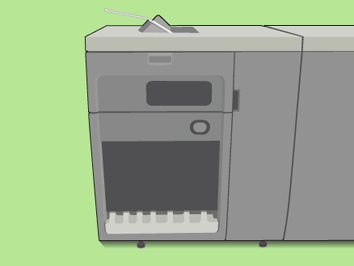

Open the front cover. |
|
|
2 |

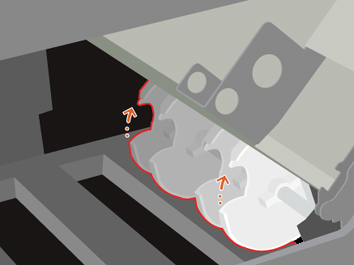

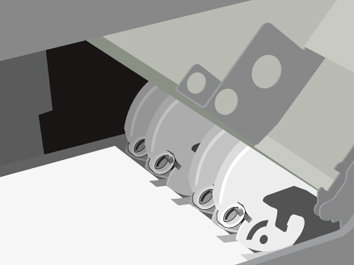

If required, rotate the flip wheel to get access to the flip rings. |
|
|
3 |

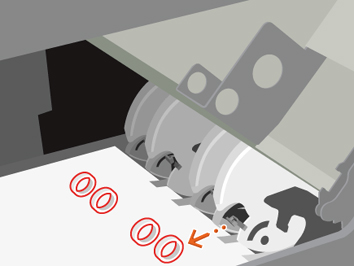

Put an A3/Tabloid sheet on the stack tray to prevent parts from falling into the stacker. |
|
|
4 |

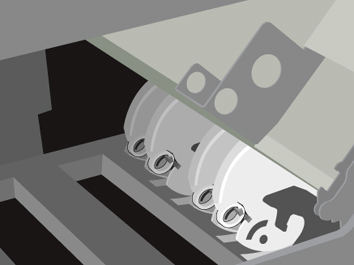

Remove the flip rings one by one. |
|
|
5 |

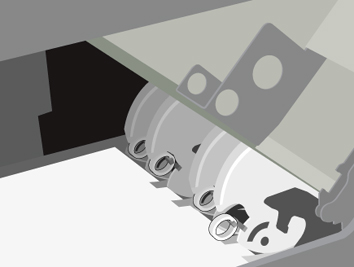

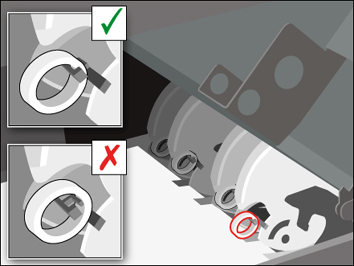

Place the new flip rings one by one. Check if the flip rings can rotate freely. |
|
|
6 |

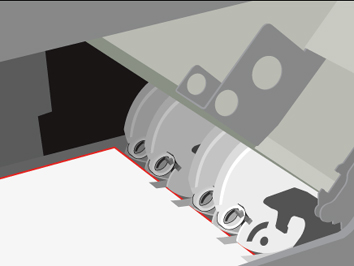

Remove the sheet from the stack tray. |
|
|
7 |

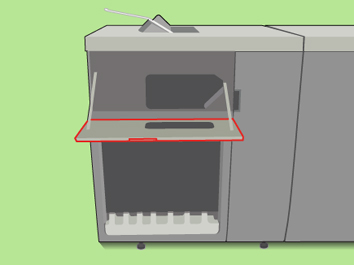

Close the front cover. |
|
