Clean the Z Sensor

About this task

In case of error code 16718.

Required tools

Soft tissue.

Procedure

Clean the Z sensor

Step

Action

Illustration

1

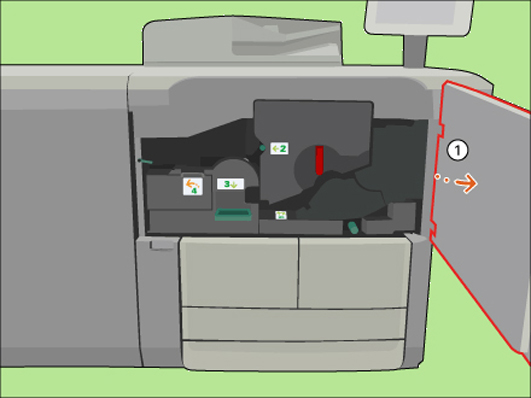

[Open the front door.] 

2

[Use handle 3 to slide out the transport unit.] 

3

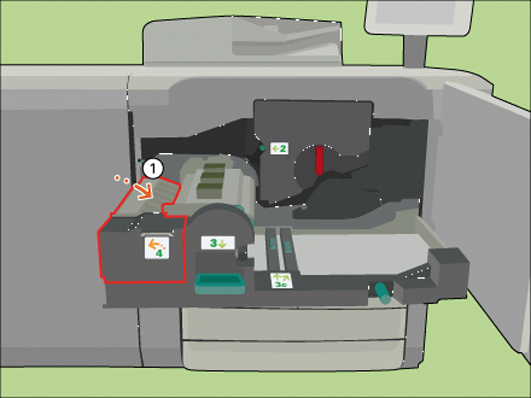

[Use handle 4 to open the turn unit.] 

4

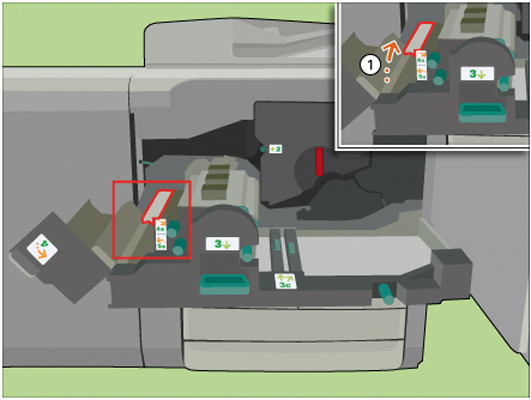

[Use handle 5 to open the flap.] 

5

[Use a tissue to clean the sensor and the sensor box on the inner side.] 

6

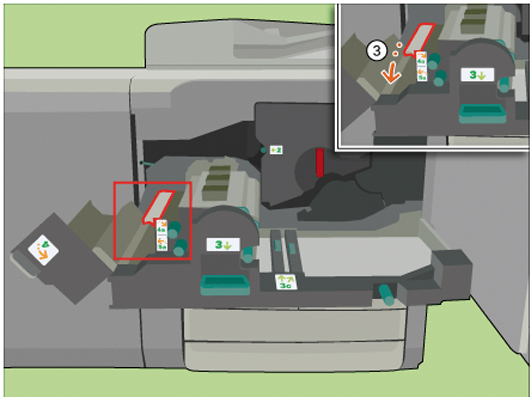

[Close the flap.] 

7

[Use handle 4 to close the turn unit.] 

8

[Use handle 3 to slide the transport unit back.] 

9

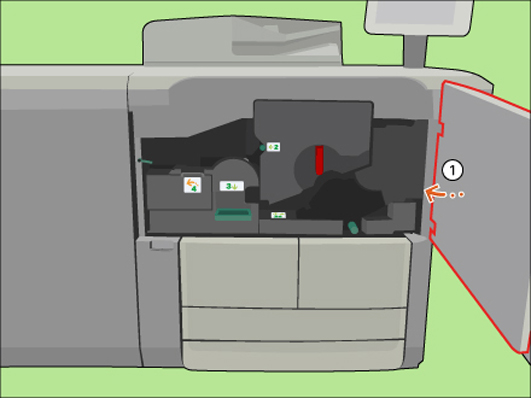

[Close the front door.]
