Clean the scanner rollers and sensors

1

Turn the printer OFF.

2

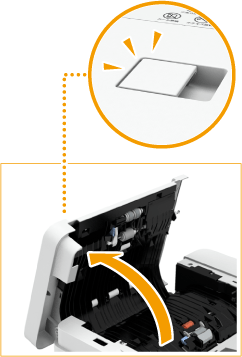

Pull the lever and lift up the cover of the ADF.

3

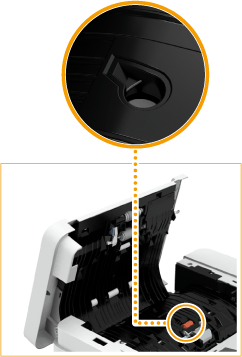

Clean the rollers inside the cover of the ADF.

• Use a moistened tissue to clean the rollers.

  IMPORTANT

  Make sure that also the grooves and surroundings of the rollers are clean.

• Dry the cleaned areas with a dry tissue.

4

Gently close the cover of the ADF.

5

[Open the main cover.]

6

[Use a tissue to clean the scanner sensor.]

• Clean the areas (a) and (b) with a soft tissue.

• If the stains do not come off, use a moistened tissue to clean the sensors.

• Dry the cleaned areas with a dry tissue.

7

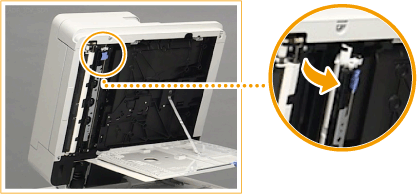

Use the blue lever to [Open the white plate.]

NOTE

Gently open the cover to prevent damage to the glass platen.

8

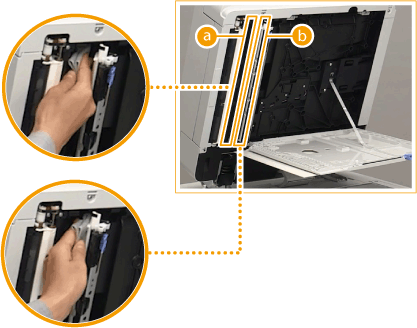

[Use a tissue to clean the scanner sensor.]

• Use the blue lever to access the scanner sensors.

• Clean the areas (a) and (b) with a soft tissue.

• If the stains do not come off, use a moistened tissue to clean the sensors.

• Dry the cleaned areas with a dry tissue.

• Gently close the scanning area.

9

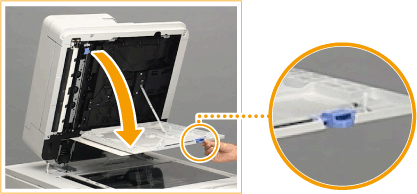

Close the white plate.

10

[Close the main cover.]

11

Turn ON the printer.
