Insert the removable hard disk

1

Take the removable hard disk from the secure location where it is stored.

2

Open the cover in front of the operator panel.

3

Remove the staple box.

4

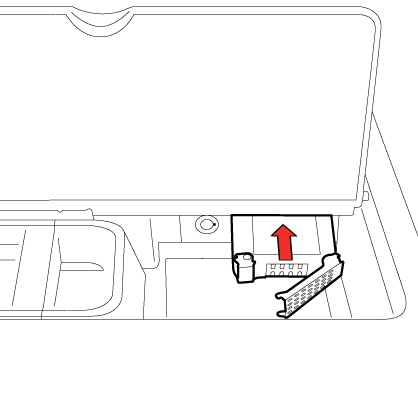

Slide the removable hard disk in.

Make sure that you push the hard disk itself. Do not use the right-hand handle to slide the hard disk in.

5

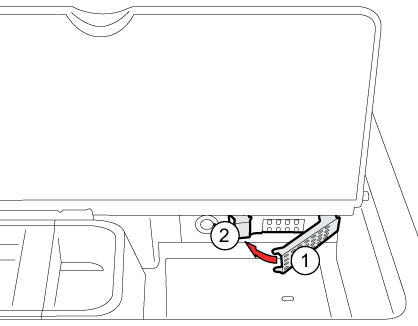

When the hard disk is completely inserted, close the right-hand handle (1).

A click confirms that the right-hand handle is locked correctly behind the left-hand latch (2).

6

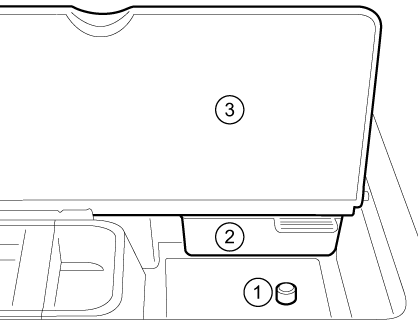

Place the lock (1).

7

Place the staple box (2) back.

8

Close the cover (3).

9

Press the On/Off button to turn the printer on.
