Remove the removable hard disk

Before you begin

Shut down the printer completely.

Wait until the Sleep button and the On/Off button are off.

Table 1. Remove the removable hard disk
Step	Action	Illustration

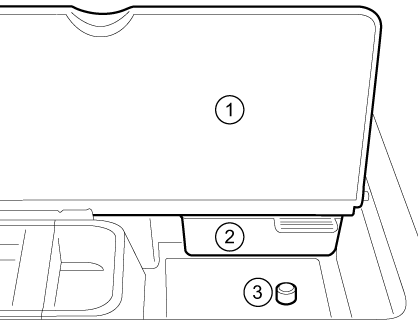

1	Open the cover (1) in front of the operator panel.
2	Remove the staple box (2).
3	Remove the lock (3).

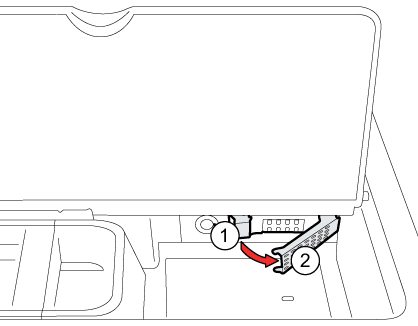

4	Press the left-hand latch (1) of the hard disk housing. The right-hand handle (2) is released.

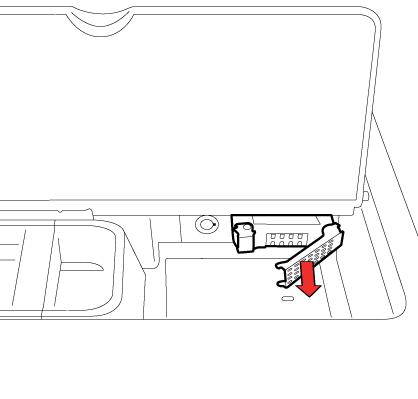

5	Pull the right-hand handle to slide out the removable hard disk.
6	Place the staple box back.
7	Close the cover.
8	Store the hard disk in a secure place, for example a safe.
