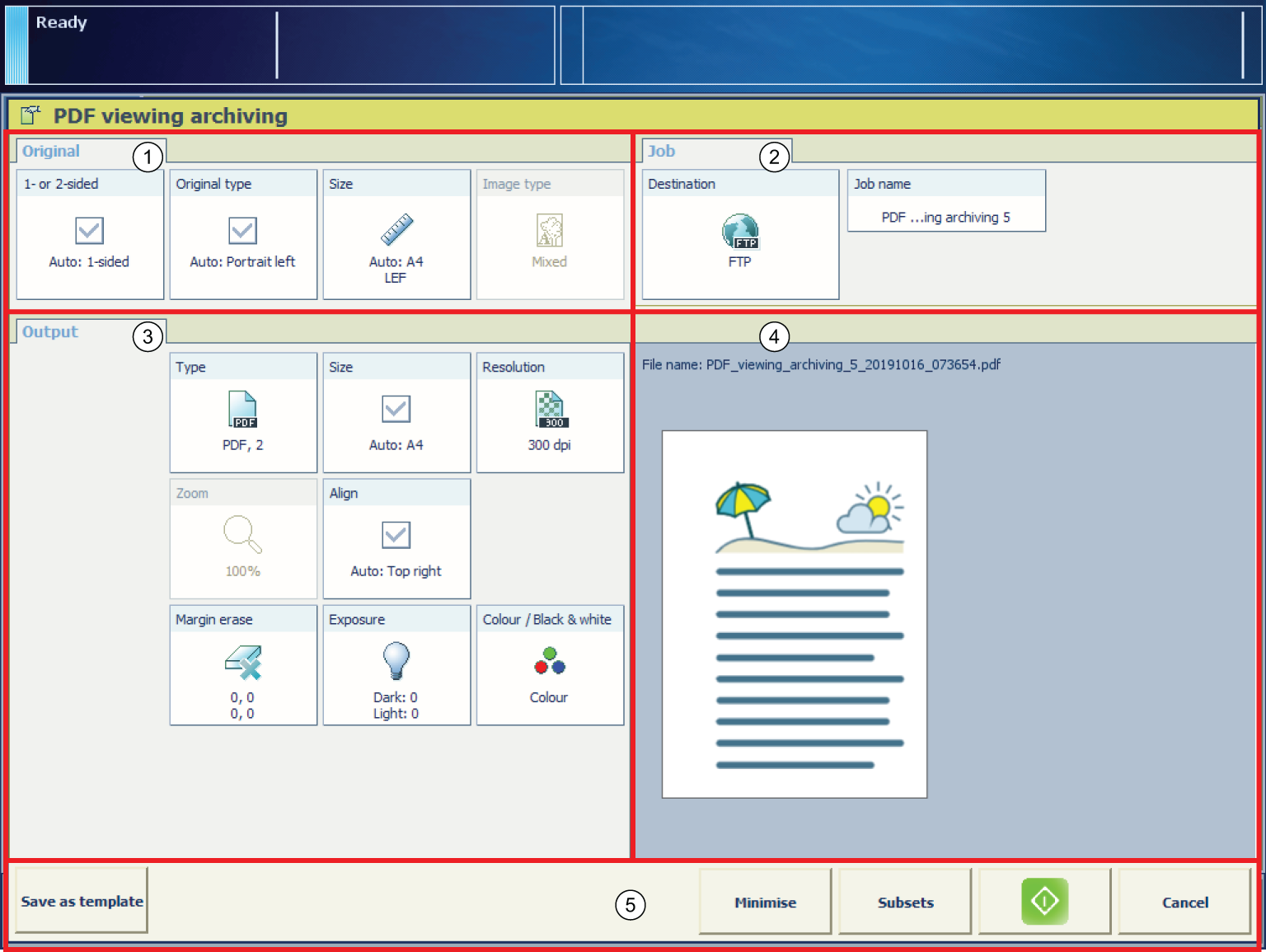

Description of the scan job settings

1

[Original] 

The [Original] section contains the settings to define how the original looks.

2

[Output] 

The [Output] section contains the settings to define how the resulting file must look.

3

[Job] 

The [Job] section enables you to define generic properties for the whole job.

4

Preview

The preview section shows the result of the settings defined for the output.

5

Action buttons

The buttons in this section allow you to select actions, for example, save settings to a template, cancel a job, or start scanning.

With the optional [Page programming] function, you can insert pages and define the media and finishing settings for the page ranges in a job. The optional [Page programming] function is available when you scan subsets into one file.

[1- or 2-sided] 

The automatically set value for this setting.

[1-sided] 

Only the front side contains an image or text.

[2-sided] 

Both the front side and the back side contain an image or text.

[Type] 

The automatically set value for this setting.

[Portrait left] 

• The original has a vertical format (height > width).

• The binding edge is at the left-hand side.

  The left-hand side of a page is bound to the right-hand side of the previous page

• When you turn a sheet over the binding edge, the image or text on the back of the sheet is in readable form.

[Portrait top] 

• The original has a vertical format (height > width).

• Binding edge: the top side of a page is bound to the bottom side of the previous page.

• When you turn a sheet over the binding edge, the image or text on the back of the sheet is in readable form.

• Calendar mode

[Landscape left] 

• The original has a horizontal format (width > height).

• The binding edge is at the left-hand side.

  The left-hand side of a page is bound to the right-hand side of the previous page

• When you turn a sheet over the binding edge, the image or text on the back of the sheet is in readable form.

[Landscape top] 

• The original has a horizontal format (width > height).

• Binding edge: the top side of a page is bound to the bottom side of the previous page.

• When you turn a sheet over the binding edge, the image or text on the back of the sheet is in readable form.

• Calendar mode

[Book] 

Make copies/scans from a book original on the glass plate. You can copy/scan the individual pages of a book.

[Pages] 

• [Both pages]: The left-hand half and the right-hand half of the original (opened book) are copied/scanned as two separate copies.

• [Left page]: The left-hand half of the original (opened book) is copied/scanned.

• [Right page]: The right-hand half of the original (opened book) is copied/scanned.

[Paper weight] 

[Light] 

For optimal sheet separation, the ADF of the scanner needs to be configured for different media weights:

• Light: for sheets lighter than 50 g/m²

• Medium (default): for sheets between 50 and 157 g/m²

• Heavy: for sheets heavier than 157 g/m²

[Medium] 

[Heavy] 

[Size] 

A4, A3, Letter, Ledger, etc.

Original in the ADF or on the glass plate:

• Automatic size detection, or

• Enter the media format of the original.

  When your original has a non-standard size, you can use the - and + buttons to enter the exact measures. You can enter the measures in steps of 0.1 mm / 0.004". The text of the[Size] button changes into [Custom].

[Portrait] 

[Landscape] 

• Automatic orientation detection, or

• Indicate the orientation of nonstandard size media

[Image type] 

[Mixed] 

The original contains a combination of text and images.

[Photo] 

The original contains mainly or only images.

[Text] 

The original contains mainly or only text.

[Type] 

[Format] 

Select the required format.

[Compression] 

Define the compression factor to reduce the file size.

NOTE

A higher compression factor results in a scan with lower quality.

[Quality] 

When a higher quality is needed, you must set the [Quality] higher.

[PDF/A] 

Select [On] to use the PDF/A-1b option in color mode. This is the standard ISO format for archiving purpose.

[Resolution] 

[300 dpi] 

Select [300 dpi] when you want to view or archive the generated file, for example.

[600 dpi] 

Select [600 dpi] when you want to print or edit the generated file, for example.

[Size] 

All media sizes that the media catalog supports

Select the media size of the resulting file.

[Zoom] 

[Fit to page] 

You can select a media size for the file that differs from the media size of the original. When the [Fit to page] setting is enabled, the system scales the original in such a way that the image fits on the selected media size of the file.

[Percent] 

Use this setting to change the zoom manually within the range 25% to 400%.

[Align] 

[Top left] 

The [Align] setting allows you to indicate the position of the image on the sheet. [Top left] moves the image to the upper left corner of the sheet.

[Top center] 

[Top center] moves the image to the center at the top of the sheet.

[Top right] 

[Top right] moves the image to the upper right corner of the sheet.

[Center left] 

[Center left] moves the image to center of the left side of the sheet.

[Center] 

[Center] moves the image to the center of the sheet.

[Center right] 

[Center right] moves the image to the center of the right side of the sheet.

[Bottom left] 

[Bottom left] moves the image to the lower left corner of the sheet.

[Bottom center] 

[Bottom center] moves the image to the center of the bottom side of the sheet.

[Bottom right] 

[Bottom right] moves the image to the lower right corner of the sheet.

[Margin erase] 

[Binding edge] 

Margins of a document sometimes contain notes or punch holes, for example. The machine allows you to hide these elements on the copy. With the + and - buttons of the [Binding edge] setting you can define how much margin of the original you want to erase. You can enter a value up to 100 mm / 3.94".

[Exposure] 

[Dark] 

You can adjust the settings for light areas and dark areas on the print separately.

• When an area on the output must be darker, then select a value of -1 to -3.

• When the area must be lighter, then select a value of 1 to 3.

[Light] 

• When the area must be darker, then select a value of -1 to -3.

• When an area on the output must be lighter, then select a value of 1 to 3.

[Color / black & white] 

[Black and white] 

Select this setting to make black & white scans.

[Grayscale] 

Select this setting to make grayscale scans. When you select this option, the [Image type] and [Zoom] functions are disabled. The file type automatically changes into the preferred settings.

[Color] 

Select this setting to make color scans.

NOTE

To make color scans, the color scanning option must be licensed.

[Destination] 

For scan to USB, you can enter the destination of the scan job on the USB drive. You can select either the root of the USB drive, or a new folder called ScansX, whereby X is an incrementing number. The first time you use this option, the folder will be called Scans1.

For the other destinations you select the destination in the [Destination] field, for example scan to email or FTP.

[Job name] 

For scan to USB, you can enter a job name.

[Enter the user code.] 

This setting applies only to scan-to-email jobs. To use the scan-to-email function, an LDAP server must be configured. The LDAP server contains a mapping of unique user codes and email addresses. When you enter your user code, for example your employee number or telephone number, the LDAP server checks if you are a registered user. If you are a registered user, the system sends the scan job as an attachment to the corresponding email address.

NOTE

The name of this button depends on the name defined in the scan profile file.

[Recipients] 

Depending on the configuration of Scan to Email you can enter one or more email addresses of a user ID.

[Email subject] 

Enter the subject of the email.

[Accounting ID] 

Enter the account ID for the current job. The [Accounting ID] setting is only available when the accounting function on the PRISMAsync controller is enabled.
