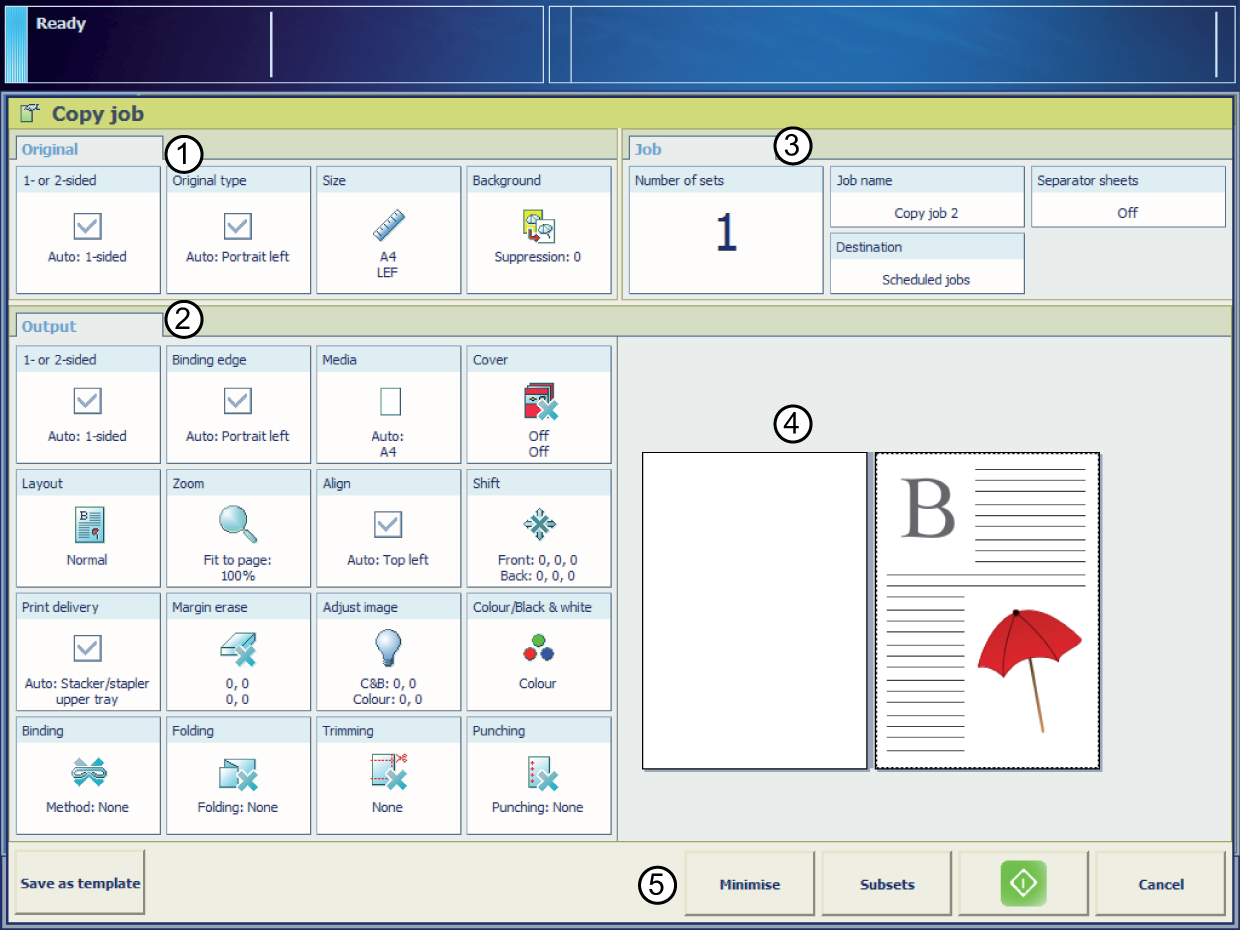

Description of the Copy Job Settings

1

[Original] 

The [Original] section contains the settings to define how the original looks.

2

[Output] 

The [Output] section contains the settings available to define how the resulting copy must look.

NOTE

All the settings have a fixed position. If a setting is not possible, then the location of that setting is empty. Example: The [Trimming] setting is only be available when you have a trimmer. Otherwise, the location of the [Trimming] setting is empty.

3

[Job] 

The [Job] section enables you to define generic properties for the whole job.

4

Preview

The preview section shows the result of the settings defined for the output.

5

Action buttons

The buttons in this section enable you to select an action, for example save the settings in a template, cancel the job or start scanning.

With the optional [Page programming] function you can insert pages and define the media and finishing settings of the page ranges in a job.

[1- or 2-sided] 

The automatically set value for this setting.

[1-sided] 

Only the front side contains an image or text.

[2-sided] 

Both the front side and the back side contain an image or text.

[Original type] 

The automatically set value for this setting.

[Portrait left] 

• The original has a vertical format (height > width).

• The binding edge is at the left-hand side.

  The left-hand side of a page is bound to the right-hand side of the previous page

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

[Portrait top] 

• The original has a vertical format (height > width).

• Binding edge: the top side of a page is bound to the bottom side of the previous page.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

• Calendar mode

[Landscape left] 

• The original has a horizontal format (width > height).

• The binding edge is at the left-hand side.

  The left-hand side of a page is bound to the right-hand side of the previous page

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

[Landscape top] 

• The original has a horizontal format (width > height).

• Binding edge: the top side of a page is bound to the bottom side of the previous page.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

• Calendar mode

[Book] 

Make copies/scans from a book original on the glass plate. You can copy/scan the individual pages of a book.

[Pages] 

• [Both pages]: The left-hand half and the right-hand half of the original (opened book) are copied/scanned as two separate copies.

• [Left page]: The left-hand half of the original (opened book) is copied/scanned.

• [Right page]: The right-hand half of the original (opened book) is copied/scanned.

[Size] 

A4, A3, Letter, Tabloid, etc.

Original in the ADF or on the glass plate:

• Automatic size detection, or

• Enter the media format of the original.

  When your original has a non-standard size, you can use the - and + buttons to enter the exact measures. You can enter the measures in steps of 1 mm / 0.01". The text of the[Size] button changes into [Custom].

[Portrait] 

[Landscape] 

• Automatic orientation detection, or

• Indicate the orientation of non-standard size media

[Image type] 

[Mixed] 

The original contains a combination of text and images.

[Photo] 

The original contains mainly or only images.

[Text] 

The original contains mainly or only text.

[High detail] 

The original contains an image with lots of details.

[1- or 2-sided] 

[Auto] 

The automatically set value for this setting.

[1-sided] 

The output contains an image on one side.

[2-sided] 

The output contains an image on both sides.

[Binding edge] 

[Portrait] 

[Left] 

• The original has a vertical format (height > width).

• The binding edge is at the left-hand side.

  The left-hand side of a page is bound to the right-hand side of the previous page

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

[Right] 

• The original has a vertical format (height > width).

• The binding edge is at the right-hand side.

  The right-hand side of a page is bound to the left-hand side of the previous side.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

[Top, head to toe] 

• The original has a vertical format (height > width).

• Binding edge: the top side of a page is bound to the bottom side of the previous page.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

• Calendar mode

[Top, head to head] 

• The original has a vertical format (height > width).

• Binding edge: the top side of a page is bound to the top side of the previous page.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is upside down.

[Bottom] 

• The original has a vertical format (height > width).

• Binding edge: the bottom side of a page is bound to the bottom side of the previous page.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

[Binding edge] 

[Landscape] 

[Left] 

• The original has a horizontal format (width > height).

• The binding edge is at the left-hand side.

  The left-hand side of a page is bound to the right-hand side of the previous page

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

[Right] 

• The original has a horizontal format (width > height).

• The binding edge is at the right-hand side.

  The right-hand side of a page is bound to the left-hand side of the previous side.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

[Top, head to toe] 

• The original has a horizontal format (width > height).

• Binding edge: the top side of a page is bound to the bottom side of the previous page.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

• Calendar mode

[Top, head to head] 

• The original has a horizontal format (width > height).

• Binding edge: the top side of a page is bound to the top side of the previous page.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is upside down.

[Bottom] 

• The original has a horizontal format (width > height).

• Binding edge: the bottom side of a page is bound to the bottom side of the previous page.

• When you turn a sheet over the binding edge the image or text on the back side of the sheet is in readable form.

[Media] 

Names of the media in the media catalogue

Here you can select the media for the copy job. The list displays all the media that are available in the media catalogue. The media catalogue is a list of media that you can define in the Settings Editor application on the PRISMAsync controller.

[Cover] 

[Front cover] 

Here you can indicate that the print job requires a front cover. When the setting is enabled the corresponding setting [Media] becomes enabled.

[Media] 

When the setting [Front cover] is enabled, you can select a media from the media catalogue.

[Print sides] 

Here you can select the sides of the front cover you want to print on.

• [Both sides] 

• [Front side] 

• [Back side] 

• [None] 

[Back cover] 

Here you can indicate that the print job requires a back cover. When the setting is enabled the corresponding setting [Media] becomes enabled.

[Media] 

When the setting [Back cover] is enabled, you can select a media from the media catalogue.

[Print sides] 

Here you can select the sides of the back cover you want to print on.

• [Both sides] 

• [Front side] 

• [Back side] 

• [None] 

[Layout] 

[Multiple up] 

The machine prints 2, 4, 6, 9 or 16 consecutive images on 1 side of a sheet. By default, the system keeps the size of the originals. If necessary, use the Zoom function to reduce or enlarge the size of the images.

[Imposition template] 

Use [Imposition template] to create a booklet, a quarto or an octavo. The printer prints the sheets in such a way that the pages of the document are presented in sequential order.

[Same-up] 

The printer prints the same image 2, 4, 6, 9 or 16 times on 1 side of a sheet. By default, the system keeps the size of the originals. If necessary, use the Zoom function to reduce or enlarge the size of the images.

[2, rotate]: The printer prints the same image w times on 1 side of a sheet. The images are rotated compared to each other. By default, the system keeps the size of the originals. If necessary, use the Zoom function to reduce or enlarge the size of the images.

When your printer has the Advance Impose licence installed, you can also select [Custom] in the drop-down list.

[Zoom] 

[Fit to page] 

When [Fit to page] is [On], the image will be resized in such a way that it fits onto the page.

When [Fit to page] is [Off], the original size of the image is kept.

[Percent] 

Use the + and - buttons to reduce or enlarge the size of the image (from 25% - 400%). The preview pane will immediately show the result of your action.

[Align] 

[Auto] 

The automatically set value for this setting.

[Top left] 

The [Align] setting allows you to indicate the position of the image on the sheet. [Top left] moves the image to the upper left corner of the sheet.

[Top centre] 

[Top centre] moves the image to the centre at the top of the sheet.

[Top right] 

[Top right] moves the image to the upper right corner of the sheet.

[Centre left] 

[Centre left] moves the image to centre of the left side of the sheet.

[Centre] 

[Centre] moves the image to the centre of the sheet.

[Centre right] 

[Centre right] moves the image to the centre of the right side of the sheet.

[Bottom left] 

[Bottom left] moves the image to the lower left corner of the sheet.

[Bottom centre] 

[Bottom centre] moves the image to the centre of the bottom side of the sheet.

[Bottom right] 

[Bottom right] moves the image to the lower right corner of the sheet.

[Shift] 

[Margin shift] 

Use this setting to increase or decrease the margin. By default, the values of the front side and the back side are interlocked. This means that the values for the front side and the back side remain identical.

Widening of the margin can be useful if you want to staple or punch the output, for example. Narrowing the margin can be useful if you do not need additional space for stapling or punching the output, for example.

If you want to define a different value for each side, touch . The icon changes to the unlocked status. Now you can define the values for the front side and the back side separately.

[Image shift] 

Use this setting to shift the image horizontally or vertically. By default, the values of the front side and the back side are interlocked. This means that the values for the front side and the back side remain identical.

If you want to define a different value for each side, touch . The icon changes to the unlocked status. Now you can define the values for the front side and the back side separately.

[Print delivery] 

[Output tray] 

Select the output location for the job. Depending on the settings for your job, the machine automatically suggests the preferred output location for your job. However, you can manually overrule this suggestion.

[Sort] 

[By page] 

The output is sorted by page.

[By set] 

The output is sorted by set.

[Offset stacking] 

This setting is only available when in the workflow profile the [Offset stacking] setting is set to [As in job].

[Each set] 

Each set that is delivered to an output location will have a small shift on top of the previous set. This makes it easier to recognise individual sets.

[Off] 

All the sets or jobs that get to an output location will be stacked in a straight stack.

[Advanced settings] 

It may only be necessary to change the advanced settings when an offline finisher processes sheets in a non-standard way. Please refer to the finisher manuals for more information.

[Print delivery] 

[Advanced settings] 

[Sheet order] 

[Face up] 

Deliver the prints face up, first sheet on top.

[Face up reverse] 

Deliver the prints face up, last sheet on top.

[Face down] 

Deliver the prints face down, first sheet on top.

[Face down reverse] 

Deliver the prints face down, last sheet on top.

[Sheet orientation] 

[Header up LEF] 

Deliver the prints with the header on top side and in portrait position (vertical).

[Header up SEF] 

Deliver the prints with the header on top side and in landscape position (horizontal).

[Header down LEF] 

Deliver the prints with the header at the bottom side and in portrait position (vertical).

[Header down SEF] 

Deliver the prints with the header at the bottom side and in landscape position (horizontal).

[Print delivery] 

[Advanced settings] 

[Print order] 

• [Front/back] 

  Default value. The front page on the front, the back page on the back.

• [Back/front] 

  Puts the front page on the back and the back page on the front.

[Rotation] 

• [0 degrees] 

• [180 degrees] 

  Rotates the prints 180 degrees.

[Margin erase] 

Numbers

Margins of a document sometimes contain notes or punch holes, for example. The machine allows you to hide these elements on the copy. With the + and - buttons of the [Margin erase] setting you can define how much margin of the original you want to erase. You can enter a value up to 100 mm / 3.94".

[Exposure] 

[Dark] 

You can adjust the settings for light areas and dark areas on the print separately.

• When an area on the output must be darker, then select a value of -1 to -3.

• When the area must be lighter, then select a value of 1 to 3.

[Light] 

• When the area must be darker, then select a value of -1 to -3.

• When an area on the output must be lighter, then select a value of 1 to 3.

[Binding] 

Here you can define how to bind your document, for example where to put the staple. The available options depend on the finishers present.

Check the preview for the result of the selection.

[Folding] 

Folding method

Here you can define how to fold your document. The available options depend on the finishers present. The required output location depends on the selected folding method.

Check the preview for the result of the selection.

[Print method] 

You can define on what side to print with the [Print method] option:

• [Print inside] 

• [Print outside] 

Check the preview for the result of the selection.

[Trimming] 

[None] 

No trimming of the document.

[Trim by system] 

This option is only available when you have a trimming unit connected.

[Trim size] 

You can indicate the amount of trimming at the long edge and short edge (from 2.0 mm to 20.0 mm / 0.08" - 0.80")

[Finishing size] 

You can indicate the size of the resulting document after trimming. You can either touch [Size] to select a default media size or manually define the width and length of the document. When you define a non-standard media size, the [Size] box displays [Custom].

[Print trim marks] 

You can print trim marks on the output for offline trimming.

[Trim size] 

You can indicate the amount of trimming at the long edge and short edge (from 2.0 mm to 20.0 mm / 0.08" - 0.80")

[Finishing size] 

You can indicate the size of the resulting document after trimming. You can either touch [Size] to select a default media size or manually define the width and length of the document. When you define a non-standard media size, the [Size] box displays [Custom].

[Punching] 

Punching options

Here you can define how to punch your document. You can select the required number and the location of the punch holes. The available options depend on the finishers present.

[Number of sets] 

[Check first set] 

When the [Check first set] setting is enabled, the printer stops after the first set of a job has been printed. You can check the quality of the output.

NOTE

This setting is only available when in the workflow profile [Check first set] is set to [As in job].

[Number of sets] 

You can indicate how many copies of the job you need. You can enter a value from 1 - 65,000. The default value is 1.

[Job name] 

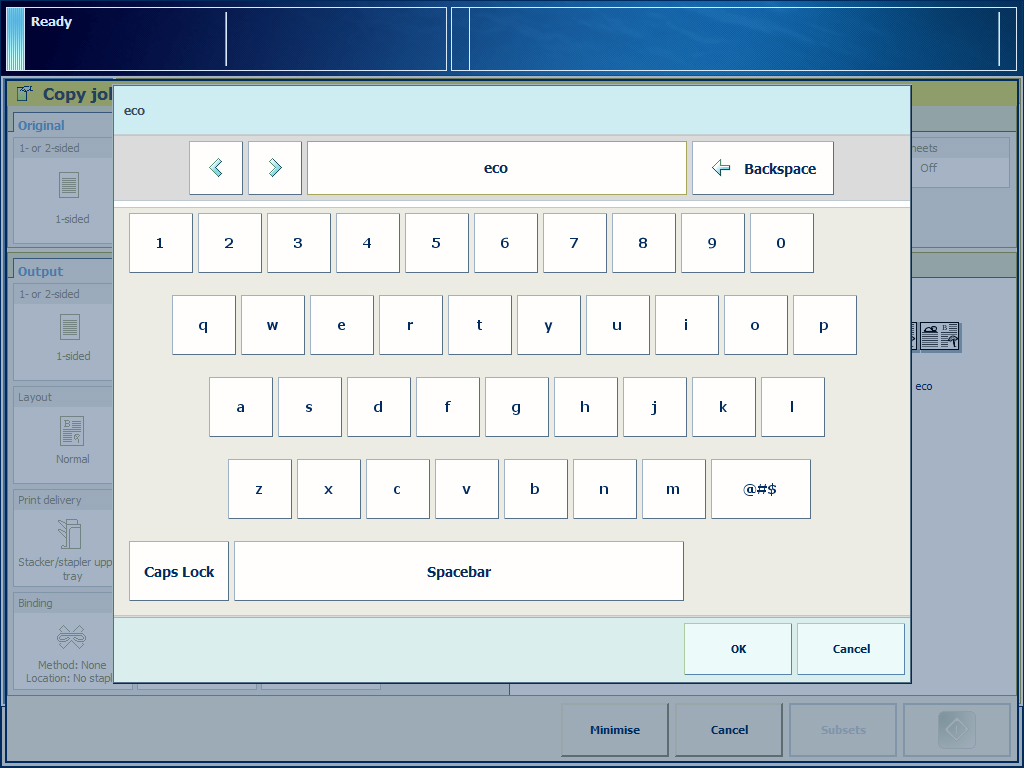

To identify your job more easily, you can change the name of the job. When you touch the [Job name] button a keyboard appears. Then you can change the name of the job.

[Destination] 

[Scheduled jobs] 

Add the copy job to the list of [Scheduled jobs] in the [Jobs] view.

[Waiting jobs] 

Add the copy job to the list or [Waiting jobs] in the [Jobs] view.

[DocBox] 

Add the copy job to the [DocBox] (if licensed).

[Special pages]

Banner pages, trailer pages and separator sheets

• [Overrule default banner /trailer page settings] : indicate if you want to overrule the default banner page, trailer page, and separator sheets settings.

• [Use a banner page] : indicate if the job must include a banner page.

  The banner page contains: the sender name, the recipient name, the accounting ID, the job name, the printer name, the operator instruction, the cost center, and the number of sets.

• [Use a trailer page] : indicate if the job must include a trailer page.

  The trailer page contains: the username, the recipient name, accounting ID, the job name, the printer name, the operator instruction, the number of pages in a set , the number of sets, the number of staples, the number of folded sheets, the number of punched sheets, the number of creased sheets, the number of inserts, job received time, job start time, job completion time, the number of sheets per job media.

• [Media of banner/trailer page] : define the media for the banner and trailer page.

• [Use separator sheets ] : indicate the use of separator sheets to separate job sets. Separator sheets are not printed.

• [Separator sheet after N sets] : define after how many sets you want a separator sheet.

• [Media of separator sheets] : define the media for the separator sheet.

[Accounting ID]

Accounting information

Enter information for billing and charging job costs:

• [Accounting ID], to identify a user or a group of users.

• [Cost centre], to identify an organisational department, project or group.

• [Note], to enter additional information required for accounting.
