Use the glass plate to copy or scan bound originals (such as books and magazines), heavy or lightweight originals, and transparencies. Also place originals on the glass plate when you want to copy an A3 original with an image that extends all the way to the edges without the periphery of the original being cut off.
CAUTION
Do not press down hard on the ADF when you use the glass plate to copy thick books. Doing so may damage the glass plate and result in personal injury.
NOTE
The scanner automatically detects the following sizes of originals (after you closed the ADF): A5, Statement 5.5"x8.5", B5, A4, A4R, Letter 8.5"x11", LetterR, B4R, B5R, LegalR 8.5"x14", A3R, TabloidR 11"x17", B6.
|
Step |
Action |
Illustration |
|---|---|---|
|
1 |
Open the ADF. NOTE
Open the ADF at least 300 mm (11.8"). Otherwise, the size of the originals may not be detected correctly. |
Sensor = Sensor |
|
2 |

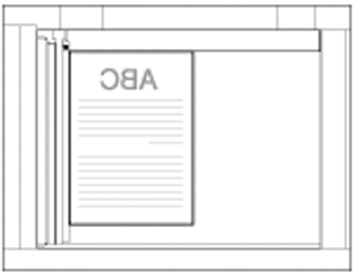

Place one original face down on the glass plate. |
|
|
3 |
Align the top edge of your original with the back edge of the glass plate (by the arrow in the upper-left corner). NOTE
When you enlarge an A4 or A5 original onto A3 paper, place the original horizontally on the glass plate, and align it with the A4R or A5R marks. NOTE
When you enlarge a Letter or Statement original onto 11"x17" or Legal paper, place the original horizontally on the glass plate, and align it with the LetterR or StatementR marks. |
|
|
4 |
Gently close the ADF to prevent personal injury or damage to the scanner. |
|
|
5 |
Define the copy or scan settings on the control panel and touch [Start] |
|
|
6 |
When the copy or scan job is ready, open the ADF and remove the original from the glass plate. |
|
|
7 |
Gently close the ADF to prevent personal injury or damage to the scanner. |
|
|
Step |
Action |
Illustration |
|---|---|---|
|
1 |
Open the ADF. NOTE
Open the ADF at least 300 mm (11.8"). Otherwise, the size of the originals may not be detected correctly. |
Sensor = Sensor |
|
2 |
Place the book on the glass plate with the pages face down. |
|
|
3 |
Align the top edge of pages of your book with the back edge of the glass plate (by the arrow in the top left corner). |
|
|
4 |
Gently close the ADF to prevent personal injury, damage to the scanner, or damage to the book. |
|
|
5 |
Define the copy or scan settings on the control panel and touch [Start] |
Select the setting [Book] to make copies/scans from a book original on the glass platen. You can copy/scan the individual pages of a book. You can copy/scan the left-hand half and the right-hand half of the original (opened book) as two separate copies. Or you can copy/scan the left-hand half or the right-hand half of the original (opened book). |
|
6 |
When the copy or scan job is ready, open the ADF and remove the book from the glass plate. |
|
|
7 |
Gently close the ADF to prevent personal injury or damage to the scanner. |
|
.
