The separation enhancer improves the separation performance of specific media, such as coated media. The table below gives recommendations about the use of the separation enhancer.
To prevent the risk of double sheet separations, it is advised to remove the separation enhancer in all other situations.
The trays three and four both contain a separation enhancer. You can use the separation enhancer in all the trays.
|
Media formats |
Coated media types |
All other media types |
|---|---|---|
|
Small formats: A4, LTR, 16K, B5, US Standard |
> 100 g/m² (28 lb bond) |
Never |
|
Large formats: (A3, SRA3, A3+, 8K, B4, Legal) |
Always |
> 160 g/m² (60 lb cover) |
NOTE
Only deviate from the recommendations above when the printer repeatedly stops while the operator panel displays the error code ORE147x1.
The separation enhancer|
Step |
Action |
Remarks |
|---|---|---|
|
1 |
Touch [System] -> [Maintenance] -> [Go to maintenance tasks] -> [Separation enhancer] -> [Start]. |
|
|
2 |

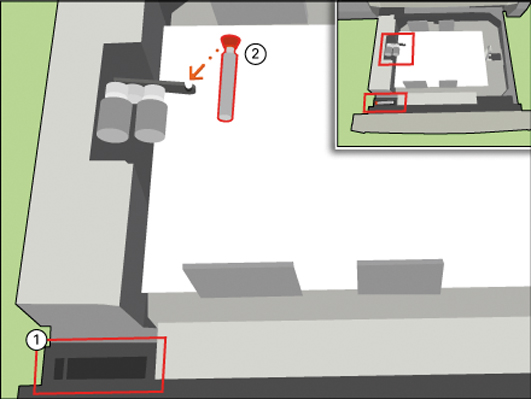

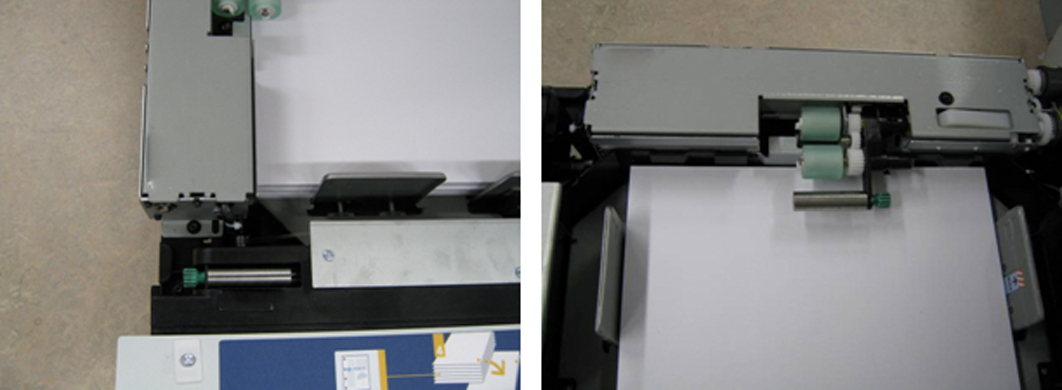

[Open the paper tray (tray 3 or 4) and loosen the separation enhancer.] [Place the separation enhancer in the separation unit.] |
|
|
3 |

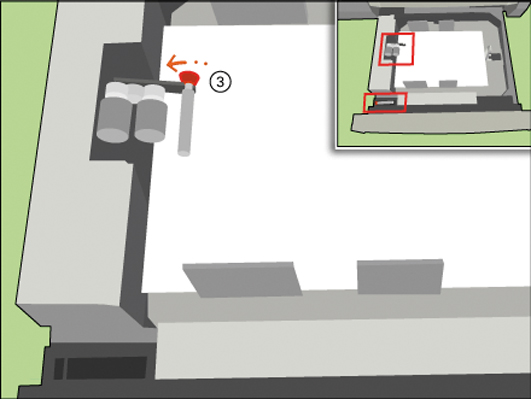

[Lock the separation enhancer.] |
|
