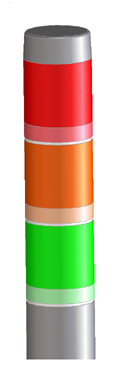

The operator attention light on top of the printer helps you to monitor the status of the printer from a distance. The colours of the lights match the printer status that the dashboard displays.
The operator attention light|
Colour |
Description |
|---|---|
|
Red |
The machine has stopped, for example because a required media type is not available or an error has occurred. Operator attention is required now. |
|
Orange |
The machine will stop soon, for example because more paper is required. Operator attention is required soon. The orange light illuminates when the machine reaches the warning time. The warning time is a time you can set to determine when the orange light must illuminate. You can set the warning time in the [System] section of the operator panel. By factory default, the warning time is set to 10 minutes. So 10 minutes before operator attention is required, the orange light will illuminate. |
|
Green |
The machine is busy printing. The machine can print longer than the set warning time. Operator attention is not required. |
|
All lights off |
The machine is idle. There are no jobs scheduled for printing. |
