A map of the vacuum zone can be printed on the table to help with the position of media over the zones. A default map is provided, but you can also create your own map, if desired.
Procedure
Select the Special Prints tab in the printer software.
Scroll to Vacuum Zones Imperial - GT and add it to the print job list.
With no media present, print the zone map directly onto the printer table.

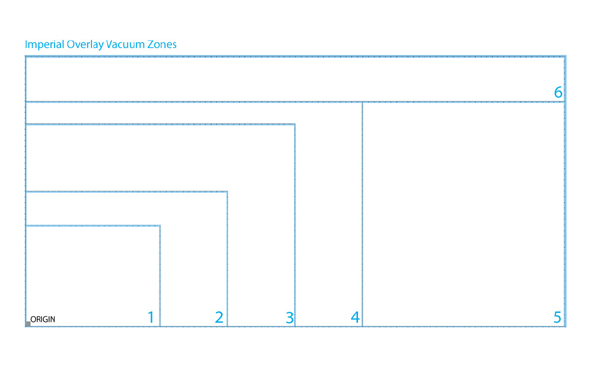

Vacuum Zones Imperial - GT
