How to Access the Spot Layer Tool

Procedure

Open a print job in Preflight using an ONYX profile (media model) that contains spot data channels.
Select the Color Corrections tab.
Click on Tools and select Spot Layer Tool. This will open the feature set.
NOTE
If the Enable checkbox won't activate, the media you used to open the job has not been configured with the Quality-Layered print mode. Create or Edit your media to support spot ink in Media Manager before you open the job in Preflight (or download a white ink media model from the website).

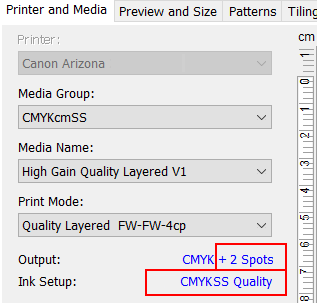

ONYX Profile with Spot Channels

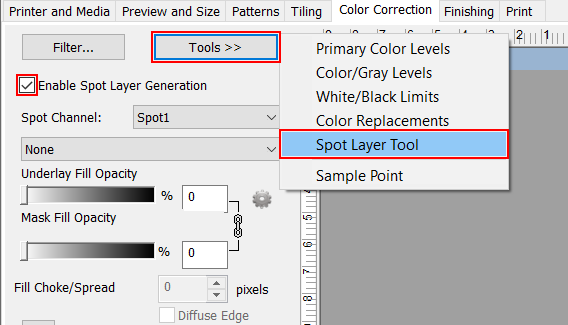

Select the Spot Layer Tool

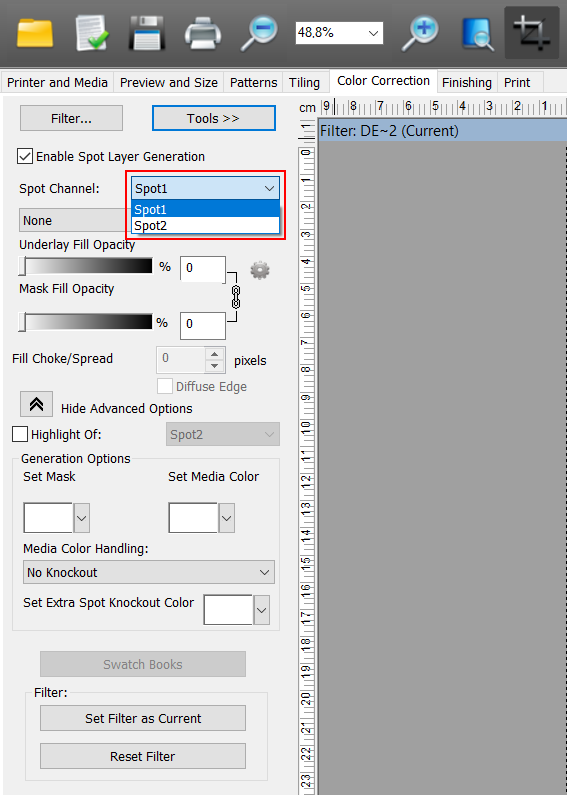

Spot Channel Selection
Check Enable Spot Layer Generation to activate the tool.
Select the spot channel you will use to create data, then use the explanations of the Spot Layer Tool options at the beginning of this section to help you use the tool.
