How to Power ON and Off

Introduction

It is critical for the printer to remain powered ON at all times. Power is required in periods of inactivity so the printer can perform automatic functions to maintain its operating state. If these functions do not take place, damage to critical components can occur. However, it may be necessary on occasion to cycle power on the printer or to recover from a power outage.

How to Power ON

Procedure

  1. Ensure that the AC power plug is properly seated.

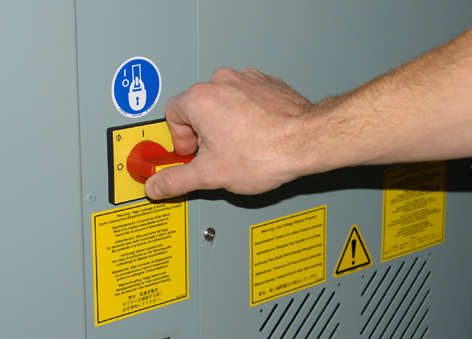

  2. Turn the AC power switch to the On position.
    AC Power Switch
  3. Turn on the power of the Control Station LCD monitor, if necessary.
    NOTE

    During the boot-up procedure, the printer software is automatically started. The software displays a splash screen.

    The splash screen will show initialization messages and then the Print Job Control module screen appears. The initialization is complete when the top left panel of the display shows "Ready". Your printer is now ready for use.
