IMPORTANT
Only use intact media rolls. Dented media rolls can damage the [Imaging devices].
|

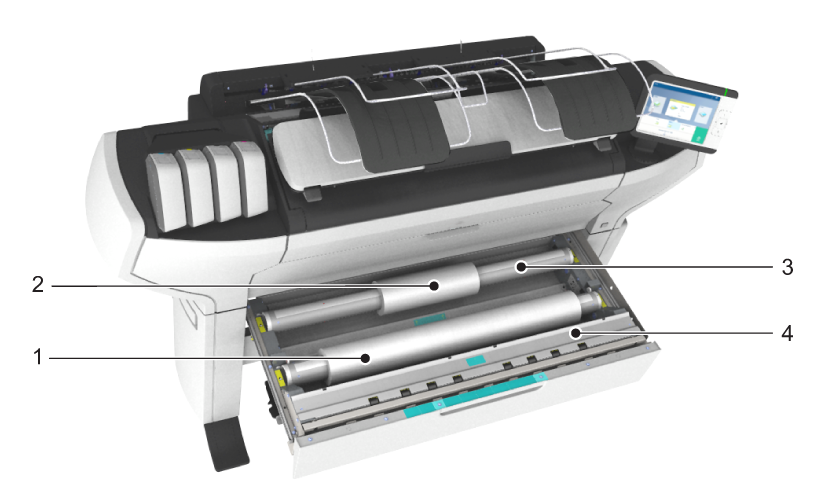

No |
Component |
Description / Function |
|---|---|---|
|
1 |
[media roll] 1 |
Media placed on roll holder in first position. |
|
2 |
[media roll] 2 |
Media placed on roll holder in second position. |
|
3 |
[roll holder] |
Carries the media roll. |
|
4 |
[roll loading station] |
Groove integrated behind the front cover of the media drawer. |
