The Settings Module allows you to review and change the date and time, network connection settings, user interface configurations, printer settings and, if installed, the Roll Media settings.

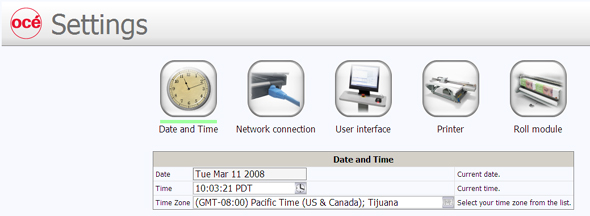

Date and Time |
Date - display only, cannot change the date
Time - change the time of day, if required
Whether Daylight Savings Time is set
Time Zone - select the time zone for the printer location

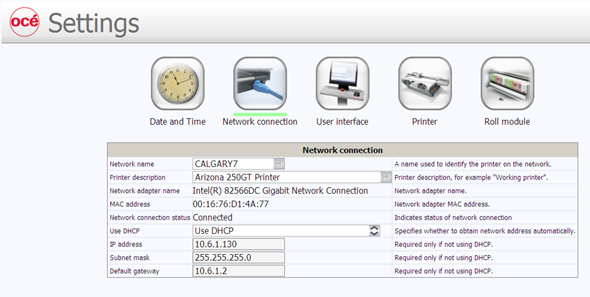

Network Connections |
NOTE
Typically, DHCP is used to automatically obtain network settings. If "Use DHCP" is selected, the only thing you might want to change is the network name of the printer. The settings are displayed to troubleshoot possible network connection problems. One situation that would require changes is if your network does not use DHCP to automatically obtain network settings. In this case network settings have to be entered manually. If you don't know how to do this, bring in a network consultant to determine what the setting must be for the network (alternately, you can purchase a DHCP router for your network that will automatically supply the network settings).
Network Name
Printer Description
Network Adapter Name
MAC Address
Network Status
Use DHCP
IP Address
Subnet Mask
Default Gateway
NOTE
A network name for the printer cannot consist of numeric characters only - it must be a mix of alpha-numeric characters.
If the Printer name is changed, the printer must be restarted for the change to take effect.
If any settings require a printer restart, a reminder will be displayed when that settings is selected.

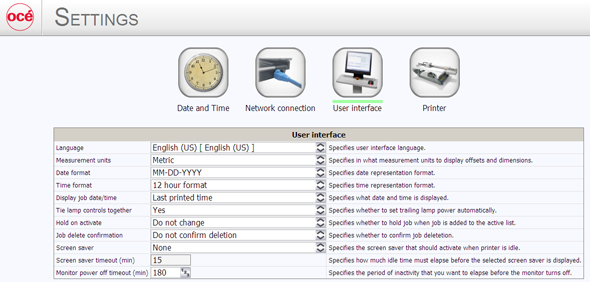

User Interface Settings |
Settings Available
The user interface allows you to change the following features:
Language
Measurement Units
Date format
Time format
Display job/time
Tie lamp controls together
Hold on active
Job delete confirmation
Screen saver
Screen saver timeout
Monitor power off timeout

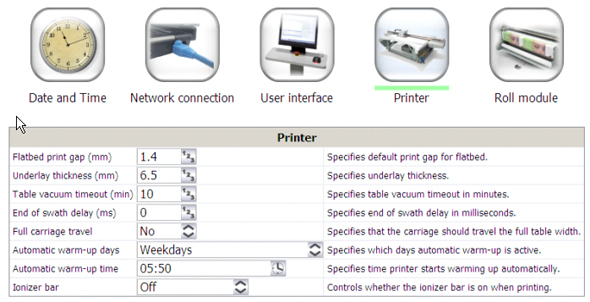

Printer Settings |
Allows you to set the following:
Flatbed print gap
Underlay thickness
Table vacuum timeout
End of swath delay
Full carriage travel
Automatic warmup day
Automatic warmup time
Ionizer bar (static suppression - On or Off)

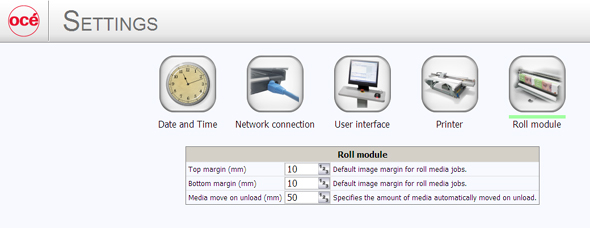

Roll Media Settings |
Top Margin
Specifies the distance left unprinted above the image.
Bottom Margin
Specifies the distance left unprinted below the image.
Media Move on Unload
Specifies the amount of media moved on unload in the selected measurement units.
NOTE
This setting icon is displayed only if the Roll Media Option is installed.
