How to Create Spot Data with the Spot Layer Tool - How to Access the Spot Layer Tool

Procedure

  1. Open a print job in Preflight.
  2. Select the Color Corrections tab.
  3. Click on Tools and select Spot Layer Tool. This will open the feature set.
    NOTE

    If the Enable checkbox won't activate, the media you used to open the job has not been configured with the Quality-Layered print mode. Create or Edit your media to support spot ink in Media Manager before you open the job in Preflight (or download a white ink media model from the web site).

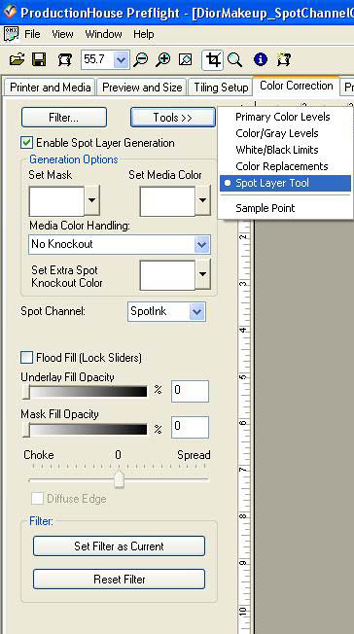

    Spot Layer Tool
  4. Check Enable Spot Layer Generation to activate the tool.
  5. Use the explanations of the Spot Layer Tool options at the beginning of this section to help you use the tool.
Parent topic:
How to Create Spot Data with the Spot Layer Tool - How to Use the Spot Layer Tool
