The Roll Media Manager is the area of the printer software where you prepare to print on roll media. With this menu you can load and unload media, change media type and parameters, and initialize the printer to prepare it to print on roll media. This section introduces the icons in the Roll Media Manager that are necessary to load and initialize a roll media print job. How to set the Media parameters and print the job is explained in the section "How to Print on Roll Media".
How to Access the Roll Media Manager

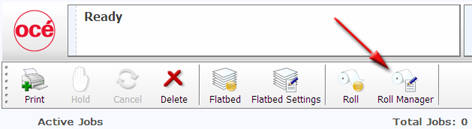

Click on the Roll Manager icon in the command toolbar of the Print Job module.
Roll Manager iconThe Roll media manager is displayed in the center of the screen.
Roll Media Manager|
Icon |
Function |
|---|---|
|
Load |
Allows the operator to load new media. Set the foot pedal switches to the Load state. |
|
Unload |
Prepares the RMO to allow the operator to cut the existing media, remove it, and replace it with a new roll. |
|
Initialize |
Sets up tension on the loaded media and prepares the RMO to print on that media. |
|
Print Side |
Operator can select either Print Side In or Print Side Out. Print Side In allows you to print on the back side of the media. The default setting is Print Side Out. |
|
Normal Move / Slow Move |
Normal Move is the default state. When you click on this icon in the top right corner, it changes to Slow Move. Use Slow Move when you want to advance or rewind media and stop it at a more precise position. It causes the dual foot pedal switches to move the media more slowly. |
The procedures to use these icons to load and unload media is explained in the next two sections. How to verify or change media parameters and to actually print a roll media job is explained in the section "How to Print on Roll Media".
