Define default use of special pages

This topic describes the following instructions.

1. Define banner pages

2. Define trailer pages

3. Define the default media of banner and trailer pages

4. Define the default media of separator sheets

What are special pages

Banner pages, trailer pages and separator sheets are special pages that can be added to a job. The Settings Editor has options to configure the use of special pages.

NOTE

You can import and export the media definition of special pages.

Define banner pages

1. Open the Settings Editor and go to: [Preferences]  → [System settings]  → [Basic] 

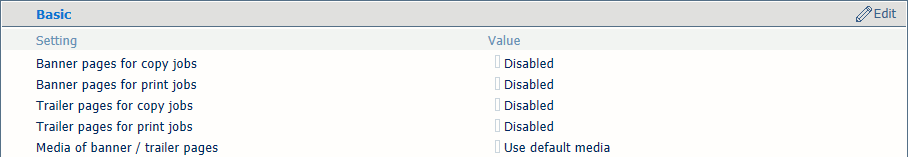

   [System settings] tab

2. Use the [Banner pages for copy jobs] and [Banner pages for print jobs] options to indicate the use of banner pages.

   • [Enabled]: banner pages are added to all jobs.

   • [Disabled]: banner pages are never added to the jobs.

   Banner pages for copy jobs

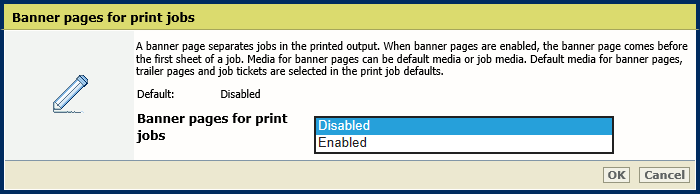

   Banner pages for print jobs

3. Click [OK].

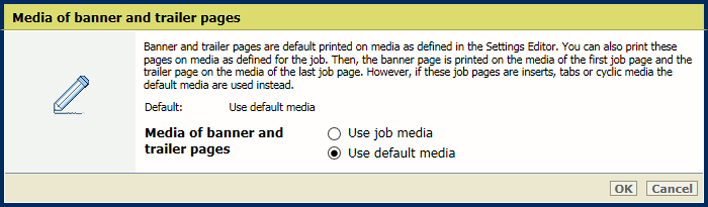

4. Use the [Media of banner / trailer pages] option to define how the media of banner pages are selected.

   • [Use job media]: the banner pages are printed on job media.

   • [Use default media]: the banner pages are printed on default media.



5. Click [OK].

Define trailer pages

1. Open the Settings Editor and go to: [Preferences]  → [System settings]  → [Basic] .

   [System settings] tab

2. Use the [Trailer pages for copy jobs] and [Trailer pages for print jobs] options to indicate the use of trailer pages.

   • [Enabled]: trailer pages are added to all jobs.

   • [Disabled]: trailer pages are never added to the jobs.

   Trailer pages for copy jobs

   ----------------------------------------------

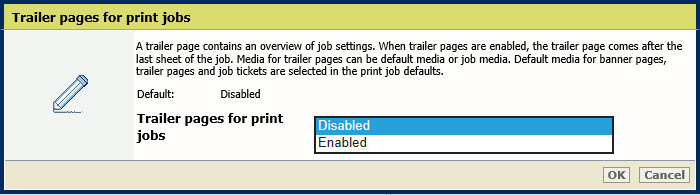

   Trailer pages for print jobs

3. Click [OK].

4. Use the [Media of banner / trailer pages] option to define how the media of trailer pages are selected.

   • [Use job media]: the trailer pages are printed on job media.

   • [Use default media]: the trailer pages are printed on default media.



Define the default media of banner and trailer pages

Define the default media of banner and trailer pages when you have selected [Use default media] in the [Media of banner / trailer pages] option.

1. Open the Settings Editor and go to: [Preferences]  → [Print job defaults] .

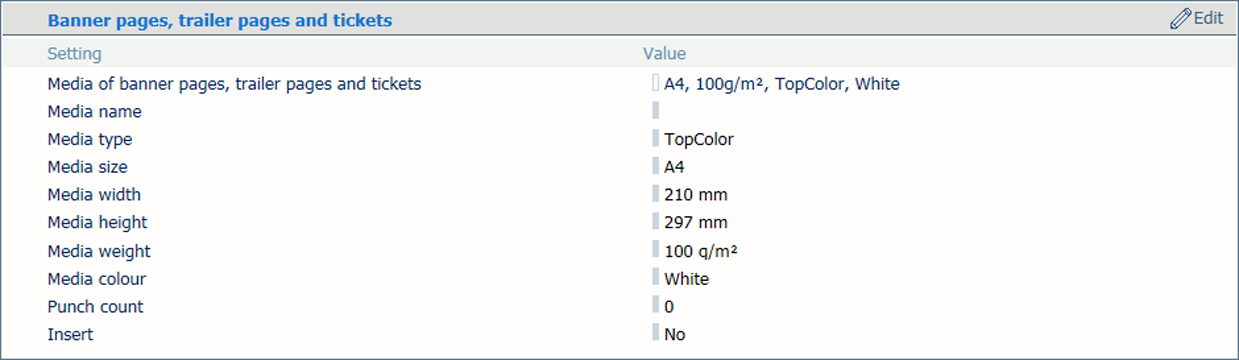

   Media setting for banner pages, trailer pages and tickets

2. Use the [Media of banner pages, trailer pages and tickets] option to select the default media of banner and trailer pages.

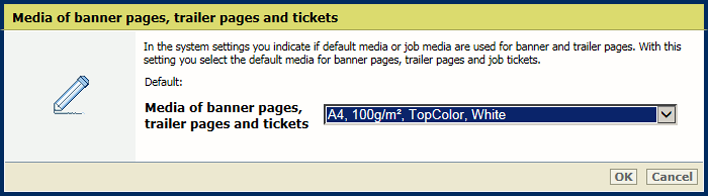

   Default media of banner pages, trailer pages and tickets

3. Click [OK].

Define the default media of separator sheets

1. Open the Settings Editor and go to: [Preferences]  → [Print job defaults] .

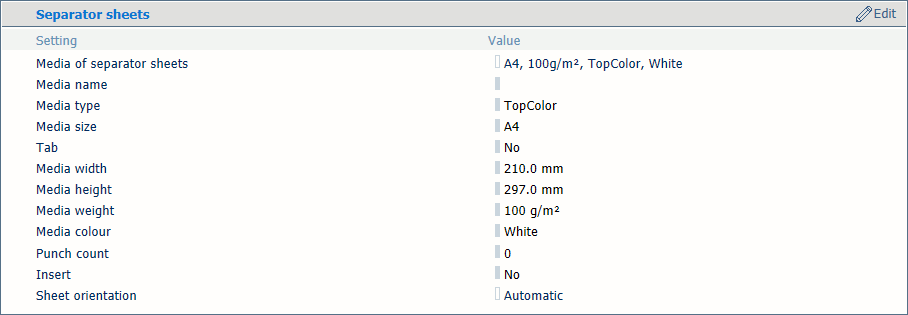

   Media setting for separator sheets

2. Use the [Media of separator sheets] option to select the default media of the separator sheets.

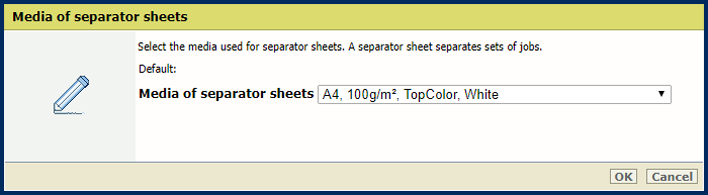

   Default media of separator sheets

3. Click [OK].

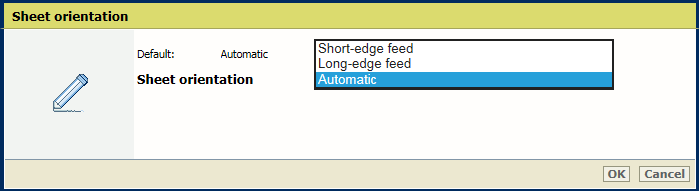

4. Use the [Separator sheets] option to select the sheet orientation of the separation sheets.

   • [Short-edge feed]: separator sheets are delivered in the output tray with short-edge feed direction.

   • [Long-edge feed]: separator sheets are delivered in the output tray with long-edge feed direction.

   • [Automatic]: separator sheets are delivered in the output tray as defined for the job.



5. Click [OK].
