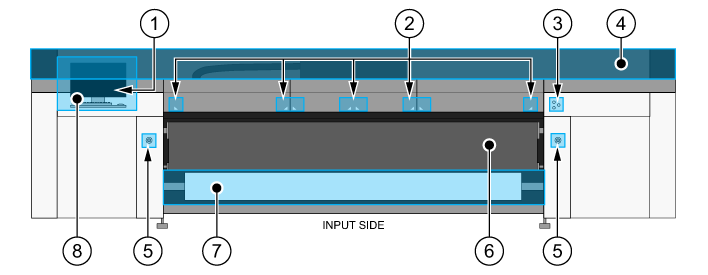

From the media input side you can access the user interface and load media.
|
Number |
Component |
|---|---|
|
1 |
USB port |
|
2 |
Lane indication LEDs |
|
3 |
Media control buttons |
|
4 |
Top cover |
|
5 |
Emergency stops |
|
6 |
Printbelt |
|
7 |
Input roll |
|
8 |
User interface |
|
9 |

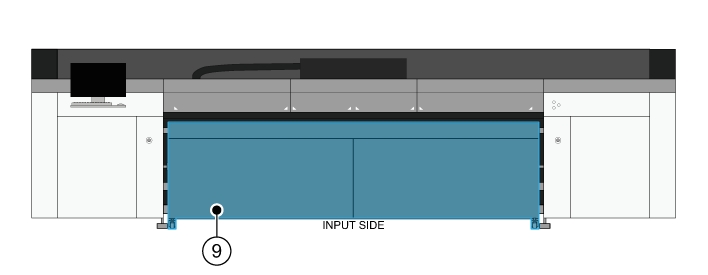

Input table for rigid media (folded) |
*You can install a second user interface on the printer. Both user interfaces display the same information and have a touchscreen. You can attach a keyboard and mouse to both user interfaces, you must supply these yourself. A surface for a mouse and keyboard is included in the standard configuration of the printer, and with the optional second user interface. Installation of this surface is optional.
