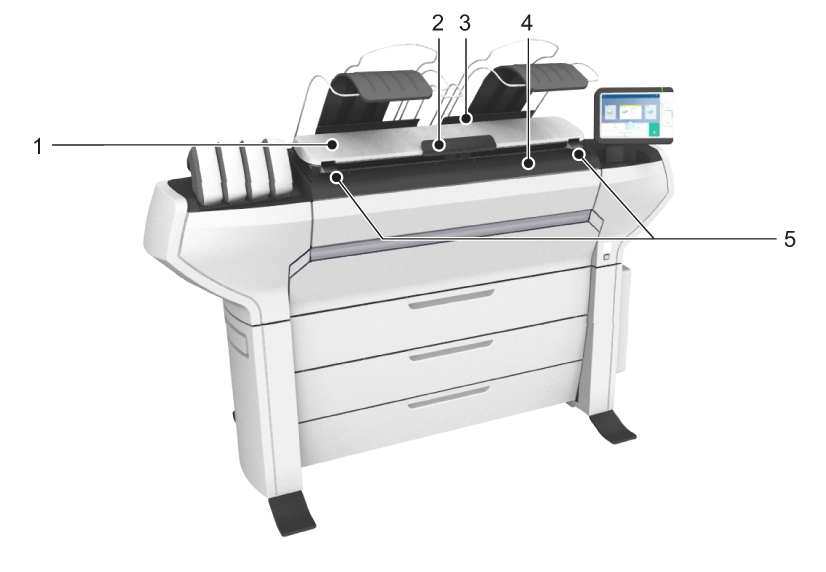

The components of the scanner (optional)

1

[top cover]

Closes off the scanner.

2

[output refeed protector]

Prevents that your output is refed into the scanner.

3

[originals exit]

Exit for the scanned original.

4

[original feeding table]

Use the original feeding table to feed the original into the scanner (face up).

5

[open levers]

Use the open levers to open the top cover of the scanner.

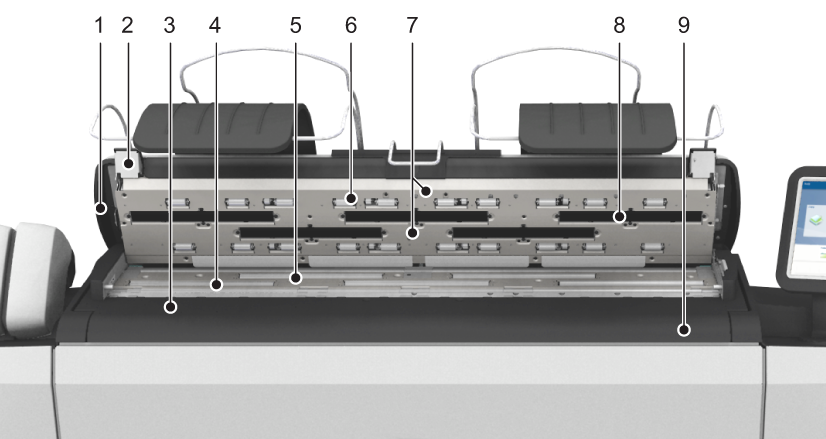

1

[top cover]

Closes off the scanner.

2

[open levers]

Use the open levers to open the top cover of the scanner.

3

[original size ruler]

Use this ruler to measure the original.

4

[original feed rollers]

A set of rollers used to transport the original.

5

[original support rollers]

A set of rollers to guide the original.

6

[scanner top cover rollers]

A set of rollers in the top cover to guide the original.

7

[original sensors]

Sensors to detect the original.

8

[transparent contact plates]

Cover of the image sensors.

9

[original feeding table]

Use the original feeding table to feed the original into the scanner (face up).
