Change the finishing for the job

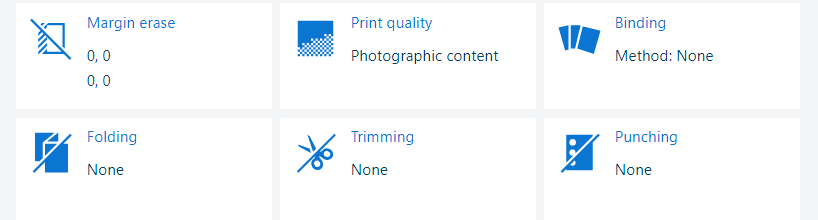

Output settings

Output settings

Change the [Binding] settings

1. Open the job in the [Edit job] app.

2. Click [Binding].

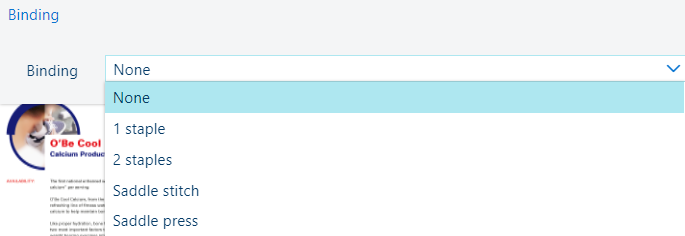

   Binding settings

3. Select one of the [Binding] settings.

   • [None]: no binding method.

   • [1 staple]: bind with one staple. Define the [Location] value.

   • [2 staples]: bind with two staples. Define the [Location] value.

   • [Saddle stitch]: staple folded booklets. Define the [Location] value.

   • [Saddle press]: staple booklets with a compressed spine. Define the [Location] and [Pressure strength] values.

   NOTE

   The binding settings depend on the finisher and booklet maker that is connected to the printer.

4. Close the pop-up window.

5. Click [OK] to save the changes.

Change the [Folding] settings

1. Open the job in the [Edit job] app.

2. Click [Folding].

3. Select one of the [Folding] settings.

   NOTE

   The folding settings depend on the folder that is connected to the printer.

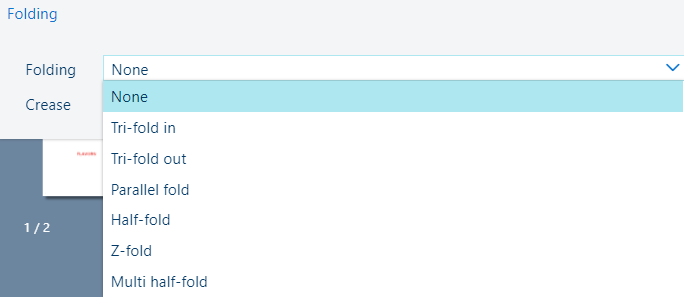

   Folding settings

   Folding settings
   [None]	[Tri-fold in]
   [Tri-fold out]	[Parallel fold]
   [Z-fold]	[Half-fold] [Multi half-fold]  [Multi half-fold] folds multiple sheets.

4. Close the pop-up window.

5. Click [OK] to save the changes.

Change the [Crease] settings

Creasing is performed by an inline finisher that can also punch hole patterns.

Creasing facilitates the folding process. The quality of the physical fold can improve when the sheets have been creased beforehand.

1. Open the job in the [Edit job] app.

2. Click [Folding].

3. Select one of the [Crease] settings.

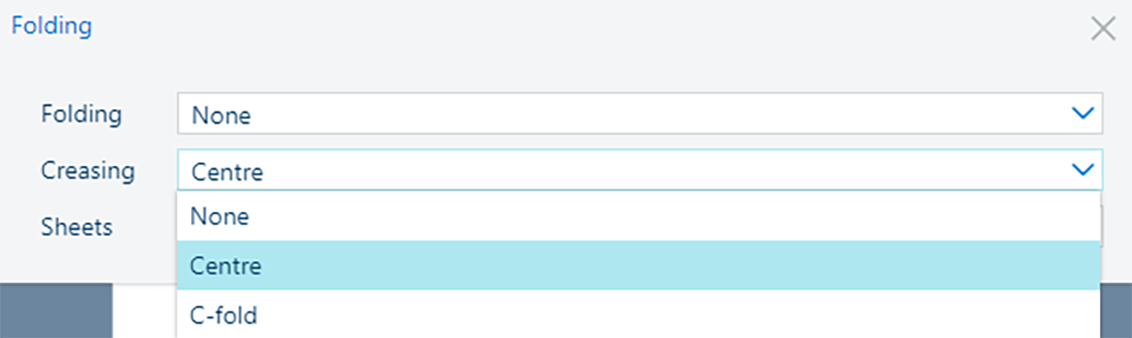

   [Crease] setting

4. With the [Sheets] setting, indicate which sheets need to be creased.

   NOTE

   The creasing settings depend on the die set that is installed on the professional puncher.

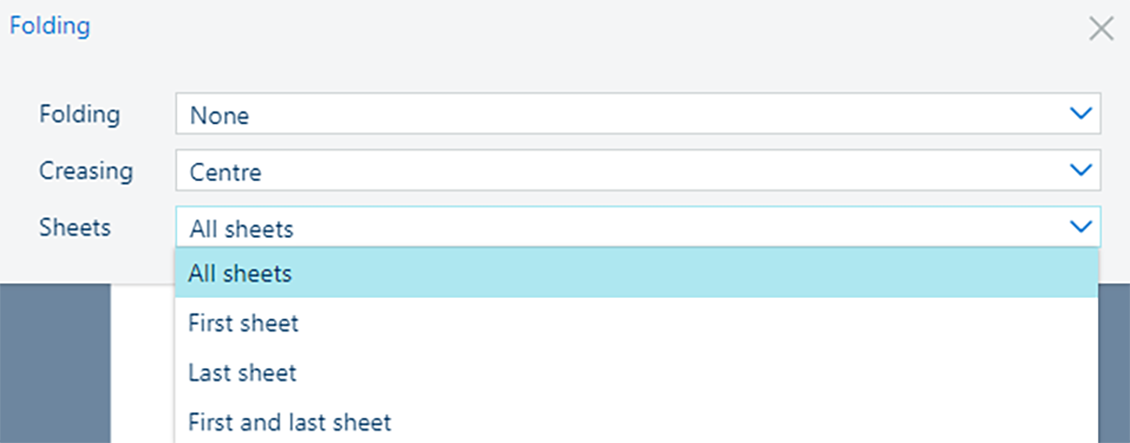

   [Sheets] setting

5. Close the pop-up window.

6. Click [OK] to save the changes.

Change the [Punching] settings

1. Open the job in the [Edit job] app.

2. Click [Punching].

3. Select one of the [Punching] settings.

   NOTE

   The punching settings depend on the finisher that is connected to the printer.

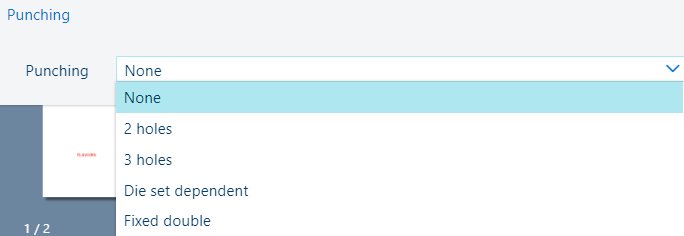

   Punching settings

   • [None]: no punching.

   • [2 holes]: punching with two holes.

   • [3 holes]: punching with three holes.

   • [Die set dependent]: punching with the hole pattern of the installed die set.

   • [Fixed double]: punching with two rows of holes.

4. Close the pop-up window.

5. Click [OK] to save the changes.

Use the [Trimming] settings

Use the [Trimming] setting to indicate how to trim the printed documents.

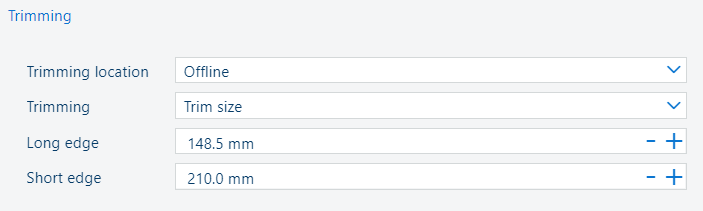

Trimming settings

1. Open the job in the [Edit job] app.

2. Click [Trimming].

3. In the [Trimming location] setting, select [Inline] or [Offline].

4. In the [Trimming] setting, select [Finishing size] or [Trim size] 

5. If you select [Finishing size], select the required size from the [Size] list.

   If you select [Trim size], use the [Long edge] and [Short edge] fields to enter a value.

   NOTE

   The notation {0} refers to the trim size in mm or inches.

6. Close the pop-up window.

7. Check the result in the realistic preview.

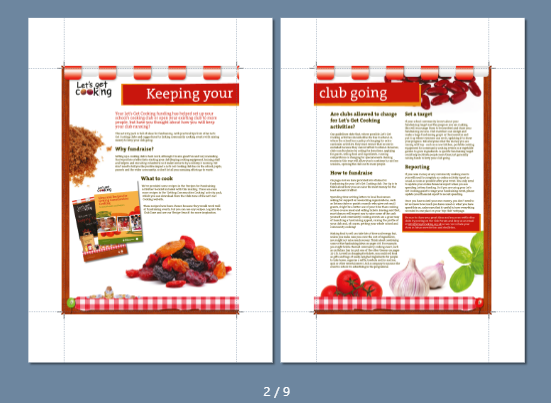

   Trim marks

8. Click [OK] to save the changes.
