Refill the toner

Introduction

With the completely closed toner system, you can easily refill toner.

About this task

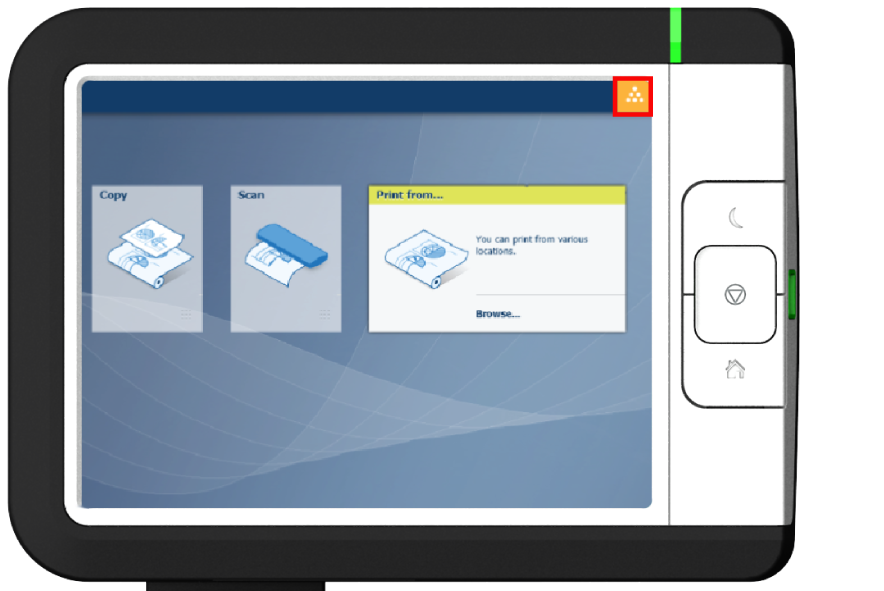

When a ‘Toner Low’ message appears on the user panel, you need to refill the toner. The message will be displayed until you refill the toner. Under normal conditions the printer can finish the current job, before it stops printing.

Before you begin

  • You can leave the printer turned on when you refill the toner.

  • Make sure you use toner suitable for the plotWAVE T75.

  • You must use only one bottle of toner at a time. If you use more than one bottle, the compartment will flood and toner will spill.

  • When you have refilled two toner bottles, you must also replace the residual toner container. For more information, see Replace the residual toner container.

Procedure

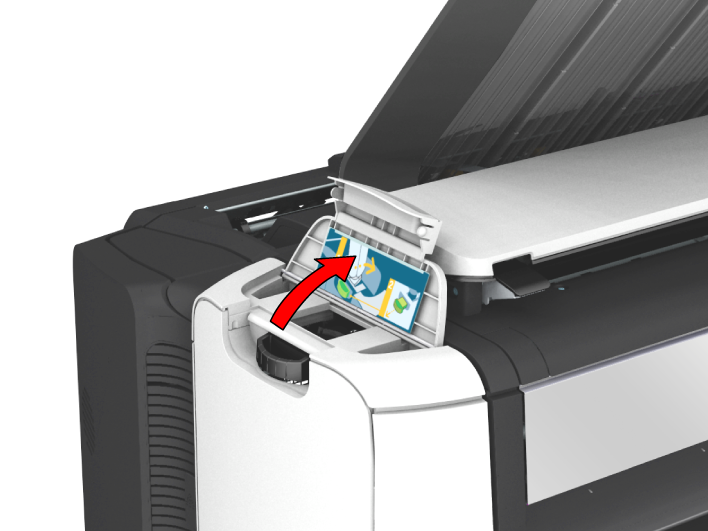

  1. Open the toner compartment.
  2. Shake the toner bottle well. Leave the bottle closed.
  3. Place the bottle on the refill opening of the toner unit.

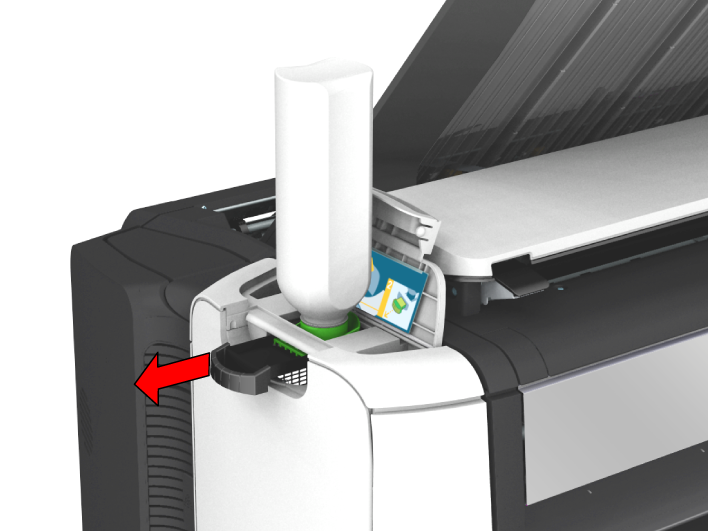

  4. Pull the slider towards you to open both the bottle and the refill opening of the toner unit.
  5. Tap the toner bottle gently (sideways), to let the toner flow from the bottle.

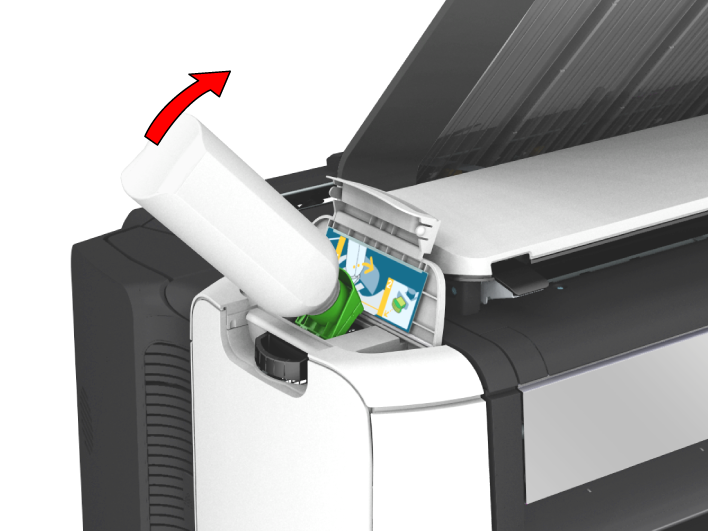

  6. When the toner bottle is empty, return the slider of the toner unit to the original position to close the refill opening and the toner bottle. You can now remove the toner bottle from the opening.
