The Settings Module allows you to review and change the date and time, network connection settings, user interface configurations, printer settings and, if installed, the Roll Media settings.

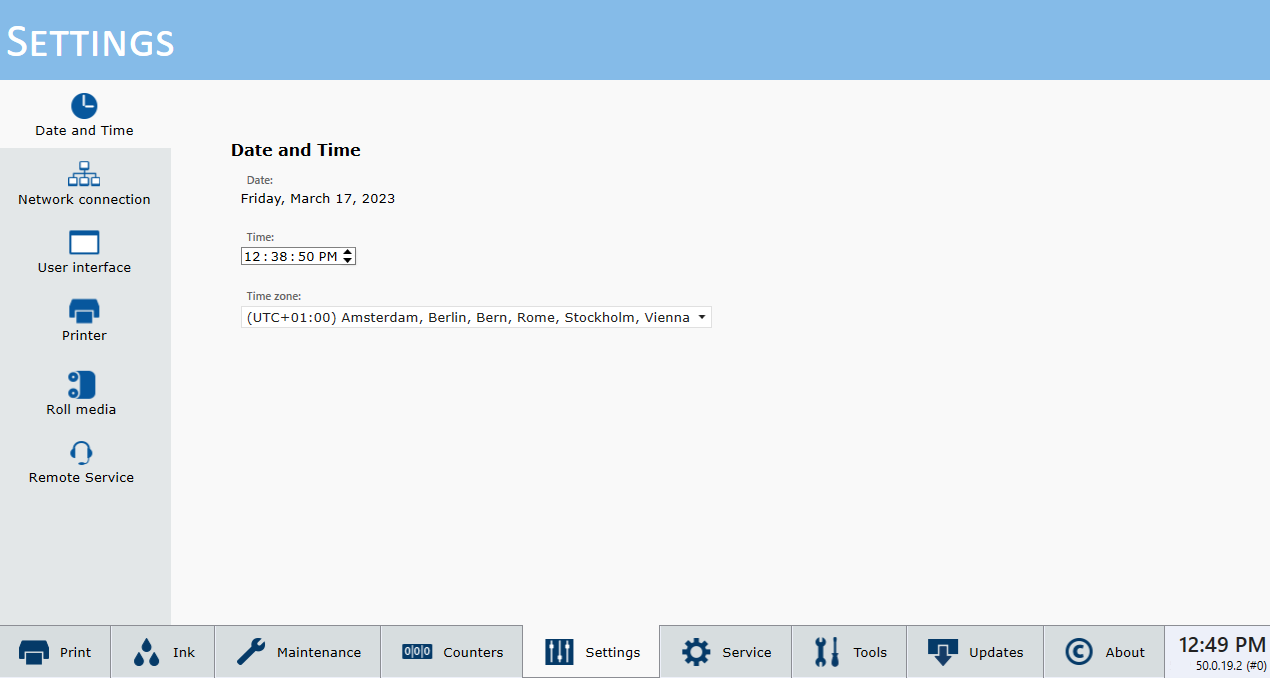

Date - display only, cannot change the date
Time - change the time of day, if required
Whether Daylight Savings Time is set
Time Zone - select the time zone for the printer location

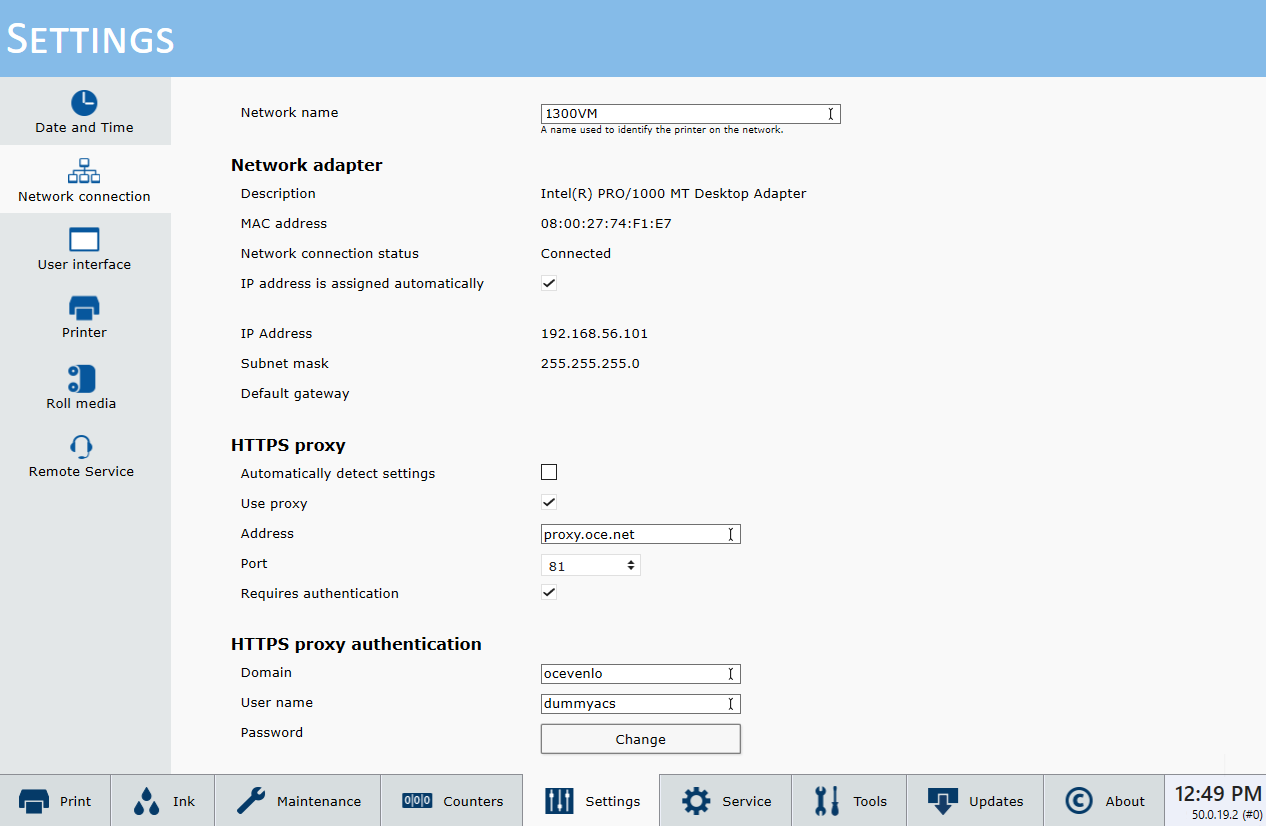

Typically, DHCP is used to automatically obtain network settings. If "Use DHCP" is selected, the only thing you might want to change is the network name of the printer. The settings are displayed to troubleshoot possible network connection problems. One situation that would require changes is if your network does not use DHCP to automatically obtain network settings. In this case network settings have to be entered manually. If you don't know how to do this, bring in a network consultant to determine what the setting must be for the network (alternately, you can purchase a DHCP router for your network that will automatically supply the network settings).
Network Name
Printer Description
Network Adapter Name
MAC Address
Network Status
Use DHCP
IP Address
Subnet Mask
Default Gateway
[HTTPS proxy]
[HTTPS proxy authentication]
A network name for the printer cannot consist of numeric characters only - it must be a mix of alpha-numeric characters.
If the Printer name is changed, the printer must be restarted for the change to take effect.
If any settings require a printer restart, a reminder will be displayed when that settings is selected.

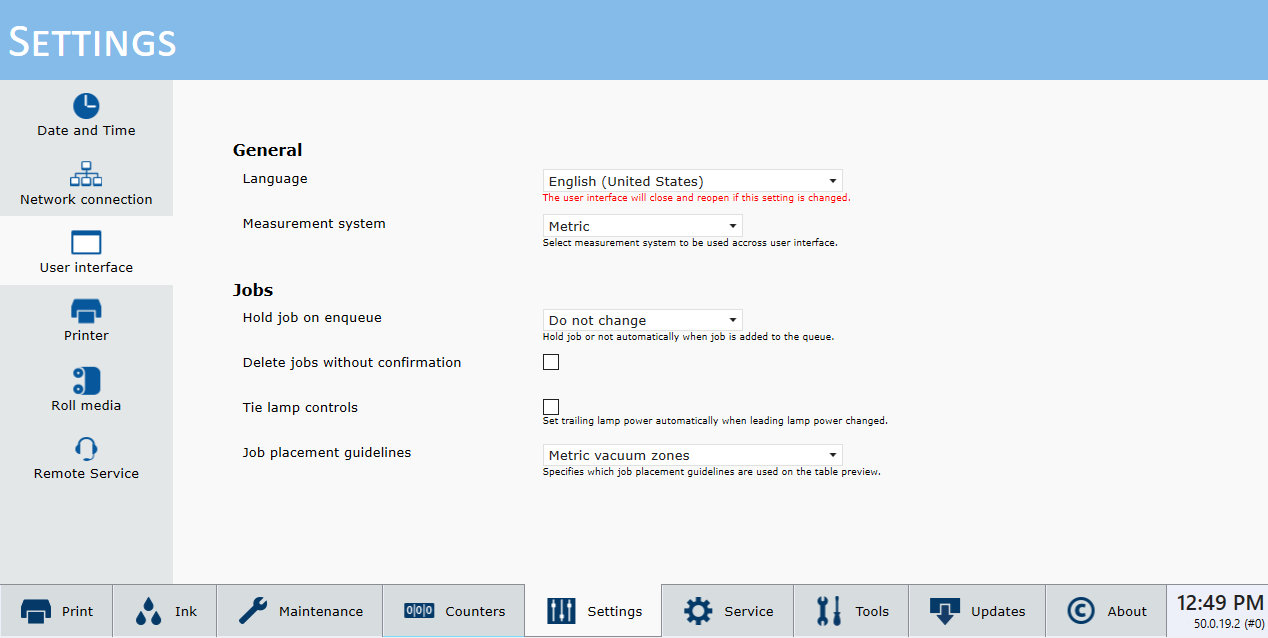

The user interface allows you to change the following features:
Language
Measurement Units
Hold on queue
Delete jobs without confirmation
Tie lamp controls
Job placement guidelines

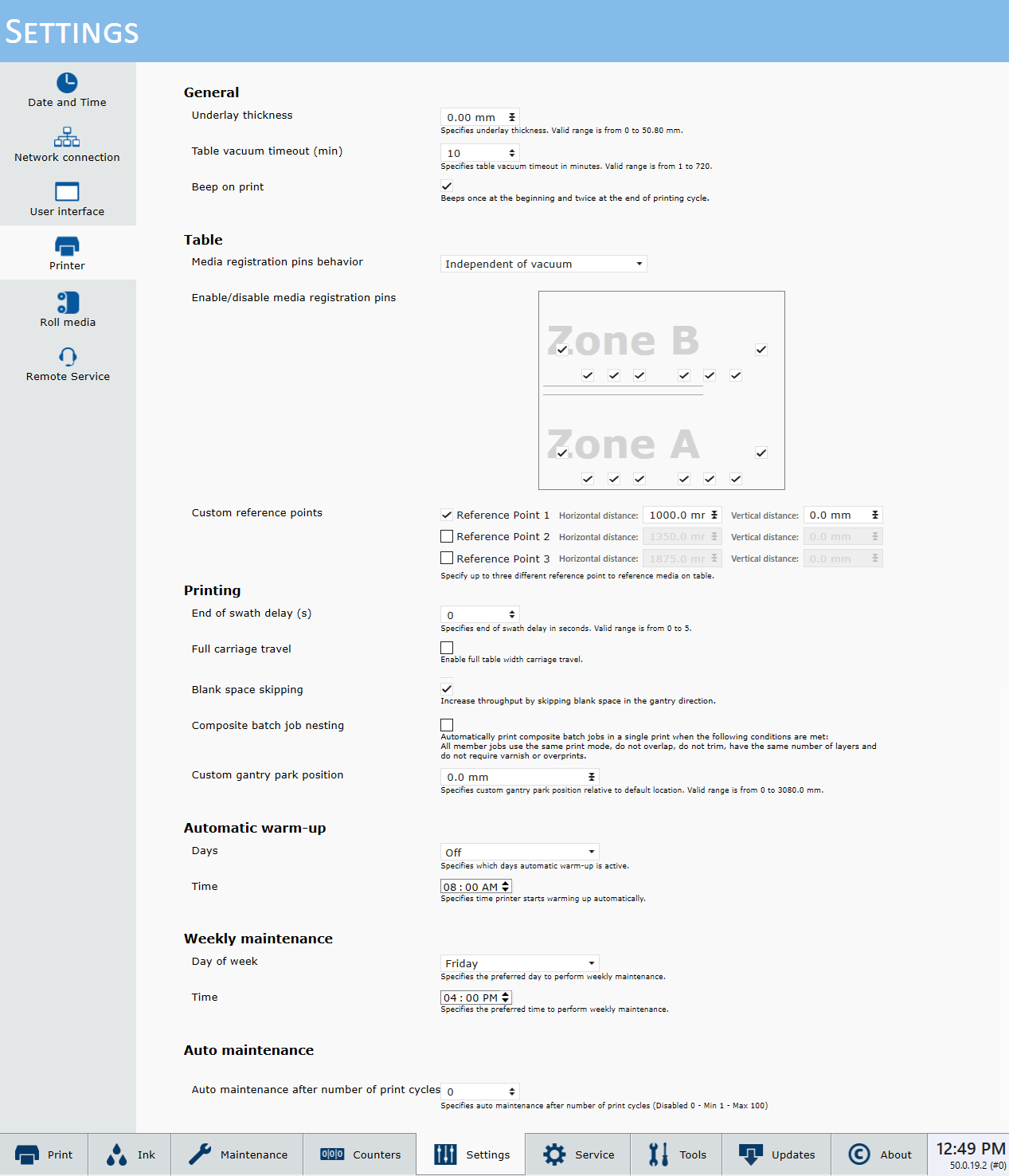

Allows you to set the following:
Underlay thickness
Table vacuum timeout
Beep on print
Media registration pins behavior
Enable/disable media registration pins
Custom reference points
End of swath delay
Full carriage travel
Blank space skipping
Composite batch job nesting
Custom gantry park position
Automatic warm-up days and time
Weekly Maintenance Day
Weekly Maintenance Time
Auto maintenance after number of print cycles
Job top margin
Specifies the distance to be left not printed above the image.
Job bottom margin
Specifies the distance to be left not printed below the image.
Roll media move on unload
Specifies the amount of media moved on unload in the selected measurement units.
This setting icon is displayed only if the Roll Media Option is installed.

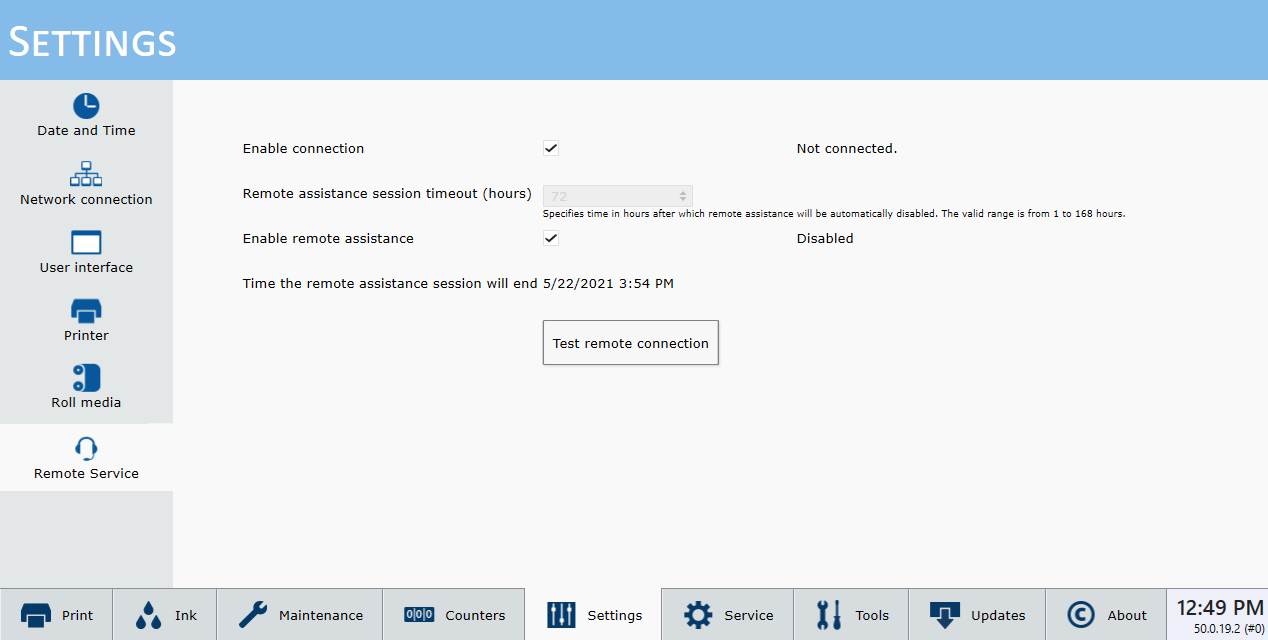

Allows you to set the following:
[Enable connection]
[Remote assistance session timeout (hours)]
[Enable remote assistance]
See Enable the Remote Service connection for more information.
