[Ink coverage]

Introduction

This report displays the used media during a period, calculated per media size and ink coverage.

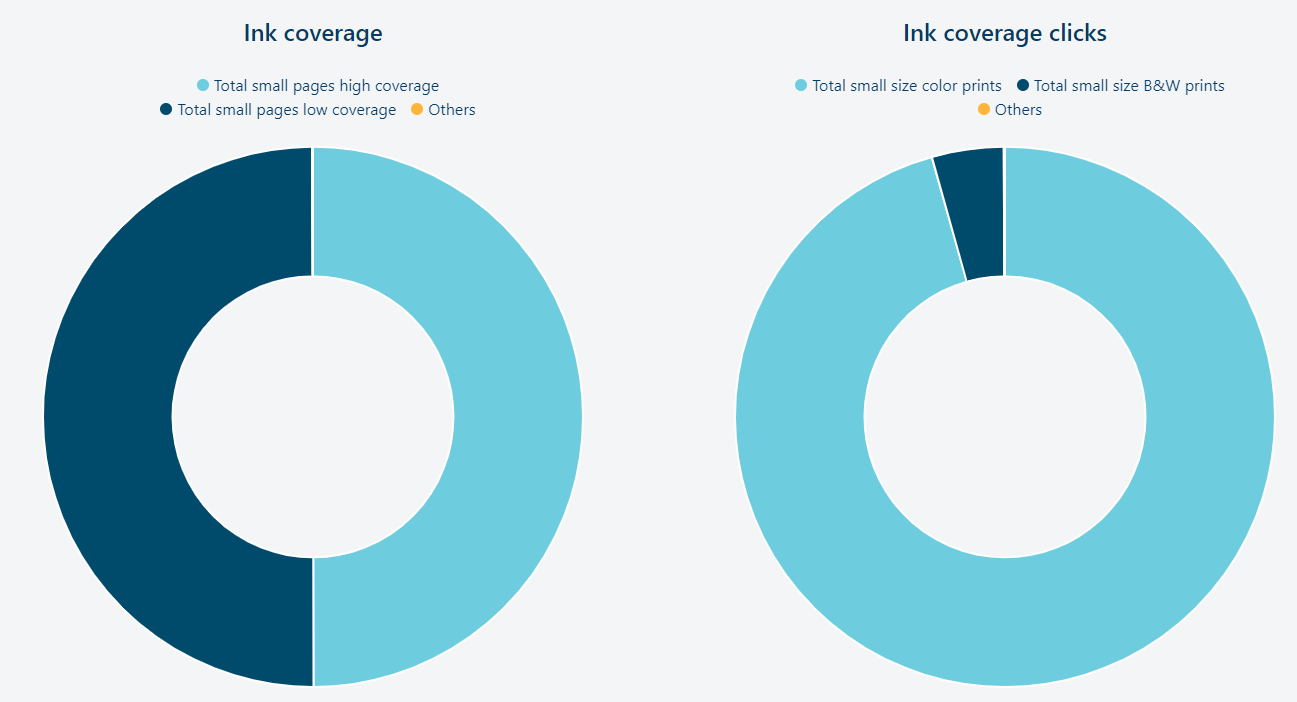

The report is available in tabular form, as a table, or in graphical form, as a twin donut-chart.

Illustration

Fields in this report

Field

Description

[Job ID]

Numerical identifier of the job.

[Start date]

The date when the job has started printing.

[End date]

The date when the job has finished printing.

[Result]

The state of the completed job:

  • DONE if the job completed successfully

  • ABRT if the job was aborted

  • STOP if the job was temporarily stopped but not removed

[Job name]

Name of the job.

[Number of finished sets]

Number of finished sets.

[Total small size B&W prints]

The number of inserts or printed A4-like sides containing only black and white information.

[Total small size color prints]

The number of printed A4-like sides containing color information.

[Total large size B&W prints]

The number of inserts or printed A3-like sides containing only black and white information.

[Total small size color prints]

The number of printed A4-like sides containing color information.

[Small pages low coverage]

Small pages with low coverage.

[Small pages medium coverage]

Small pages with medium coverage.

[Small pages high coverage]

Small pages with high coverage.

[Large pages low coverage]

Large pages with low coverage.

[Large pages medium coverage]

Large pages with medium coverage.

[Large pages high coverage]

Large pages with high coverage.

[Ink Black]

Amount of black ink on black and white pages.

[Cyan]

Amount of cyan ink on color pages.

[Magenta]

Amount of magenta ink on color pages.

[Yellow]

Amount of yellow ink on color pages.

[Ink Black]

Amount of black ink on color pages.

[ColorGrip]

Amount of ColorGrip liquid. ColorGrip liquid is also known as "primer".

[Media name]

Descriptive name for media.

[Media weight]

Weight of media.

[Media format]

Name specifying the format of media.

[Media print mode]

The name of the used media print mode for media.
