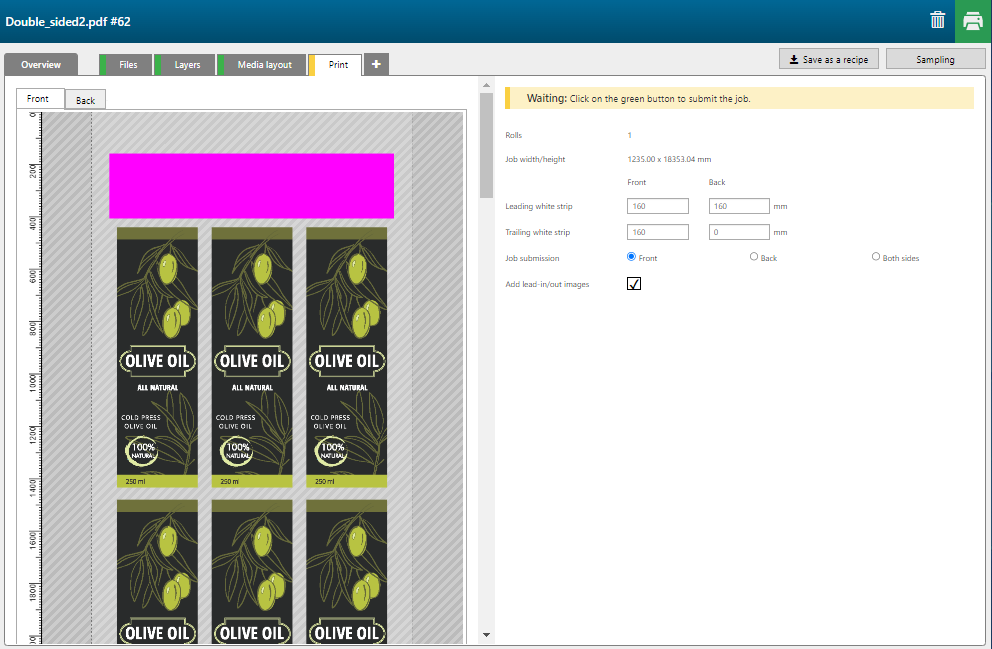

In the [Print] tab shows a graphical representation of the print surface and allows you to change the print related settings.
NOTE
The preview shows the first and the last 5 meters. PRISMAguide XL Engine supports jobs up to 100 meters long.
|
Settings category |
Setting |
Description |
|---|---|---|
|
[Rolls] |
The number of rolls is calculated automatically. It depends on the number of copies and the size of the media. |
|
|
[Job width/height] |
Calculated value. Cannot be changed. |
|
|
[Leading white strip] |
[Front] |
You can add a [Leading white strip] before a job, to add white space when using it with finishers, such as for taping media to the winder. |
|
[Back] |
||
|
[Trailing white strip] |
[Front] |
You can add a [Trailing white strip] after the job, to add white space after an image before you make a cut. |
|
[Back] |
||
|
[Job submission] |
[Front] |
You can decide if you want to submit the [Front] and [Back] at once to the printer or just one at a time. |
|
[Back] |
||
|
[Both sides] |
||
|
[Add lead-in/out images] |
The lead-in and lead-out images are used by the [Automatic Advance Correction (AAC)] to measure and correct for double sided printing. |
