The synchronization mode determines how the synchronization area must be synchronized. There are three synchronization modes.
[Merge all cluster printers]: The resource entries of each cluster printer are extended with the resource entries of all other cluster printers.
[Merge with main printer ]: The resource entries of cluster printers 2 and higher are extended with the resource entries of the main printer.
[Overwrite by main printer]: The resources of the printers 2 and higher are overwritten by the resources of the main printer.
PRISMAsync Remote Match positions the cluster printers according to the selected synchronization mode. For the [Merge with main printer ] and [Overwrite by main printer] synchronization modes, printer 1 is called the main printer and is positioned at the top of the cluster.

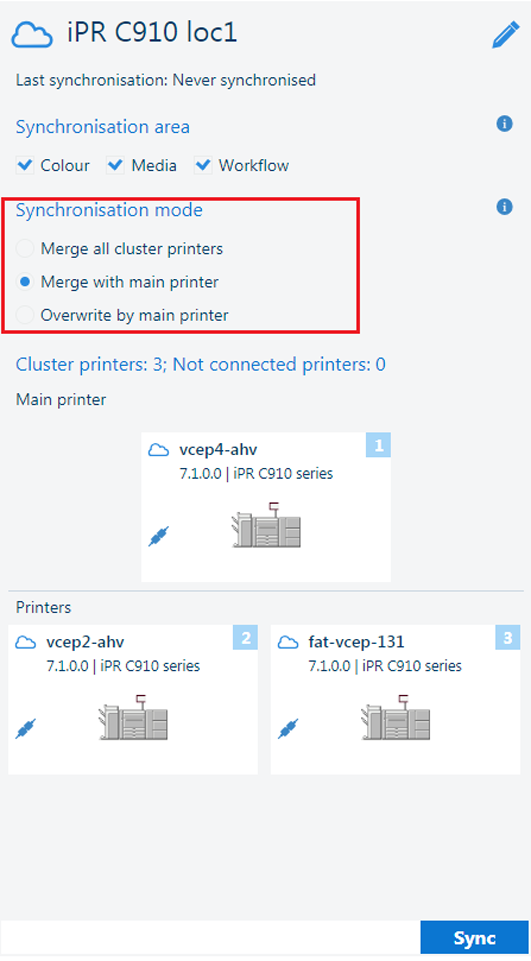

[Merge with main printer ] option |

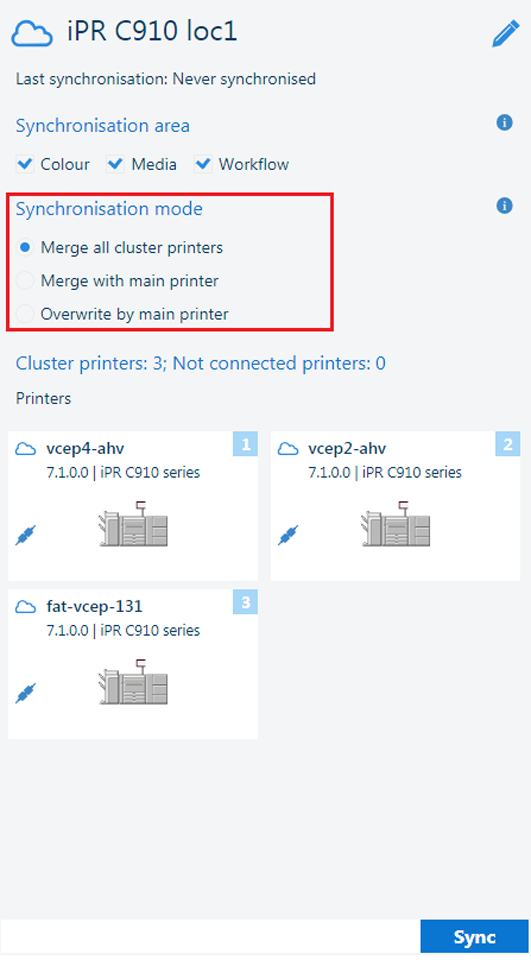

[Merge all cluster printers] option |
IMPORTANT
Be aware that all synchronization modes can cause a loss of resource entries.
This mode fits the following print environments.
Several users configure the printers of the same printer series and version.
The current printer resource entries must remain available at the printer.
The current printer resource entries must also become available at the other cluster printers.
Example 1: [Merge all cluster printers]
A cluster has three printers: 1, 2, and 3.
The resource is: [Workflow].
Printer 1 has automated workflows: A and B; Printer 2 has automated workflows: Q and R; Printer 3 has automated workflow Y.
After the synchronization:
The resource entries A, B, Q, R, and Y are available at printers 1, 2, and 3.
Example 1: [Merge all cluster printers] Example 2: [Merge all cluster printers]
A cluster has three printers: 1, 2, and 3.
The resource is: [Workflow].
The printers have resource entries with the same name. Printer 1 has automated workflows: A; Printer 2 has automated workflows: A and B; Printer C has automated workflow B.
After the synchronization:
The priority of the cluster printers determines which resource entry 'wins' and which resource entry will be removed.
For resource entry A: printer 1 'wins', because it has a higher priority than printer 2.
For resource entry B: printer 2 'wins', because it has a higher priority than printer 3.
Example 2: [Merge all cluster printers] This mode fits the following print environments.
Several users configure the printers of the same printer series and version.
The current printer resource entries must remain available at the printer.
The resource entries of the main printer must also become available at the other cluster printers.
Example 1: [Merge with main printer ]
A cluster has three printers: 1, 2, and 3.
The resource is: [Workflow].
Printer 1 has automated workflows: A and B; Printer 2 has automated workflows: Q and R; Printer 3 has automated workflow Y.
After the synchronization:
The resource entries A and B are now also available at printer 2 and 3.
Example 1: [Merge with main printer ] Example 2: [Merge all cluster printers]
A cluster has three printers: 1, 2, and 3.
The resource is: [Workflow].
The printers have resource entries with the same name. Printer 1 has automated workflows: A; Printer 2 has automated workflows: A and B; Printer C has automated workflow B.
After the synchronization:
The priority of the cluster printers determines which resource entry 'wins' and which resource entry will be removed.
For resource entry A: printer 1 'wins', because it has a higher priority than printer 2.
Example 2: [Merge with main printer ] This mode fits the following print environments.
One user configures the printers of the same printer series and version.
The resource entries of the main printer must become available at the other cluster printers.
The current printer resource entries are replaced by the resource entries of the main printer.
Example 1: [Overwrite by main printer]
A cluster has three printers: 1, 2, and 3.
The resource is: [Workflow].
Printer 1 has automated workflows: A and B; Printer 2 has automated workflows: Q and R; Printer 3 has automated workflow Y.
After the synchronization:
The resource entries A and B of the main printer are now available at printer 2 and 3.
The resource entries Q, R, and Y have been removed.
Example 1: [Overwrite by main printer] Example 2: [Overwrite by main printer]
A cluster has three printers: 1, 2, and 3.
The resource is: [Workflow].
The printers have resource entries with the same name. Printer 1 has automated workflows: A; Printer 2 has automated workflows: A and B; Printer C has automated workflow B.
After the synchronization:
The resource entry A of the main printer is now available at printer 2 and printer 3.
The resource entries A (of printer 2) , B, and Y are overwritten.
Example 2: [Overwrite by main printer] The [Color calibration] and [Color defaults] settings always use the [Overwrite by main printer] synchronization mode. The reason is that it is not possible to merge [Color calibration] and [Color defaults] settings.
The [Color calibration] and [Color defaults] settings of printer 1 are applied.
NOTE
Printer 1 is the main printer for the [Overwrite by main printer] and [Merge with main printer ] modes.
