Print a [Double sided banner] application

Introduction

With the [Double sided banner] recipe you can create banners printed on both sides.

Launch the ONYX Thrive RIP Queue.
Open a PDF that you want to print using the [Double sided banner] recipe.
NOTE
The PDF must contain two pages, one for the front and one for the back side of the banner.

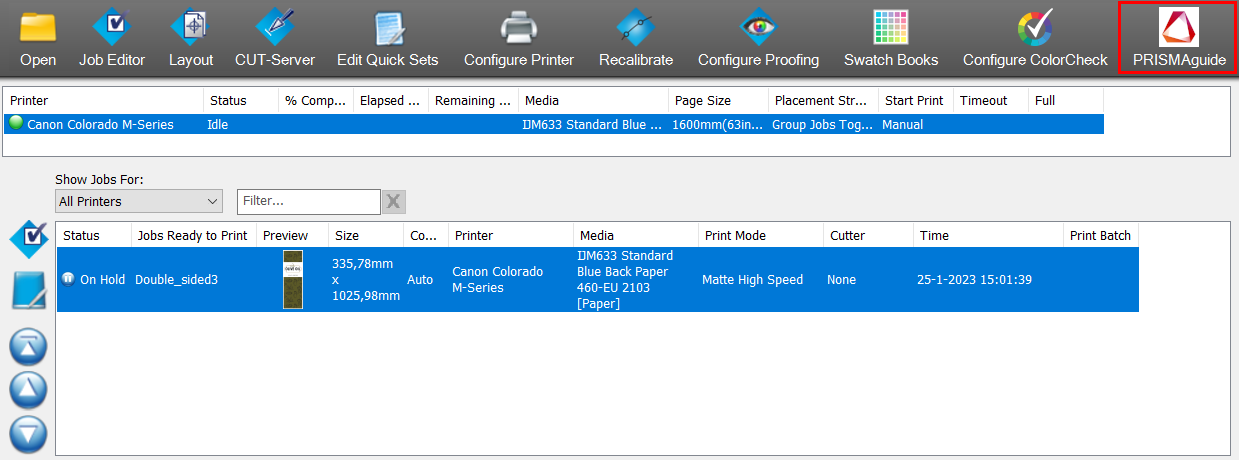

Select your PDF and click on the [PRISMAguide] button.
Select the [Double sided banner] recipe.

The [Overview] tab opens.

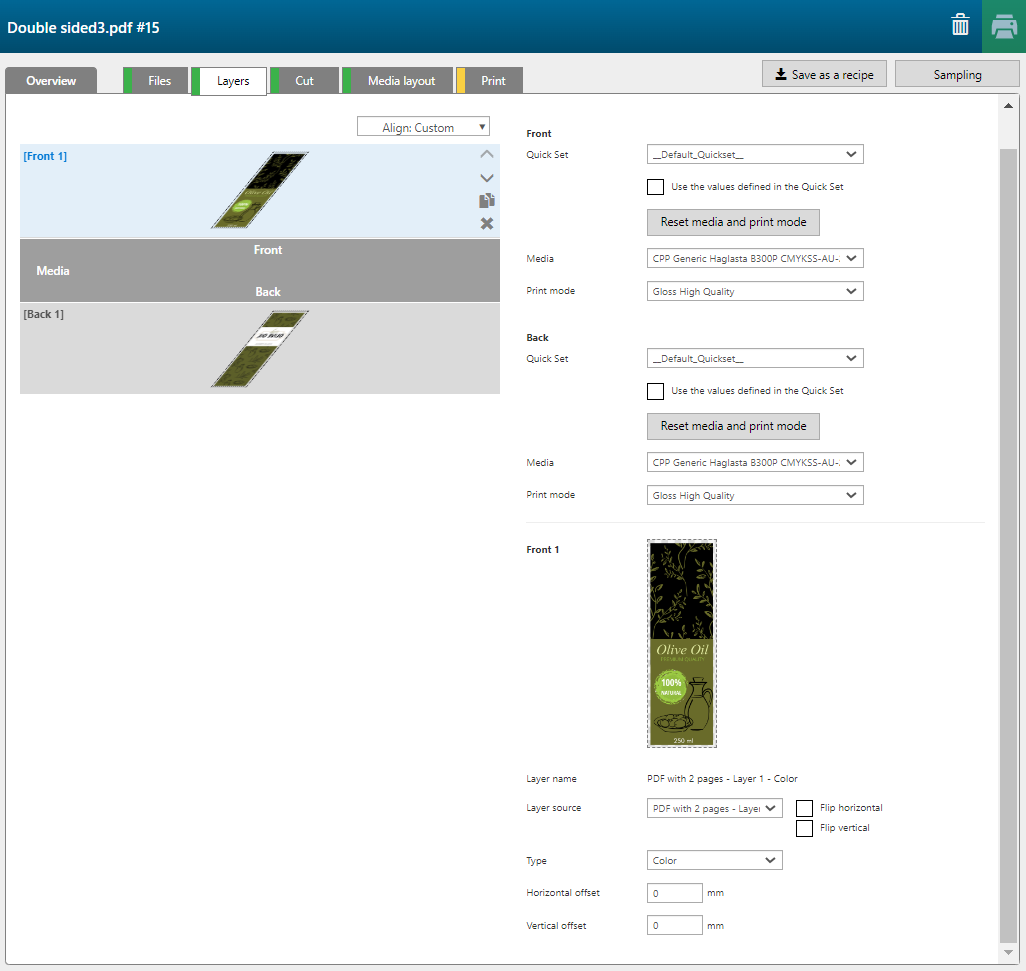

Open the [Layers] tab and check the settings.

The recipe automatically assigns the settings per layer.

The [Double sided banner] recipe consists of 2 layers, one for the front, one for the back side of the media.

Layer	[Layer source]	[Type]	Remark
[Front] 1	PDF with 2 pages -P1	[Color]	The image is printed in CMYK.
[Back] 1	PDF with 2 pages -P2	[Color]	The image is printed in CMYK.

Open the [Print] tab.
In the recipe the [Leading white strip] and [Trailing white strip] are automatically selected and set to 1600 mm. Also the [Add lead-in/out images] are printed.
The [Job submission] is set to [Both sides].
This means that the [Front] and [Back] are submitted to the ONYX Thrive RIP Queue at once. The operator decides which one he wants to submit to the printer.
Click on the [Print] button to submit the job to the ONYX Thrive RIP Queue.
