This topic describes the following instructions.
Go to the tolerance levels for colour evaluations
View tolerance levels for measurement accuracy of media family calibration with i1Pro3 spectrophotometer (i1Pro2 also supported)
View tolerance levels for paper white and primary colour measurement of media family calibration with i1Pro3 spectrophotometer (i1Pro2 also supported)
View tolerance levels for the G7® verification with i1Pro3 spectrophotometer (i1Pro2 also supported)
The evaluation of media family calibration and G7® verification results are based on set tolerance levels.
Colour evaluation methods use metrics to decide if printed colours are close enough to their reference colours or not. A tolerance level or threshold level is set before the evaluation takes place. The level specifies where a calculated difference is still acceptable and where not. A tolerance level is also expressed by a △ (Delta) value.
You cannot change or add tolerance levels for the media family calibration or G7® verification.

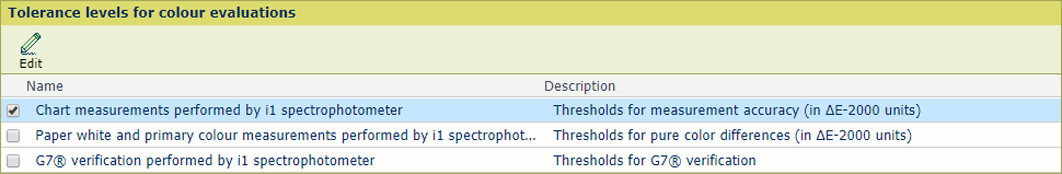

Open the Settings Editor and go to: .

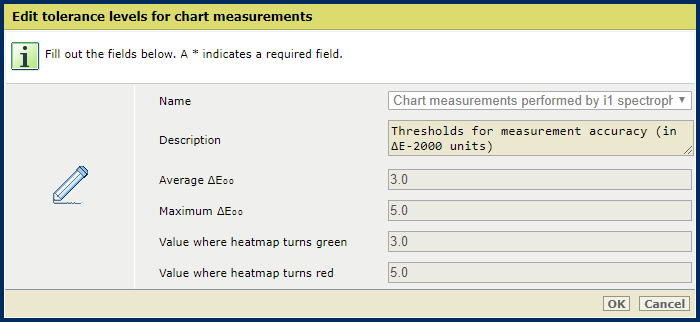

Select [Chart measurements performed by i1 spectrophotometer].
Click [Edit].
Click [OK].

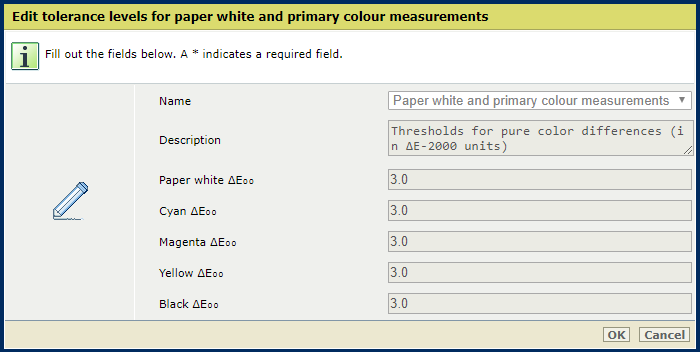

Select [Paper white and primary colour measurements performed by i1 spectrophotometer].
Click [Edit].
Click[OK] .

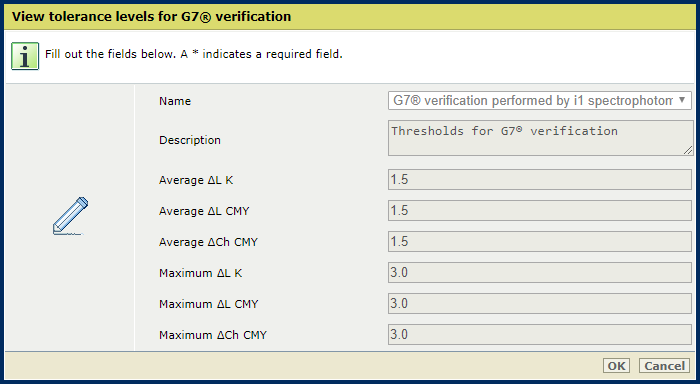

Select [G7® verification performed by i1 spectrophotometer].
Click [Edit].
Click [OK].
