Introduction

This report displays the used media during a period, printed using the MICR technology (= Magnetic Ink Character Recognition).

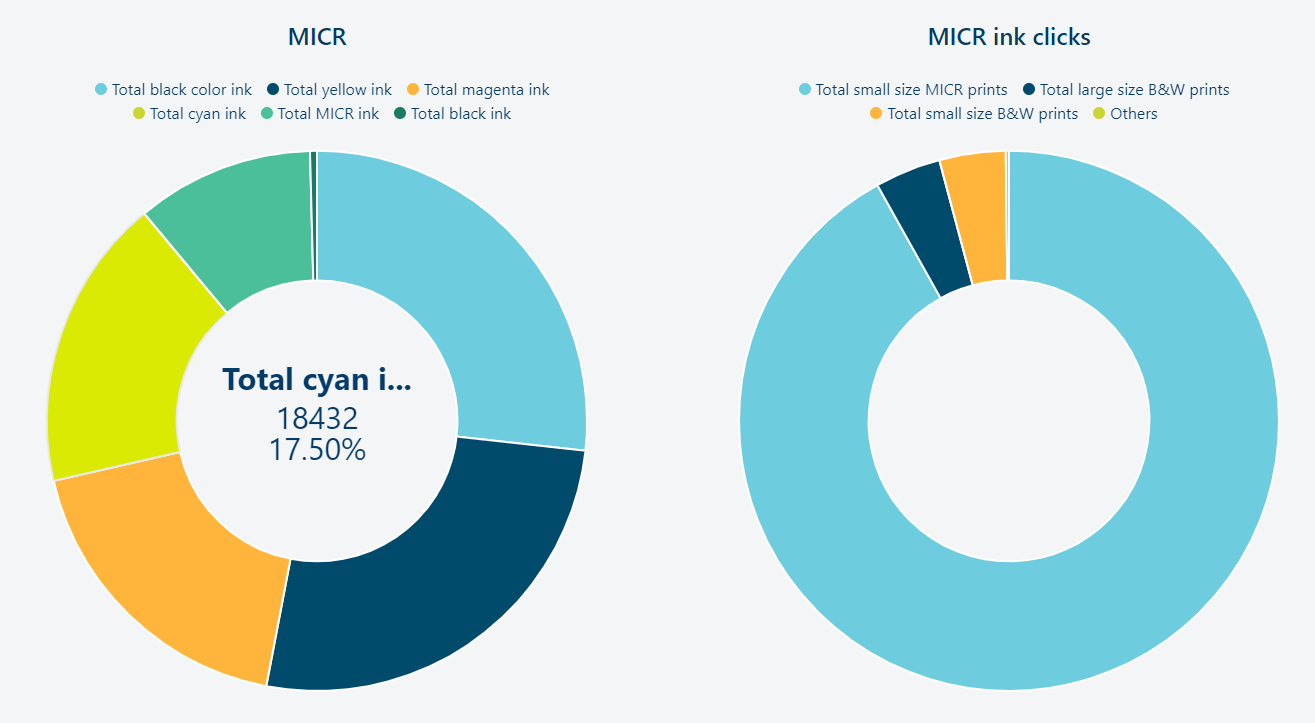

The report is available in tabular form, as a table, or in graphical form, as a twin doughnut-chart.

Illustration

Fields in this report

Field

Description

[Job ID]

Numerical identifier of the job.

[Start date]

The date when the job has started printing.

[End date]

The date when the job has finished printing.

[Result]

The state of the completed job:

  • DONE if the job completed successfully

  • ABRT if the job was aborted

  • STOP if the job was temporarily stopped but not removed

[Job name]

Name of the job.

[Number of finished sets]

Number of finished sets.

[Total small size B&W prints]

The number of printed A4-like sides containing only black and white information or inserts.

[Total small size colour prints]

The number of printed A4-like sides containing colour information.

[Total large size B&W prints]

The number of printed A3-like sides containing only black and white information or inserts.

[Total large size colour prints]

The number of printed A4-like sides containing colour information.

[Total small size MICR prints]

Number of printed A4-like sides containing MICR information.

[Total large size MICR prints]

Number of printed A3-like sides containing MICR information.

[Total prints XL MICR]

Number of printed long sheet sides containing MICR information.

[Ink Black]

Amount of black ink on black and white pages.

[Cyan]

Amount of cyan ink on colour pages.

[Magenta]

Amount of magenta ink on colour pages.

[Yellow]

Amount of yellow ink on colour pages.

[Ink Black]

Amount of black ink on colour pages.

[MICR]

Amount of MICR ink.

[ColorGrip]

Amount of ColorGrip liquid. ColorGrip liquid is also known as 'primer'.

[Media name]

Descriptive name for media.

[Media weight]

Weight of media.

[Media format]

Name specifying the format of media.

[Media print mode]

The name of the used media print mode for media.
