Install PRISMAproduce Tech

Introduction

You can only install one version of PRISMAproduce Tech per workstation.

NOTE

PRISMAproduce Tech cannot be installed on a workstation that is in use for Publisher Select.

Before you begin

  • To install or upgrade PRISMAproduce Tech, you must have local admin rights to run the PRISMAproduce Tech service.

    A basic user can start the installer, but will not be able to finish the installation unless admin credentials are provided.

    In that case, you can change the active user, after installation, in [General settings] - [Job owner]

  • For imagePROGRAF printers the corresponding driver also has to be installed and active. You can check by printing a test page.

  • For compatibility and requirements see Compatibility and requirements

When replacing Publisher Select with PRISMAproduce Tech.

PRISMAproduce Tech cannot be installed on a workstation that is in use for Publisher Select.

  1. Make sure you have the printer information and settings from Publisher Select.

  2. Export all templates from Publisher Select.

  3. Uninstall Publisher Select.

  4. Install PRISMAproduce Tech.

  5. Add the printers using the printer information and settings from Publisher Select.

  6. Import the templates.

When upgrading PRISMAproduce Tech

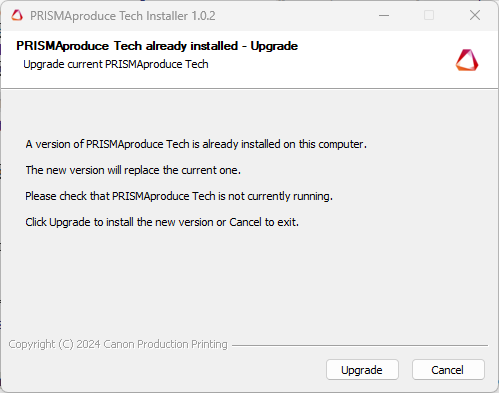

If a previous version of PRISMAproduce Tech is already installed, the installer will recognize this version and propose an upgrade.

Click [Upgrade] to replace the current version with the new version and proceed with the install procedure.

Required tools

The installation files (.exe), downloaded from https://downloads.cpp.canon, under PRISMAproduce Tech - application software.

Procedure

  1. Double-click on the .exe file to launch the installer.
  2. Select your language.
  3. Click on [OK].

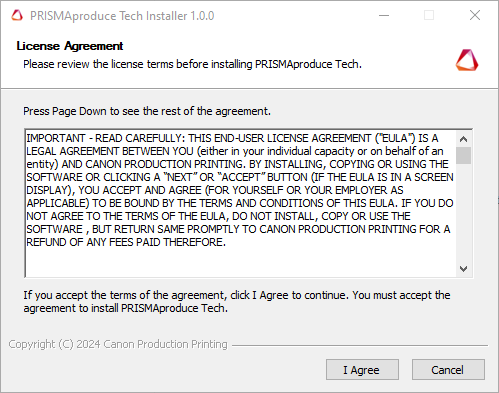

    A License Agreement window is displayed, showing the PRISMAproduce Tech version number.

  4. Read and accept the [License Agreement] to continue. Click on [I Agree].

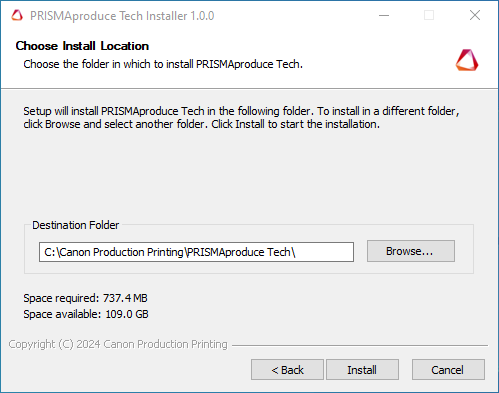

  5. Select the default installation folder (SYSTEM_drive:\Canon Production Printing\PRISMAproduce Tech, on Windows 10 for example) or choose another one. Click on [Install].

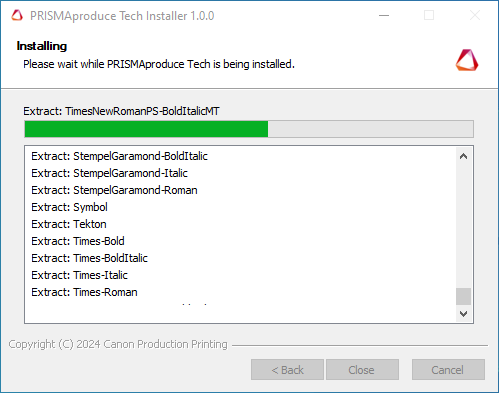

  6. Wait until the installation is completed.

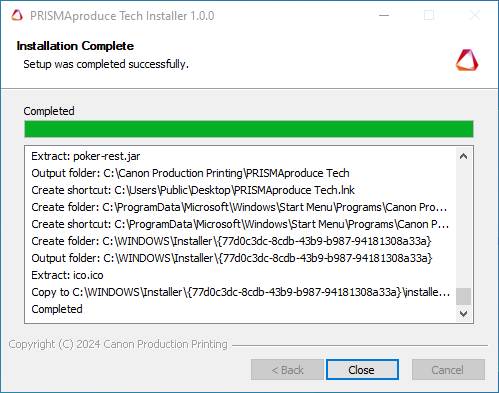

    A confirmation window is displayed.

  7. Click on [Close] to close the window.

Results

PRISMAproduce Tech is available on the workstation:

  • via a shortcut on the desktop

  • via the Windows start menu, under 'Canon Production Printing'.

Shortcut
NOTE

  • It is recommended to launch PRISMAproduce Tech and check the connection to the printer.

  • For imagePROGRAF printers the connect procedure after installation can differ, for more information see Connect or disconnect imagePROGRAF printers.

NOTE

An error message will pop-up and the installation will abort when:

  • The same version of the PRISMAproduce Tech software is already installed.

  • There is not enough free disk space.

Parent topic:
Install and uninstall PRISMAproduce Tech
