Show [Chronologie] view of a printer

The PRISMAlytics Dashboard [Chronologie] view shows the usage of a printer on a timeline. You can use this view to analyse printer events of the last 30 days.

Show the [Chronologie] view

1. Select a printer.

2. Select the [Chronologie] view.



3. Select the period that reflects the information you want to display.



Read the [Utilisation de l’imprimante] information

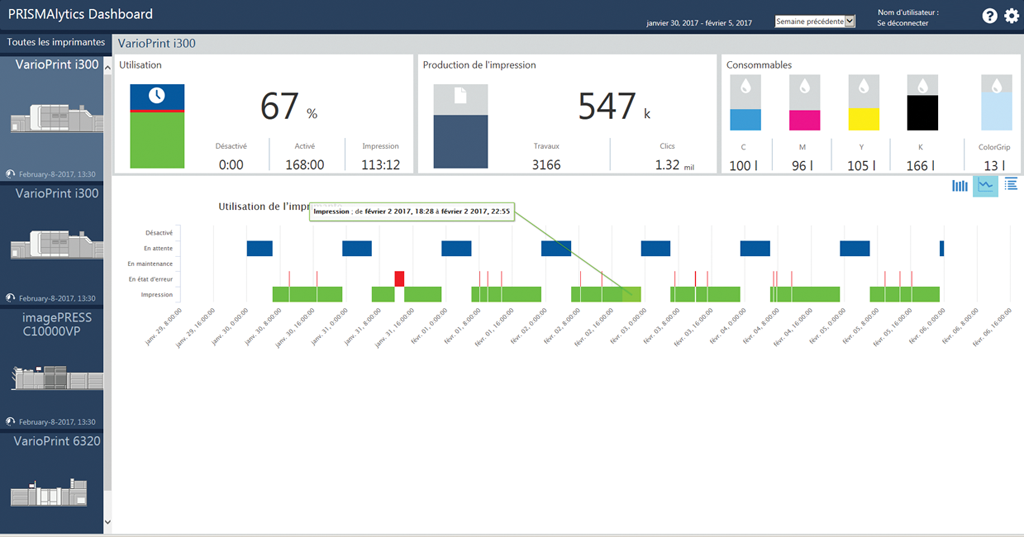

The [Chronologie] view shows the states the printer has been entered during the specified period. When you hover the diagram, you see when the printer entered and left a state. The following states are monitored and visible on the vertical axis.

• [Impression]

• [En maintenance]

• [En état d'erreur]

• [En attente ]

• [Désactivé]
