Show [Aikajana] view of a printer

The PRISMAlytics Dashboard [Aikajana] view shows the usage of a printer on a timeline. You can use this view to analyse printer events of the last 30 days.

Show the [Aikajana] view

1. Select a printer.

2. Select the [Aikajana] view.



3. Select the period that reflects the information you want to display.



Read the [Tulostimen käyttö] information

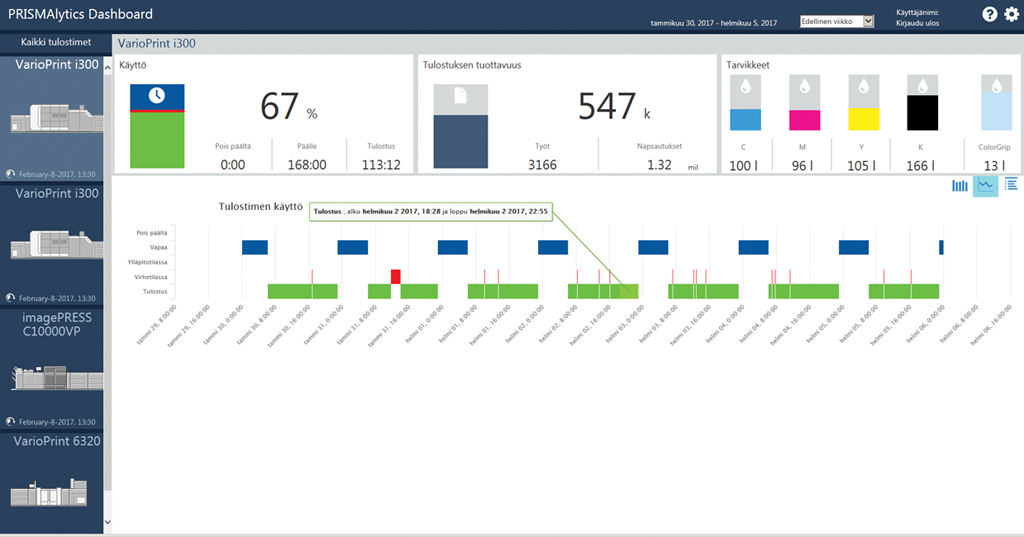

The [Aikajana] view shows the states the printer has been entered during the specified period. When you hover the diagram, you see when the printer entered and left a state. The following states are monitored and visible on the vertical axis.

• [Tulostus]

• [Ylläpitotilassa]

• [Virhetilassa]

• [Vapaa]

• [Pois päältä]
