Introduction

For every job that is finished a record is added to the account log file. You can download the file via a web page on your computer and check the properties and counters of your job.

  • A job is considered finished when it is completed successfully, it is canceled or deleted.

  • There is one active account log file (.ACL). The active account log file starts at 00:00 hours and is active for one day, then the file becomes inactive.

  • There can be multiple inactive account log files (.CSV). The inactive account log files are completed files.

Procedure

  1. Use an internet browser on your computer to open the printer web page.
  2. Type http://, the network name of your printer and the port number :8080.

    You can find the network name on the printer monitor in the tab [Settings] / [Network connection]. If the network name is ARIZONA7, then enter http://ARIZONA7:8080 in the browser address field.

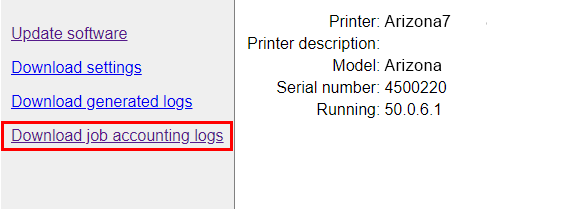

  3. On the printer web page that appears, choose [Download job accounting jobs] from the menu.

    A window opens with one or more accounting log files listed.

  4. Click on the preferred file.

    An.ACL file is the active account log file.

    .CSV files are the completed account log files.

    NOTE

    For more information on how to read the file, see the document: Accounting Interface on GRAPHIplaza.
