A PRISMAsync Remote Match cluster is a group of similar printers that you synchronize because they must share the same the media, color, and workflow configuration.
When you create a new cluster, you set up the cluster definition. This means that you:
Select the synchronization area: The synchronization area determines what part of the printer configuration must be synchronized.
Select the synchronization mode: The synchronization mode determines how the synchronization area must be synchronized.
Add the printers to the cluster: what printers belong to the cluster and what is their synchronization priority.

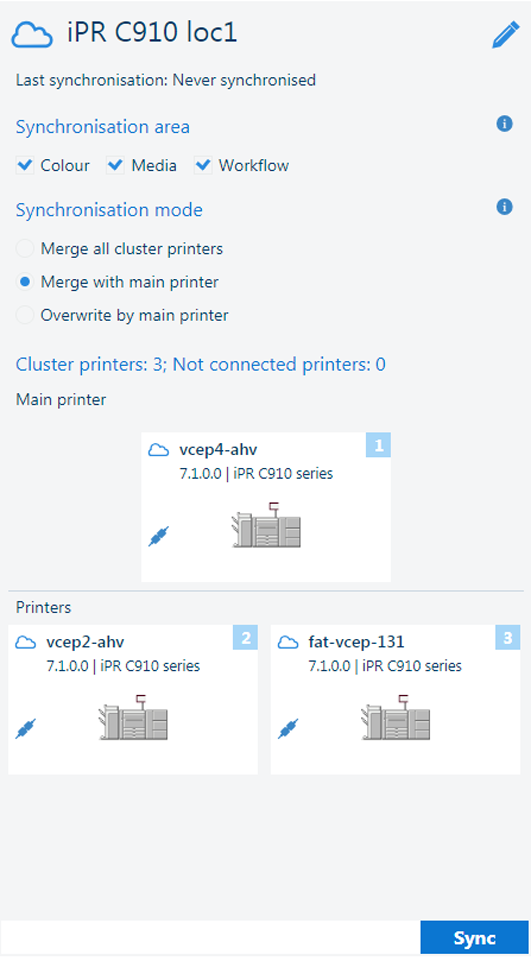

Example of a new cluster definition with a main printer |

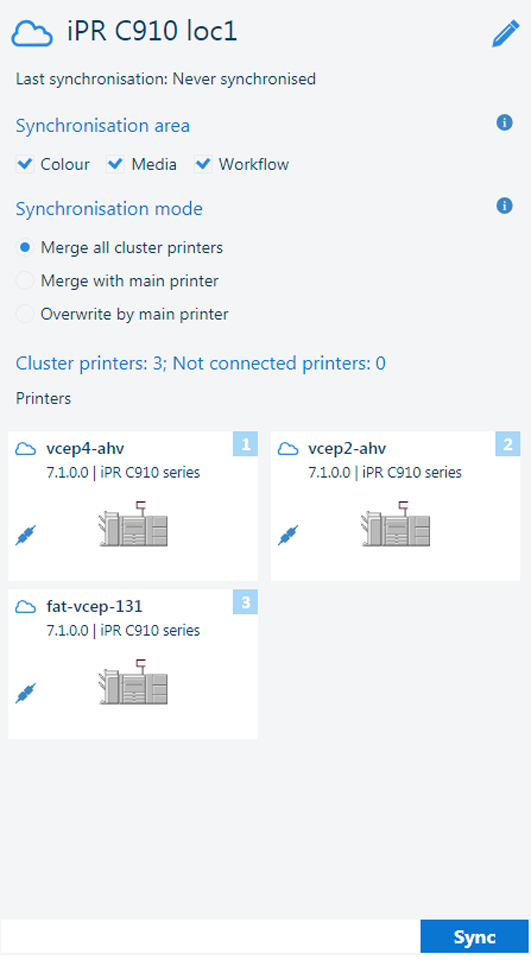

Example of a new cluster definition without a main printer |
PRISMAsync Remote Match maps cluster printers according to the selected synchronization mode.
For the [Merge with main printer ] and [Overwrite by main printer] modes, printer 1 is called the main printer. This printer is positioned at the top of the cluster.
For the [Merge all cluster printers] mode, printer 1 is positioned next to printer 2.
The main printer or printer 1 has the highest synchronization priority. The synchronization priority determines the overwrite behavior during a synchronization.
