The [Test report] app provides detailed information about the test result.
Overview of the [Test report] appYou can open the [Test report] app via [Validation results] app in two ways:
Select the test and click the [Open] button.

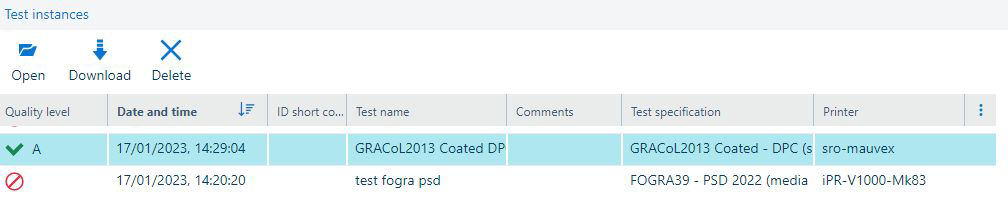

[Test instances] tableDouble-click the test.

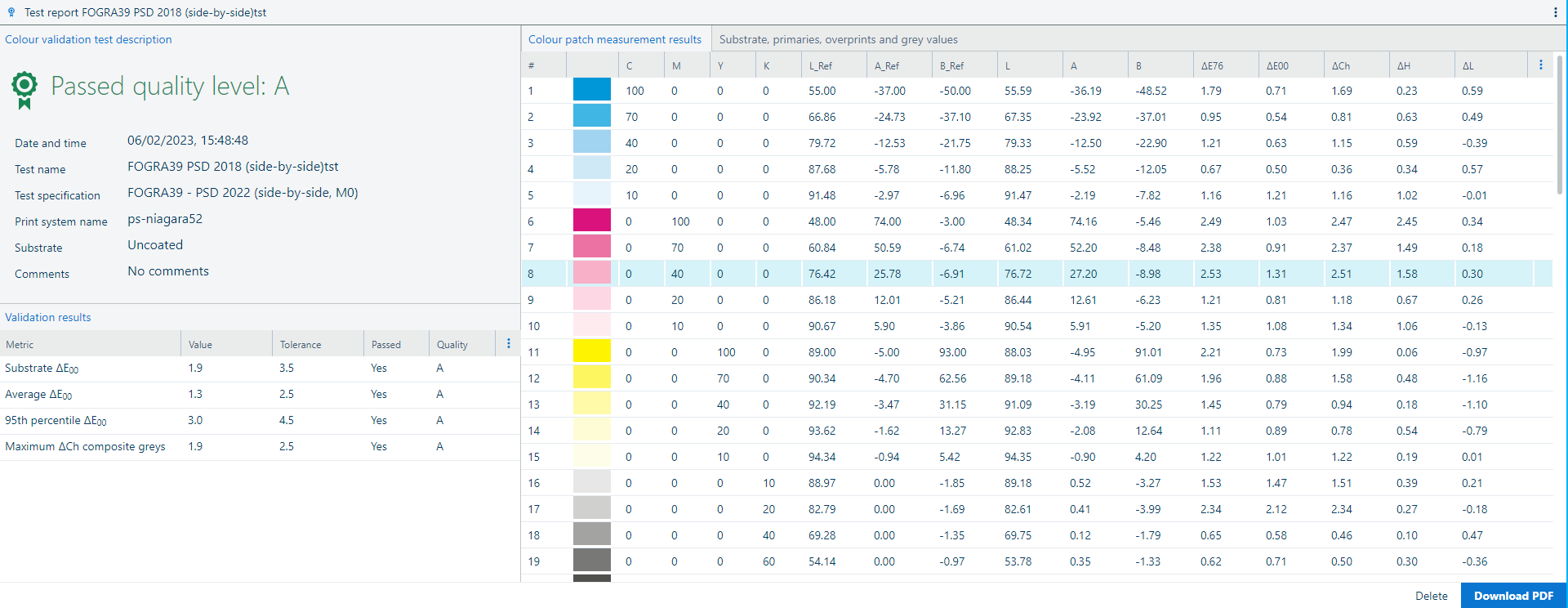

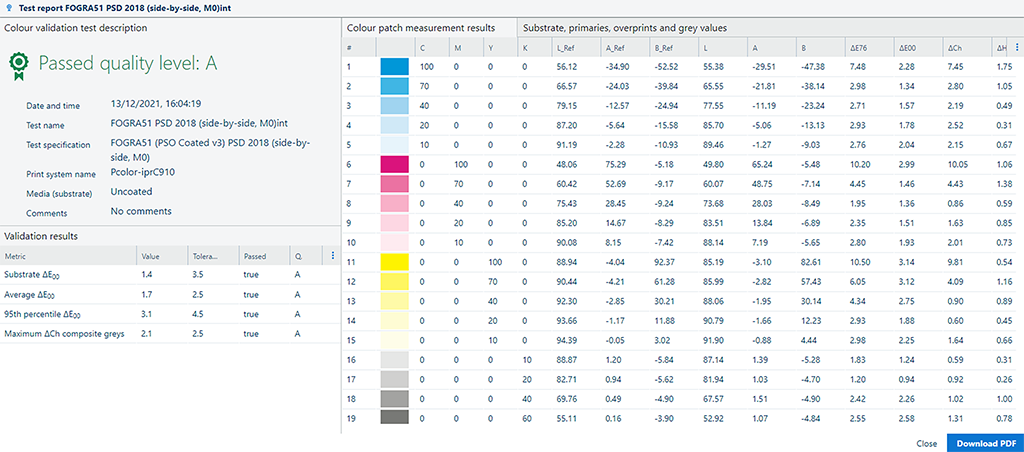

FOGRA test reportGeneral color validation test reports consist of four parts:
meta data: [Date and time], [Test name], [Test specification], [Print system name], [Substrate] and [Comments];
[Validation results]: metrics, their measured values, tolerance values, status (passed/failed) and quality level;
For failed tests, you will get pop-up with a link to the possible causes.
substrate, primaries, overprints and grey values;
color patch measurement results.
You can also download the test report as a PDF file.

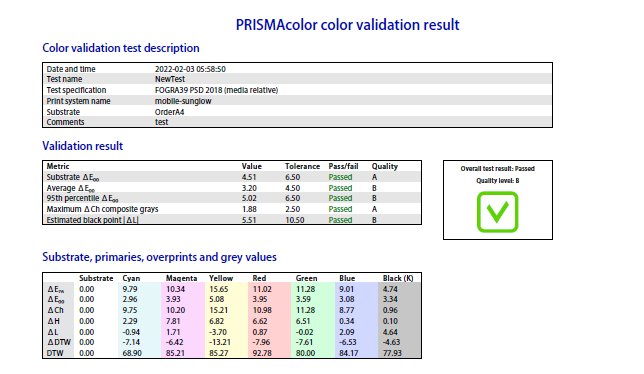

Test report as a PDF file

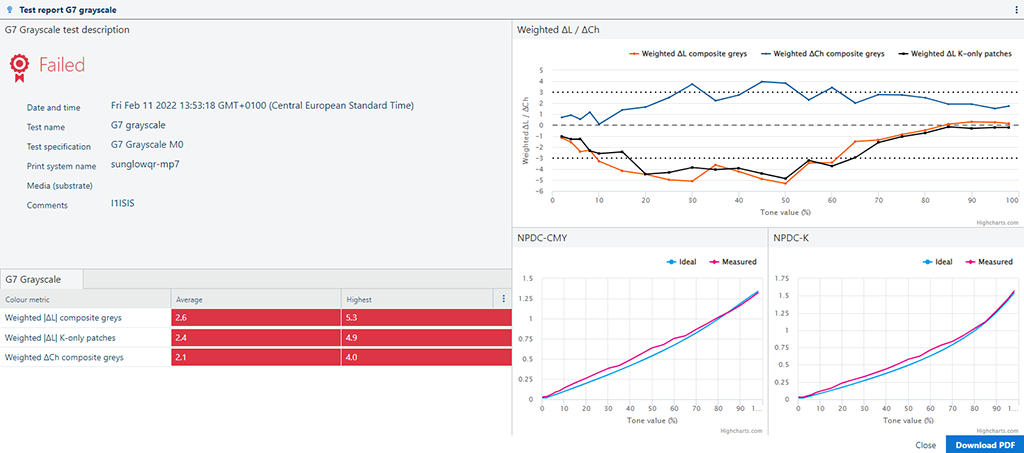

G7® verification reportThe G7® verification test reports consist of four parts:
meta data: [Date and time], [Test report], [Test specification], [Print system name], [Substrate] and [Comments];
[Validation results]: metrics, their average and highest measured values;
weighted ΔL and ΔCh values mapped along the tone value axis (0 - 100%);
reference and measured print density curves for black (K) and composite greys (CMY).
You can also download the test report as a PDF file.

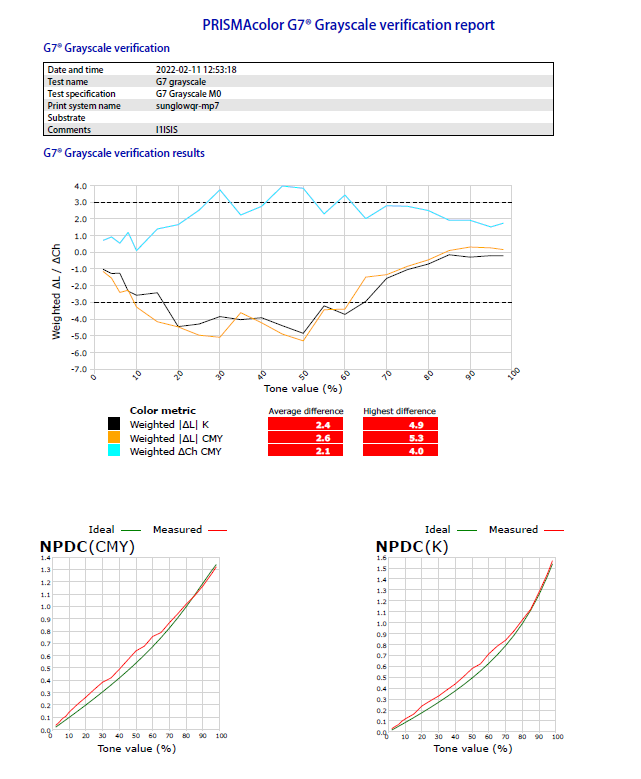

G7® verification test report as a PDF file
