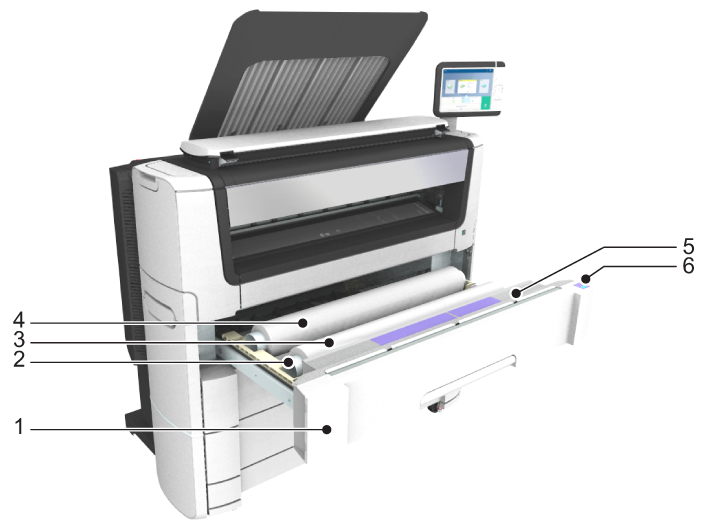

The media drawer

1

[media drawer] 

Media drawer that contains media roll 1 and 2. Second media drawer below that contains media roll 3 and 4. Optional third media drawer below contains media roll 5 and 6.

2

[roll holder] 

Carries the media roll

3

[media roll] 1

Media placed on roll holder in first position.

4

[media roll] 2

Media placed on roll holder in second position.

5

[roll loading station] 

Groove integrated behind the front cover of the media drawer, on which the media can be easily loaded.

6

[clean cut button] 

Button used to trim a strip of a new or damaged media roll.
