The mains switch is located on the short side of the printer that does not contain the UVgel box compartment. This switch cuts all power to the machine. This switch does not power off the user interface.
IMPORTANT
The printer must remain powered on to stay in optimal condition. Turning the power supply off may damage the printer.
|
1 |
Locate the mains switch on the short side of the printer. |
|
|
2 |

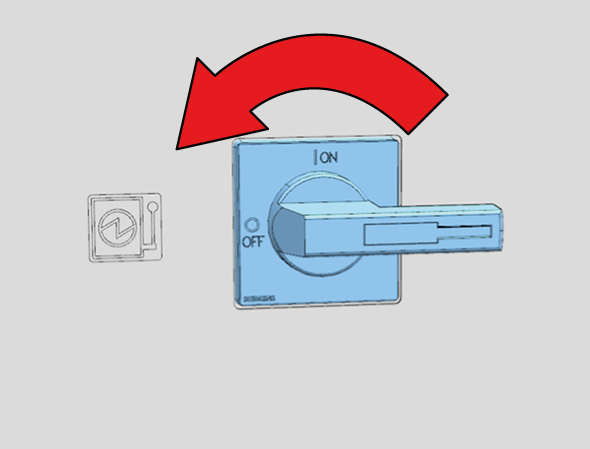

Turn the button counterclockwise to turn the power supply off. The user interface remains powered on. |
|
When the power is switched off, all the pneumatic components are depressurized by the normal pressure relief device, except for the components listed below. These can be depressurized by reducing the air pressure to zero via the Reducing valve Z-MOTION.
Parts that are not depressurrized by the normal pressure relief device are:
Reducing valve – Z-MOTION.
FBU-B13. = FBU_Z_HEIGHT_PRESS_SE
CYLINDER, PNEU – Z-MOTION -1 and -2
