Configure the PRISMAelevate XL ALPS Engine printer

Procedure

First install a PRISMAelevate XL printer in Onyx Thrive, including the media profiles for Alto, Alto-Plus and Brila. There are printer drivers available for the Arizona 1380 GTF/XTF and for the Arizona 2380 GTF/XTF.
Check the web site graphiPLAZA for the downloads.

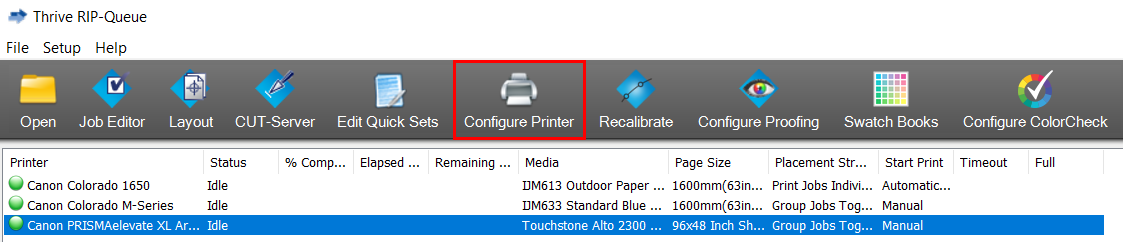

Open Onyx Thrive, select your printer and click on [Configure Printer].
Click [OK].

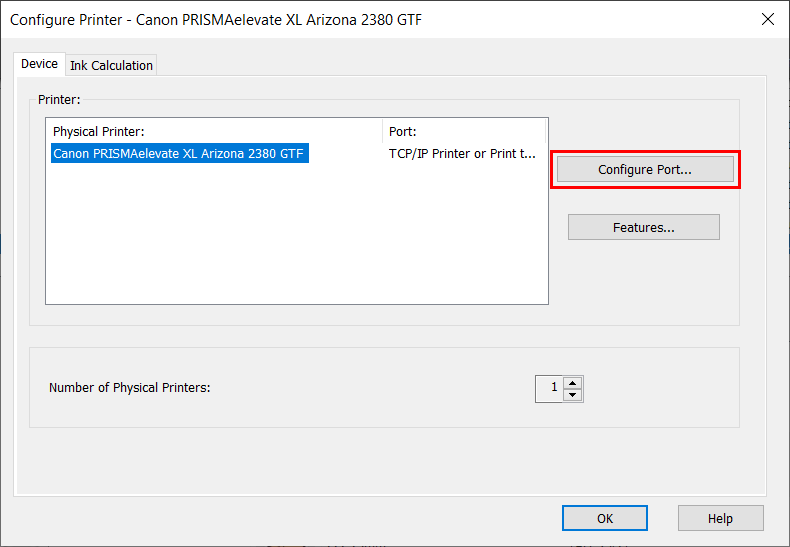

Select the [Device] tab and click on [Configure Port].

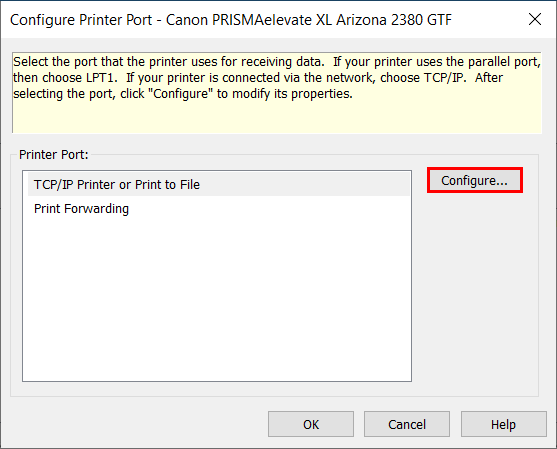

To configure the printer port select 'TCP/IP Printer or Print to File' and click on [Configure].

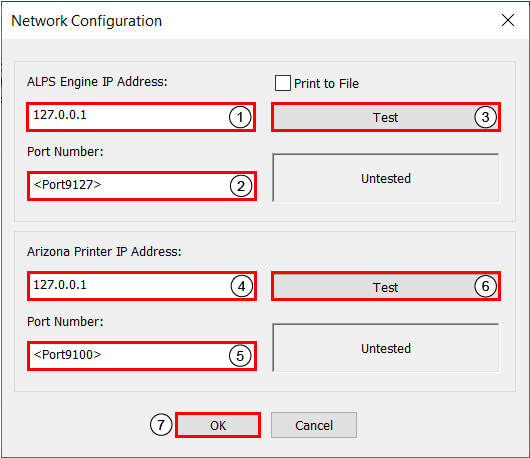

Enter the configuration settings:
1. Enter the IP address of the computer on which the PRISMAelevate XL ALPS Engine has been installed.
2. Enter the port number that you have declared during the installation of the PRISMAelevate XL ALPS Engine.

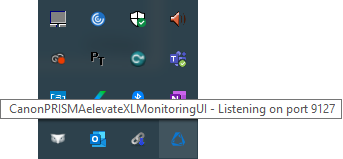

  You can move your mouse over the PRISMAelevate XL icon in your system tray to check the port number.
3. Test the IP address.
4. Enter the IP address of the printer.
5. Enter the input port number of your printer (by default 9100).
6. Test the IP address.

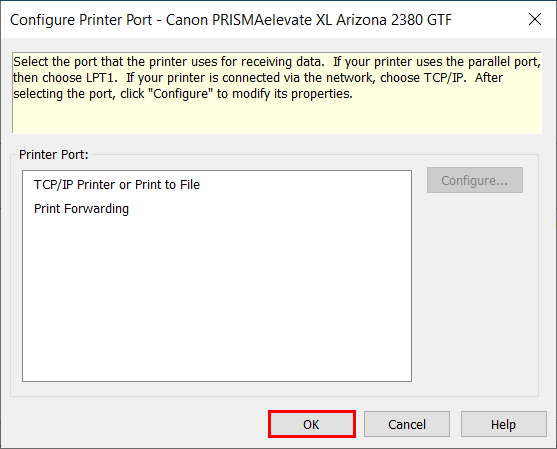

7. Click on [OK].
Next, you need to go to the Printer Channel Configuration. Click on [OK].
Click on [OK].

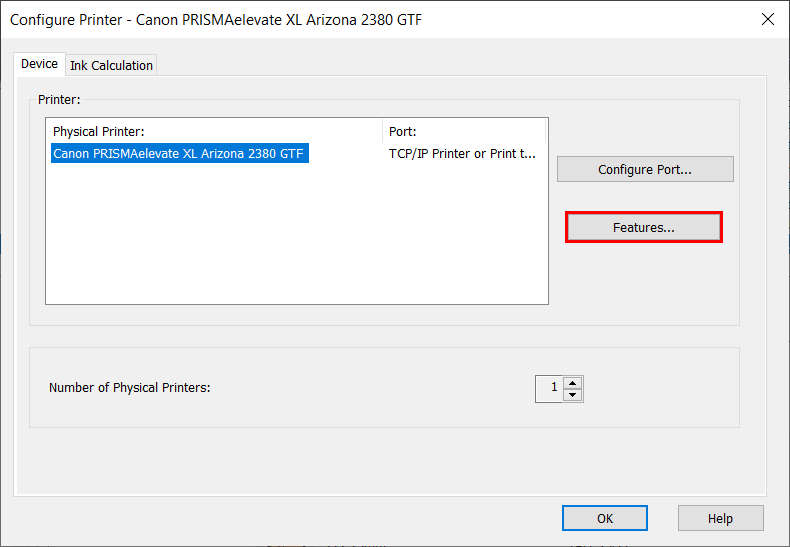

Click on [Features].
Select 'Printer Channel Configuration' and click on [Configure].
Select the correct Printer Channel Configuration and click on [OK].
Click on [Done].
Click on [OK].

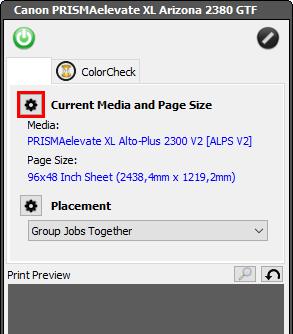

Click on the button indicated below to change the media settings.

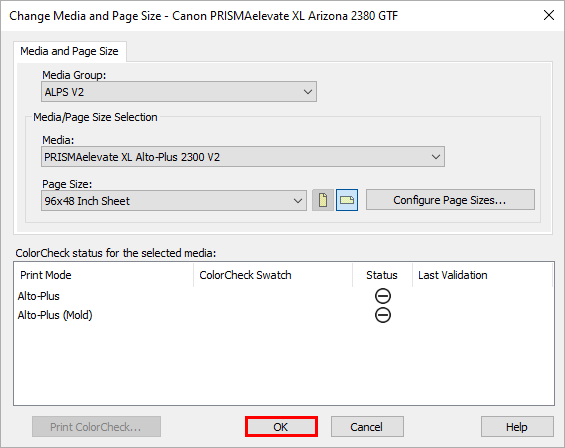

Click on [OK].

NOTE
PRISMAelevate XL media profiles can have different names.
