Start manual maintenance

Introduction

Start manual maintenance in case of quality issues.

You can clean the maintenance station, wiper, clean wall, matrix plate and you can print a nozzle classification chart to optimize the nozzles.

On the operator panel tap on the [Tools] icon on the right.

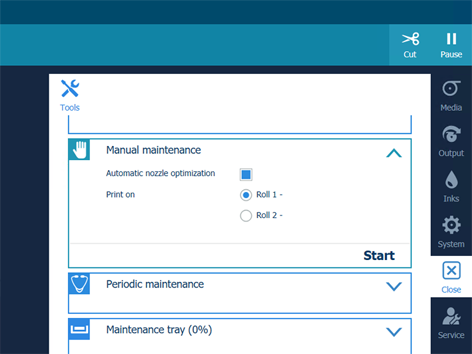

Tap on [Manual maintenance] .
When you want to print a nozzle classification chart to optimize the nozzles:
1. Make sure [Automatic nozzle optimization] is selected.
2. Select a roll to print the nozzle classification chart on.
NOTE
The nozzle classification chart can only be printed on smooth, white, opaque, non-reflective media. Any other media will deteriorate the optimization.
Tap on [Start] .

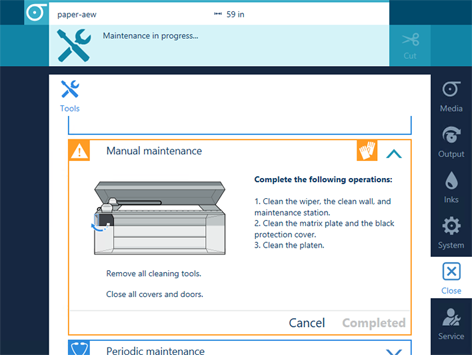

Perform any or all of the listed actions:
IMPORTANT
Wait until the [Completed] button turns black and the printhead carriage is in maintenance position, before you open the top cover and start cleaning.
