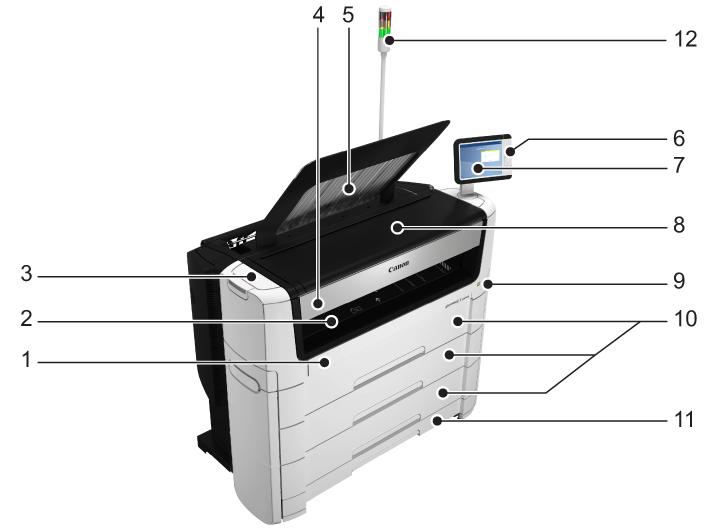

Nr |
Component |
Description / Function |
|---|---|---|
|
1 |
[lower front cover] |
Located at the front, used for error recovery. |
|
2 |
[media bypass] |
To manually feed cut-sheets up to 36" width. |
|
3 |
[toner compartment] |
Compartment to refill toner. |
|
4 |
[Easy Access cover] |
Cover that gives easy access for servicing the printer. |
|
5 |
[top delivery tray] |
Delivery tray that collects the printed sheets. |
|
6 |
[USB port] |
USB connector to use a USB mass storage device to print from or to scan to. |
|
7 |
[ClearConnect multi-touch user panel] |
The ClearConnect user panel allows the user to start copy, scan, or print jobs, and to monitor the system and the job status. |
|
8 |
[printer top cover] |
Only available in printer-only version. |
|
9 |
[on/off button] |
Button to start or shut down the printer. |
|
10 |
[media drawer] |
Media drawer that contains media roll 1 and 2. Optional media drawer that contains media roll 3 and 4. |
|
11 |
[cut sheet tray ] |
Optional tray that contains cut sheets. |
|
12 |
[operator attention light] |
Light that gives feedback on the status of the printer |
