Print an application with [FLXfinish+ layers]

Introduction

With the [FLXfinish+ layers] recipe you can print a job that is printed partly in matte and partly in gloss.

The gloss mask must be present as a separate Gloss layer in the PDF.

NOTE

In order to use FLXfinish+ applications, a CMYKSS profile with a FLXfinish+ print mode is needed.

Procedure

  1. Launch the ONYX Thrive RIP Queue.
  2. Open a PDF that you want to print using the [FLXfinish+ layers] recipe.
    NOTE

    The PDF must contain 2 layers, one layer named: 'Artwork' and one layer named: 'Gloss'.

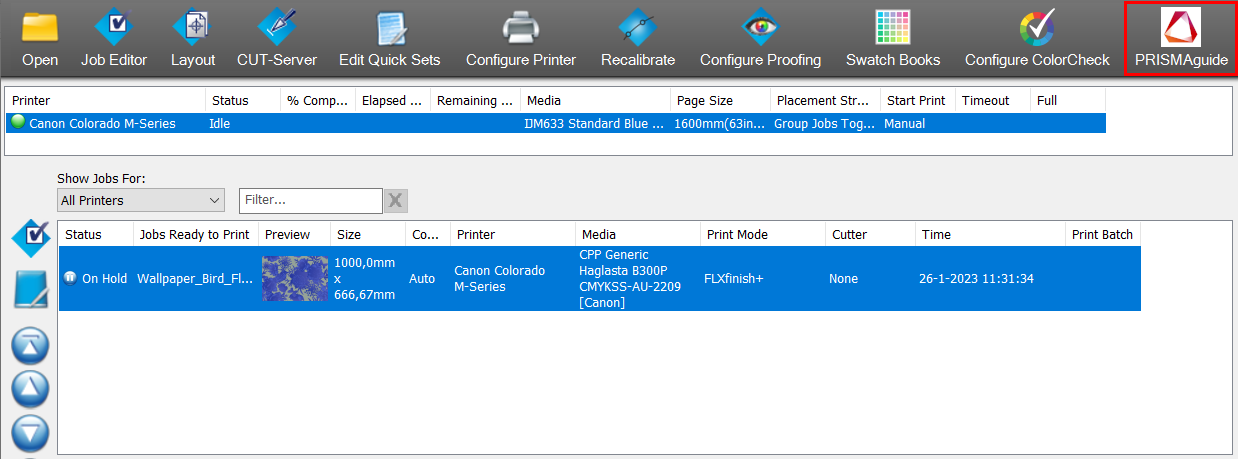

  3. Select the PDF and click on the [PRISMAguide] button.
  4. Select [FLXfinish+ layers] recipe.

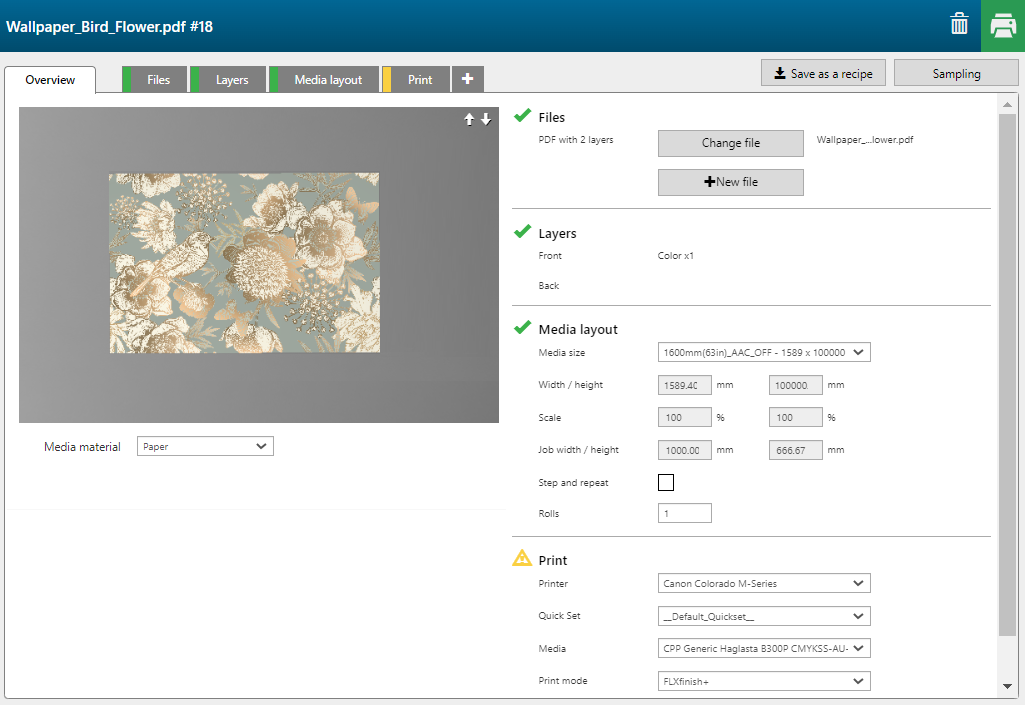

    The [Overview] tab opens.

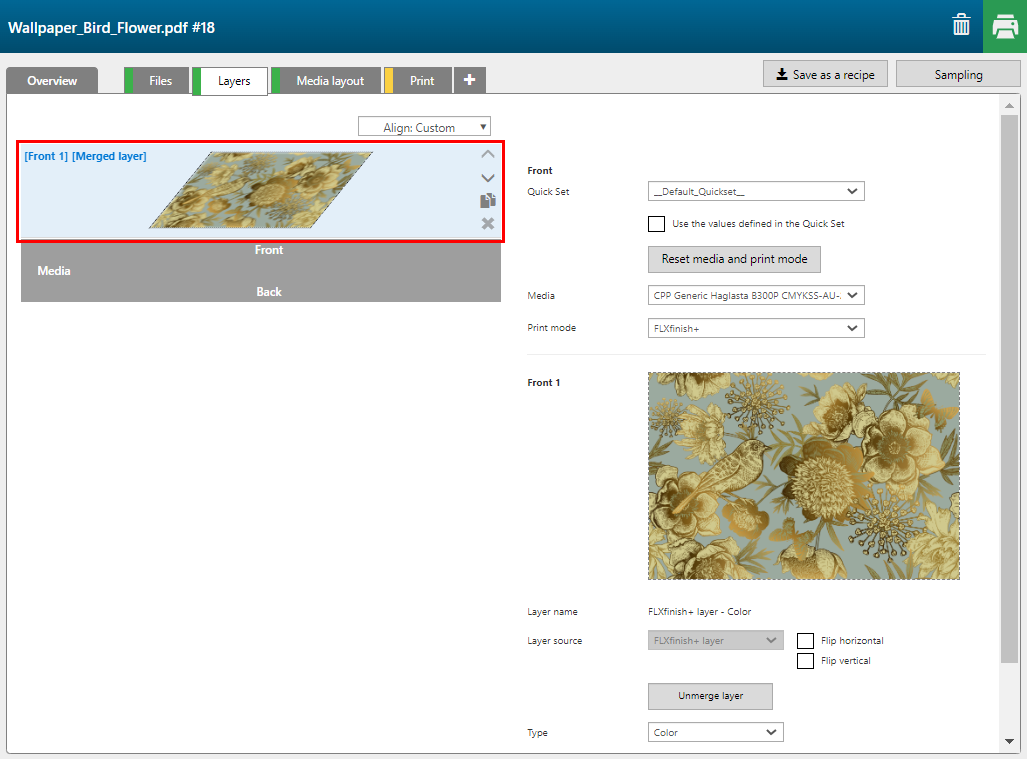

  5. Open the [Layers] tab.

    The recipe automatically assigns the correct settings per layer and merges the two layers.

    NOTE

    A FLXfinish+ application can only have one [Front] layer when you submit to ONYX Thrive .

    If you want to check the separate layers, click the button [Unmerge layer].

    Layer

    [Layer source]

    [Type]

    Remark

    [Front] 2

    PDF with 2 layers - Gloss

    [Image area mask]

    [Color]: [Gloss]

    The part of the image that will be printed in [Color].

    [Front] 1

    PDF with 2 layers - Artwork

    [Color]

    The image is printed in CMYK.

    NOTE

    Do not forget to merge the layers again. Select [Front] 1 and [Front] 2 layer (hold down the ctrl key) and click [Merge selected layers].

  6. Open the [Print] tab and check the settings.
  7. Click on the [Print] button to submit the job to the ONYX Thrive RIP Queue.
