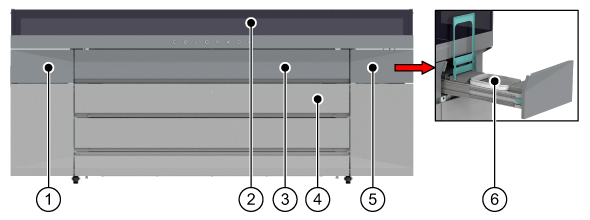

From the media input side you can load media, open the top cover, get access to the maintenance tray and printhead maintenance.
|
Number |
Component |
|---|---|
|
1 |
Manual maintenance door |
|
2 |
Top cover |
|
3 |
Media cover |
|
4 |
Media drawer |
|
5 |
Maintenance drawer |
|
6 |
Maintenance tray |
NOTE
The Fotoba JRL170 is an example of an external media input solution for the Colorado 1650
|
Number |
Component |
|---|---|
|
1 |
Media input unit |
|
2 |
The Fotoba JRL170 is an example of an external media input solution for the Colorado 1650 |
