Print a [Day/night] application

Introduction

With the [Day/night] recipe you can create an application for a light box. During the day the light is off. During the night the light is on.

Procedure

  1. Open PRISMAguide XL Engine via the shortcut on your desktop or start menu.
  2. Click on [New job]
  3. Select the [Day/night] recipe.
  4. The [Overview] tab opens.

    Check / select the settings for:

    • [Media size]

    • [Preset] 

    • [Media]

    • [Resolution]

    • [Mode]

  5. Click on [Select file].
  6. Open a PDF that you want to print using the [Day/night] recipe.
    NOTE

    Your PDF must contain one image that will be used for the Day image and the Night image.

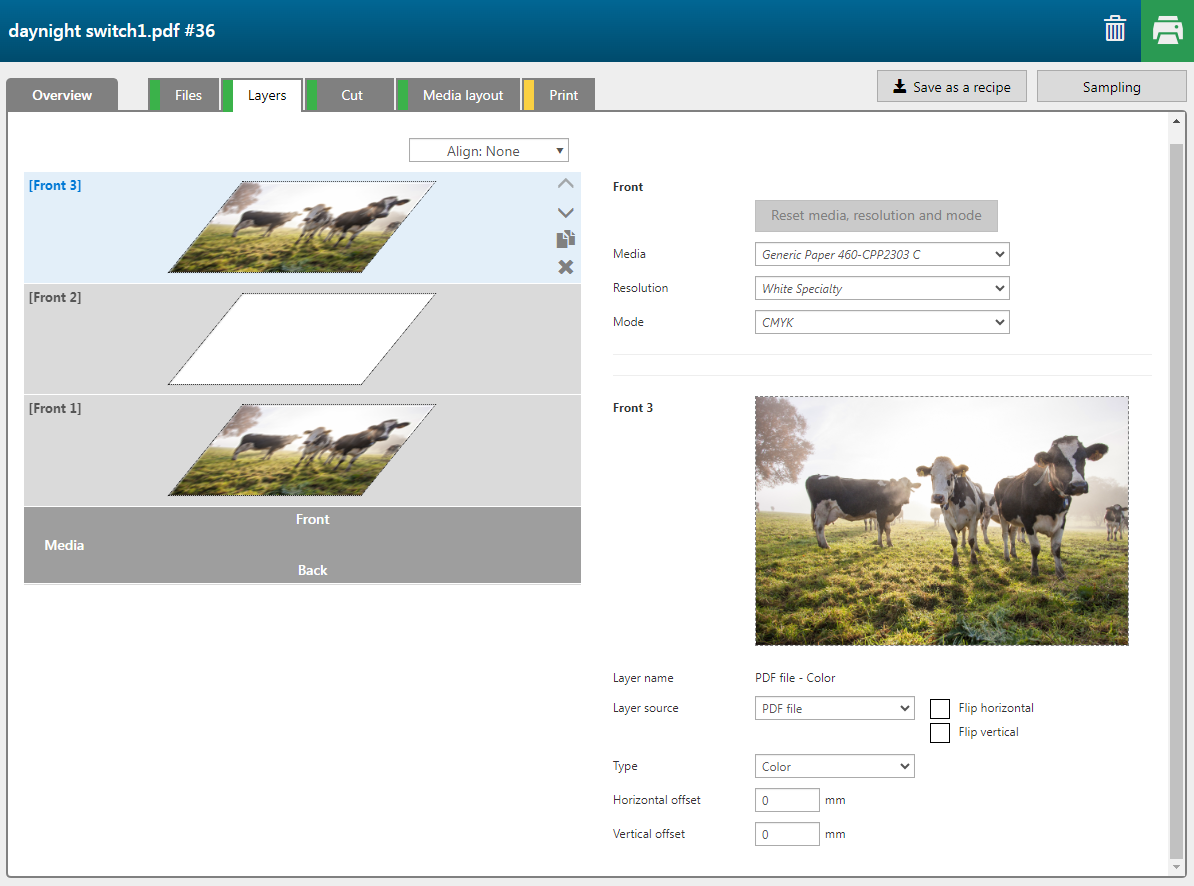

  7. Open the [Layers] tab.

    The recipe automatically assigns the correct settings per layer.

    Layer

    [Layer source]

    [Type]

    Remark

    [Front] 3

    PDF file

    [Color]

    The image is printed in CMYK.

    [Front] 2

    PDF file

    [Bounding box mask]

    [Color]: [White]

    The complete image (rectangle) is printed in white.

    [Front] 1

    PDF file

    [Color]

    The image is printed in CMYK.

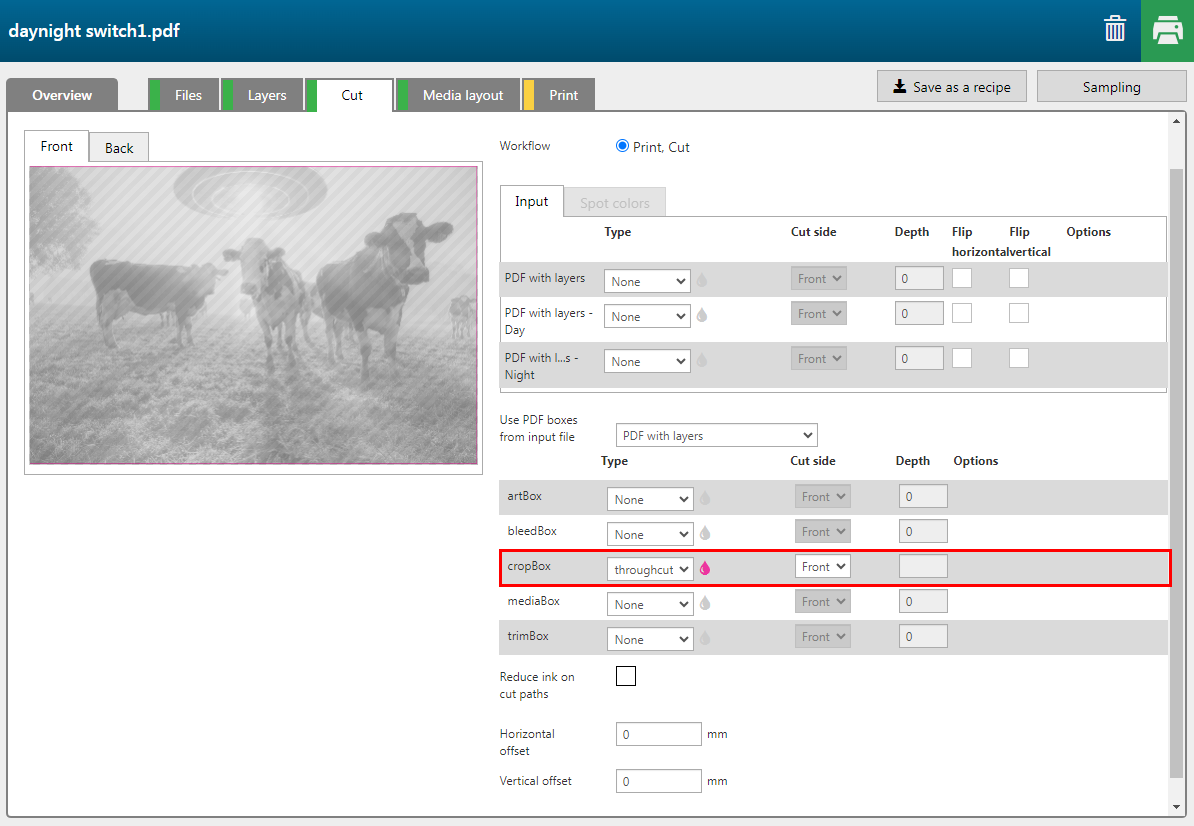

  8. Select the [Cut] tab.

    The [CropBox] is defined as [throughcut] path.

  9. Open the [Print] tab and check the settings.
  10. Click on the [Print] button to submit the job.
Parent topic:
Default recipes
