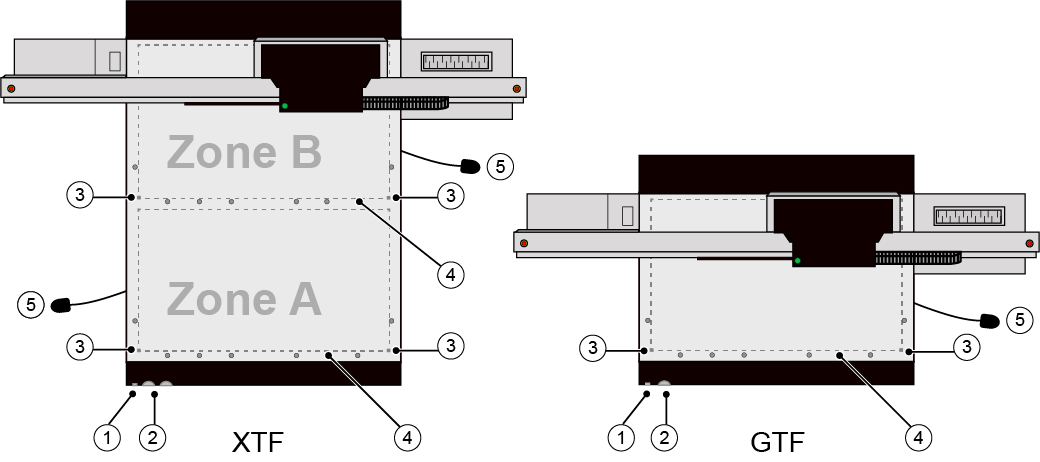

The table layout

1

Print Start Button

2

Vacuum Gauges

3

Reference points

There is a left and a right reference point for every zone and represents the 0,0 point. The reference points are part of the table rulers that are printed directly on the table.

4

Registration pins

See Media Registration how to manage the registration pins.

5

Vacuum Table Foot Pedal

The vacuum foot pedal toggles the table vacuum on or off. A long press, toggles the registration pins up or down.

NOTE

Optional: Additional vacuum pedals can be installed to prevent walking around the machine.
