Define finisher adjustments

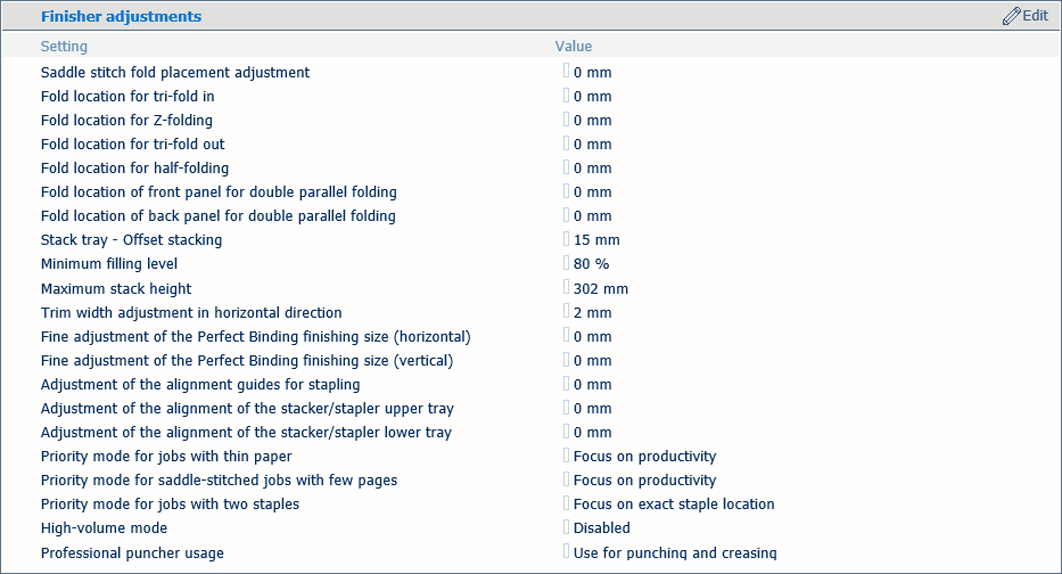

Go to the finisher adjustments

1. Open the Settings Editor and go to: [Preferences]  → [System adjustments] .



Adjust the location of the fold in booklets

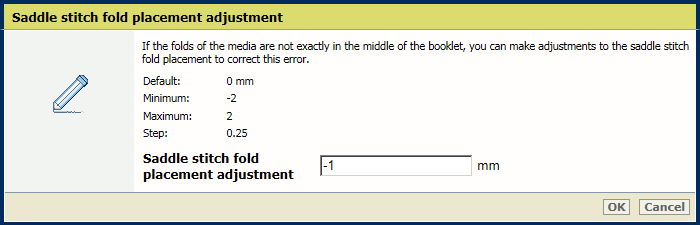

1. Go to [Saddle stitch fold placement adjustment].

2. Adjust the location.



3. Click [OK].

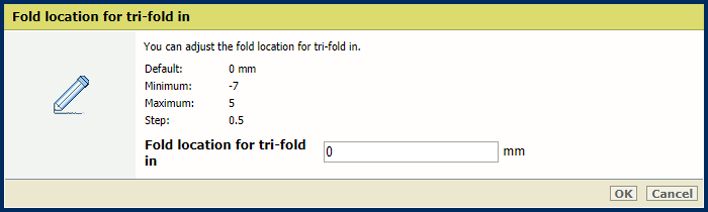

Adjust fold locations

1. Go to the folding option you want to adjust:

   • [Fold location for tri-fold in]

   • [Fold location for Z-folding]

   • [Fold location for tri-fold out]

   • [Fold location for half-folding]

   • [Fold location of front panel for double parallel folding]

   • [Fold location of back panel for double parallel folding]

2. Define the adjustment value.



3. Click [OK].

Enable offset stacking in the stack tray

1. Go to [Stack tray - Offset stacking].

2. Define the offset stacking value.



3. Click [OK].

Define the minimum filling level of the stackers

1. Go to [Minimum filling level].

2. Define the level.



3. Click [OK].

Define the maximum stack height of the stackers

1. Go to [Maximum stack height].

2. Define the height.



3. Click [OK].

Adjust the trim width of the stacker/stapler

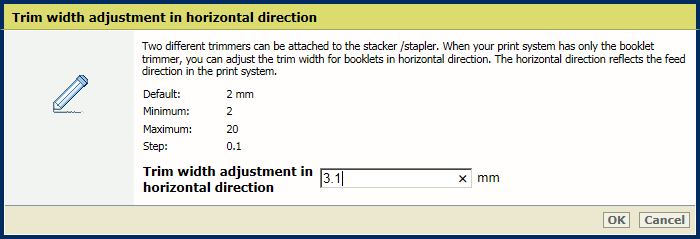

1. Go to [Trim width adjustment in horizontal direction].

2. Define the width.



3. Click [OK].

Adjust the trimming size of the Perfect Binder

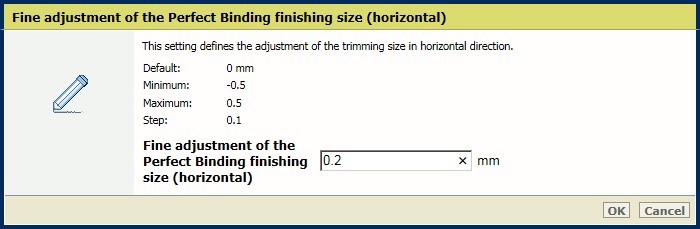

1. Go to [Fine adjustment of the Perfect Binding finishing size (horizontal)].

2. Adjust the horizontal size.

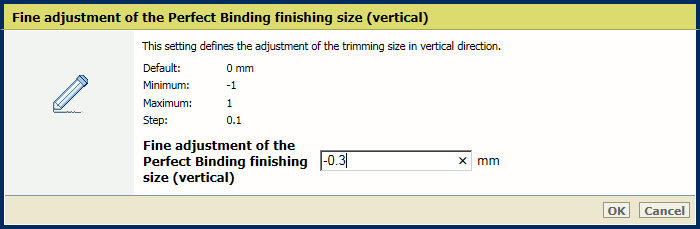

3. Go to [Fine adjustment of the Perfect Binding finishing size (vertical)].

4. Adjust the vertical size.



5. Click [OK].

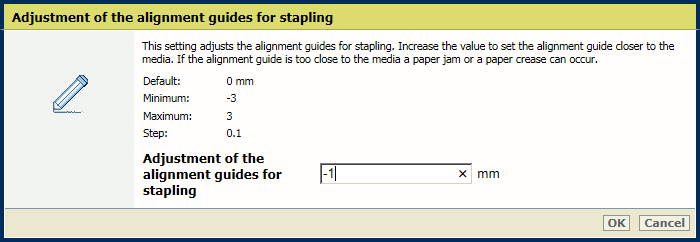

Adjust the alignment guides for stapling

1. Go to [Adjustment of the alignment guides for stapling].

2. Define the width.



3. Click [OK].

Adjust the alignment of the stacker/stapler trays

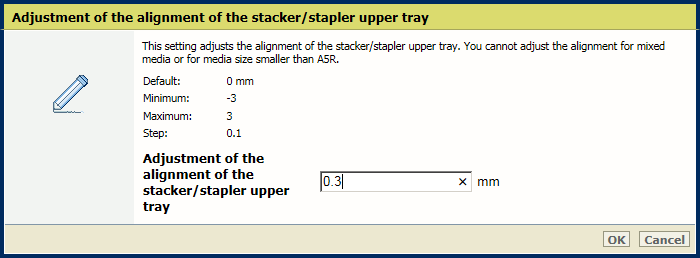

1. Go to [Adjustment of the alignment of the stacker/stapler upper tray].

2. Adjust the alignment for the upper tray.



3. Go to [Adjustment of the alignment of the stacker/stapler lower tray].

4. Adjust the alignment for the lower tray.



5. Click [OK].

Productivity or sheet alignment for jobs with thin paper

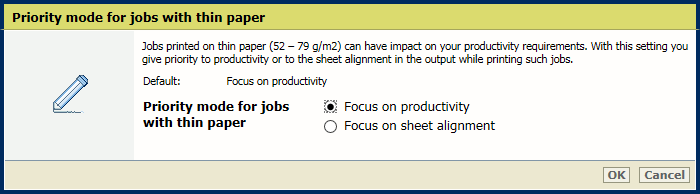

1. Go to [Priority mode for jobs with thin paper].

2. Select the priority.



3. Click [OK].

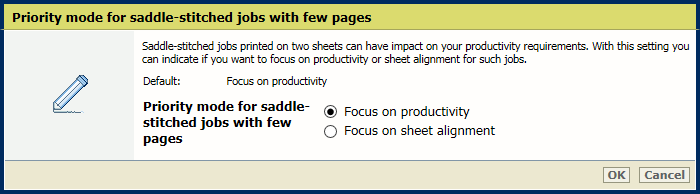

Productivity or sheet alignment for saddle-stitched jobs with few pages

1. Go to [Priority mode for saddle-stitched jobs with few pages].

2. Select the priority.



3. Click [OK].

Productivity or correct staple position for jobs with two staples

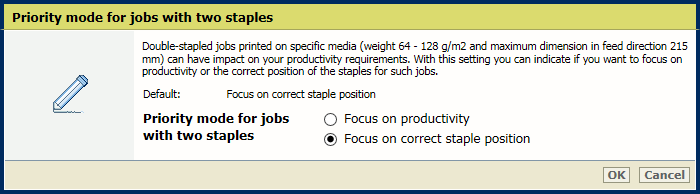

1. Go to [Priority mode for jobs with two staples].

2. Select the priority.



3. Click [OK].

Enable high-volume stacking for the stacker/stapler or the connected trimmer.

1. Go to [High-volume mode].

2. Select the priority.



3. Click [OK].

Define the usage of the professional puncher

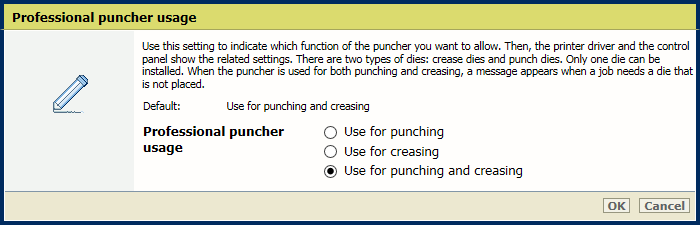

1. Go to [Professional puncher usage].

2. Define the usage.



3. Click [OK].
