PRISMAguide XL helps you to build and preview print designs using pre-defined application recipes. You can also import new recipes created in PRISMAguide XL Engine. The use of the PRISMAguide XL recipes enables you to re-use complex designs for similar jobs. This eliminates possible mistakes, reprints and waste.
NOTE
For more information about creating new recipes, go to PRISMAguide XL Engine Help.
See Recipe management, when you want to import new recipes.

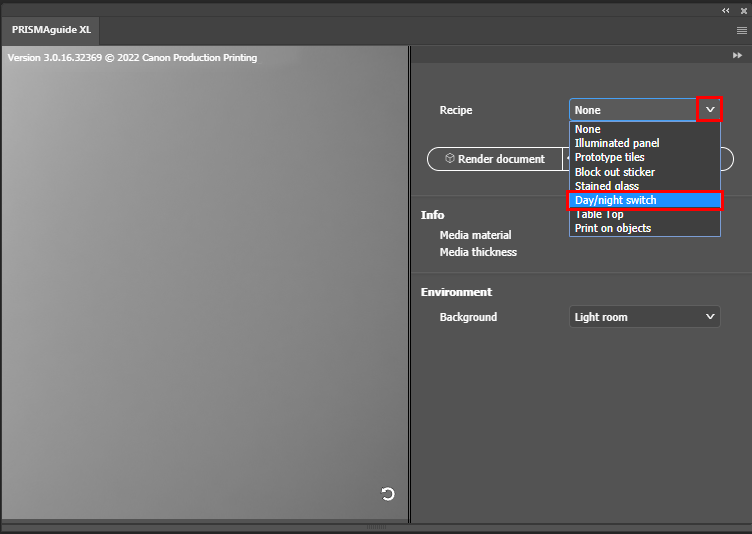

This workflow uses the pre-defined recipe [Day/night switch].
Create a [Day/night switch] application when you want your image to be displayed differently during the day and at night, when illuminated from behind. A [Day/night switch] application is printed on the side of the media that is going to be illuminated at night.
Select [Window] -> [Extensions] ->PRISMAguide XL
NOTE
When you use the recipes in Adobe Photoshop the design assets are defined as group, and the design assets in Adobe Illustrator are defined as layer.

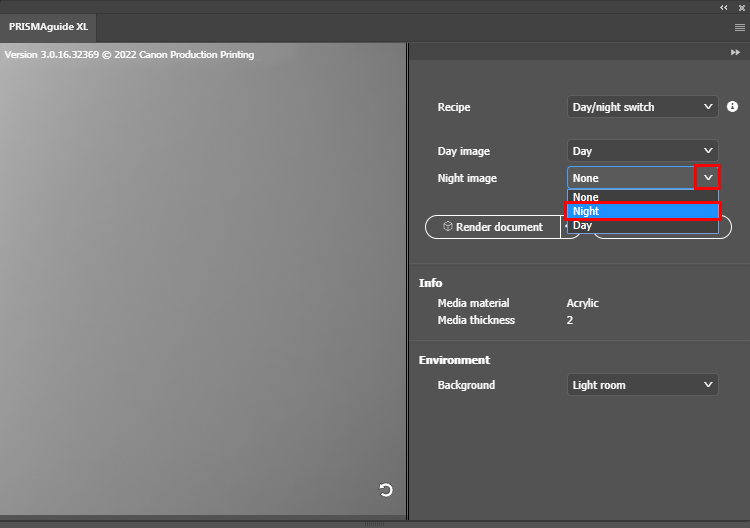

For the [Day/night switch] recipe two layers/groups must be present in your design.
Day image
A color image for daylight view
Night mask
An image to selectively block the back light
NOTE
Only the first art board is exported to your print-ready PDF.
NOTE
Recipes can add locked elements to your design and can change the size of your art board. When you use such a recipe, resize your design to the art board. For the right use of the recipe it is necessary to leave the layers unchanged. Do not unlock, move or remove content within the locked layers/groups. However you can change the order of the layers/groups.

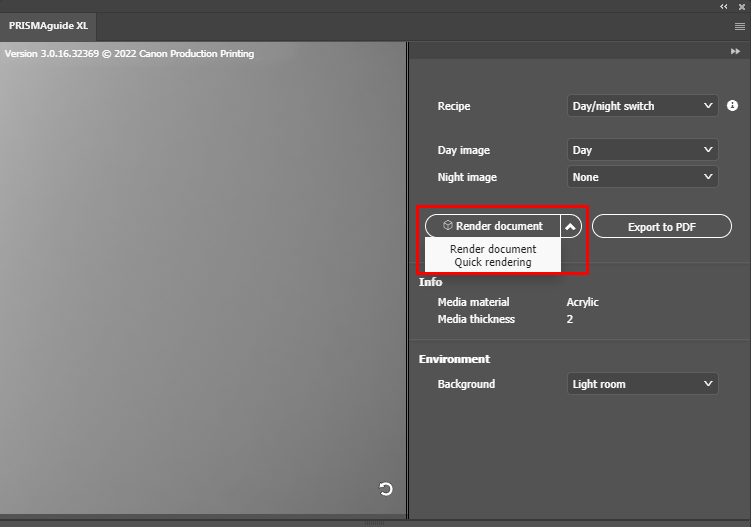

To generate or update the preview of your design you can select one of the following options:
Select [Render document] to render the complete artwork.
Select [Quick rendering] to render the document in a lower resolution in order to speed up the rendering process.
You can rotate, shift, or zoom in and out on the preview as follows:
Rotate: click and hold the left mouse button.
Shift: click and hold the right mouse button.
Zoom in and out: rotate the mouse wheel.

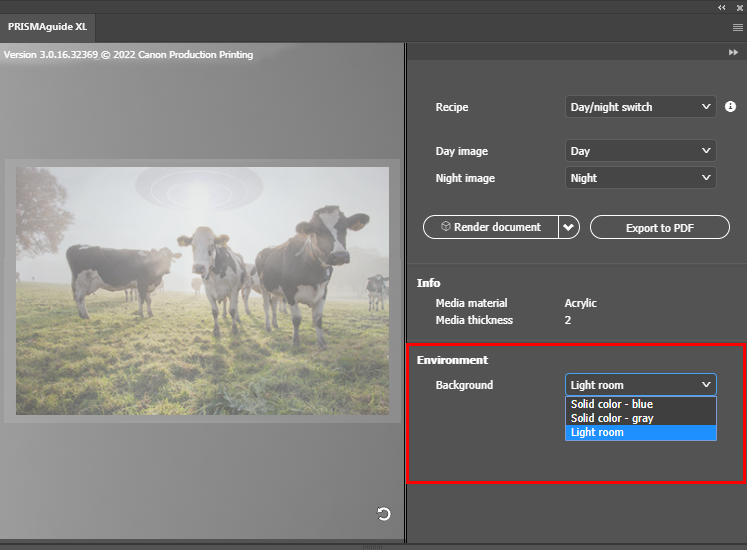

In the environment section you can choose a different background for the preview.
Click the refresh button
in the bottom right corner of the preview screen if you want to reset the preview.
Click [Render document] in the PRISMAguide XL panel to check your design again.

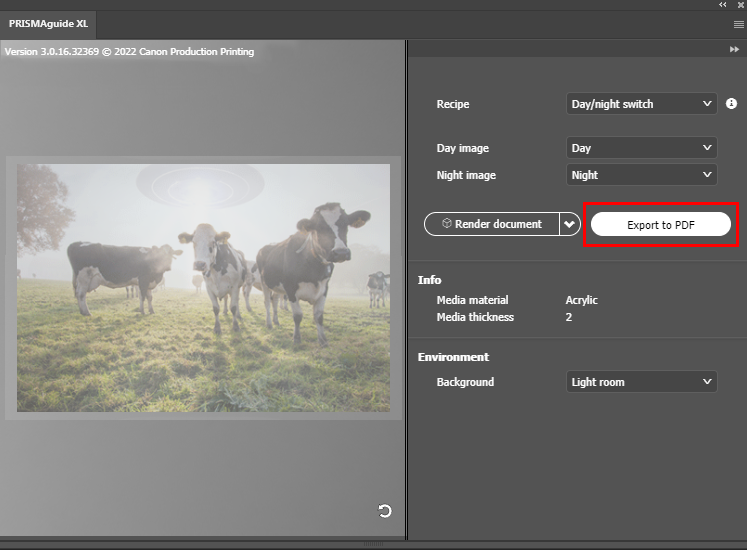

Click on [Export to PDF] to export your design as a print-ready PDF.
NOTE
In Adobe Photoshop the PDF is exported as multi-page PDF. In Adobe Illustrator the PDF is exported as multi-layer PDF.
