This topic describes the replacement of containers in the ink cabinet.
The dashboard indicates when you must prepare the replacement of an empty container. (Filling levels of supplies and waste)
|
One of the containers (ink, PML, or ColorGrip liquid) is empty. To know which container is empty, touch the empty container symbol to go to the [Supplies] pane. |
|||
|
|
|
The total supply of one or more liquids is nearly used up. |
|
|
|
|
||
|
|
|
The total supply of one or more liquids is used up. An action required screen appears and shows how to replace the empty container. |
|
|
|
|
||
To learn how the print system processes ink, see Ink, ColorGrip and maintenance liquid supplies in the printer.
Location of the ink cabinet
NOTE
In order to keep your hands clean, it is advised to use nitrile gloves when you work with ink, ColorGrip, PML, or SU70. For details, see the related material safety data sheets (Learn about printer maintenance).
Inks, ColorGrip PML and/or SU70 contain 1,2-Benzisothiazol-3(2H)-one. From the point of view of occupational health and safety, it is not recommended that people who are sensitive to chemicals (e.g., people with asthma) work with ink or chemicals.
Keep full containers tightly closed.
When you spill any liquid, wipe up the drops with disposable towels and transfer the used towels to a sealable container appropriate for disposal.
Take a full container and place the container next to the ink cabinet.
The instruction video for this maintenance action is available, see Replace a container in the ink cabinet.
|
Action |
|||
|---|---|---|---|
|
1 |
Open the doors of the ink cabinet. |
||
|

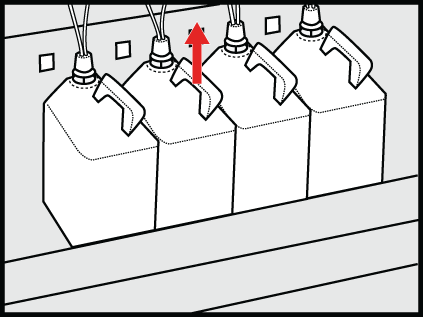

2 |
|
|
|
|
3 |

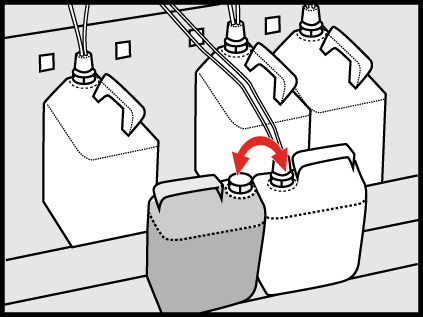

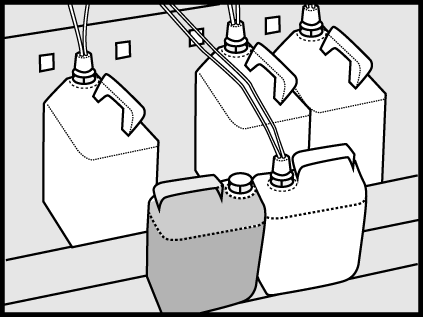

Unscrew, swap, and fasten the caps of both containers. |
|
|
|
4 |
Place the full container in the ink cabinet. |
|
|
|
5 |
Press the green button to confirm that you placed a full container. The LED blinks slowly for about 10 seconds while the RFID tag of the container is read. Then the LED remains on. NOTE
When the LED continues to blink fast, there is important information that you need to read on the control panel. |
|
|
|
6 |
Close the doors of the ink cabinet. |
||
The container package contains a sticker. Use this sticker on an empty ink container to reuse as a waste container. Place the sticker over the present sticker.
